Watch PLC Ladder Logic Execute in Real Time!

Name: Watch PLC Ladder Logic Execute in Real Time! | Open Video
Uploaded: 2026-07-08T11:53:26+00:00
Duration: 1 min 40 s

0:00
Now that we've verified all our input
0:01
wiring is correct, let's run the program
0:03
and watch the ladder logic execute. Step
0:06
one, put the PLC in run mode. Turn the
0:08
CPU selector switch to the run position.
0:10
The run LED on the CPU should illuminate
0:13
green.
0:14
Step two, enable monitoring in the
0:15
ladder editor. Ensure you click the
0:17
monitor icon in the task window toolbar.
0:20
Your ladder logic will now show
0:22
real-time states with green ON and red
0:25
OFF indicators. Step three, open data
0:27
view IO. Keep the data view panel open
0:29
so you can see the tag values change in
0:31
real-time alongside the ladder logic.
0:34

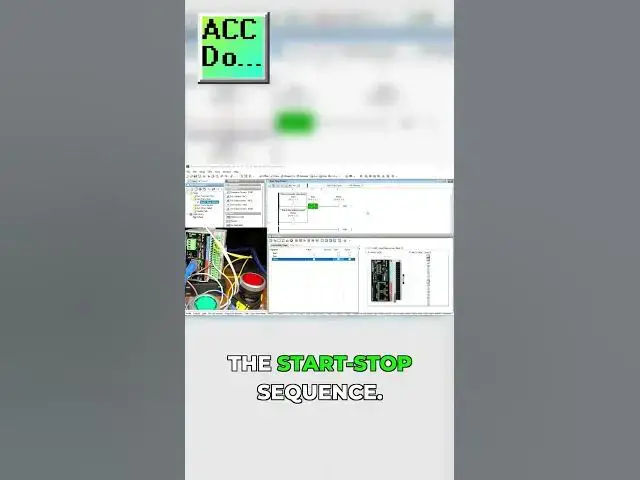

Step four, test the start-stop sequence.
0:36
Test the start function. Press the start
0:38
push button. Watch DI01.1.1
0:41
turn on green in the ladder and data
0:43
[music] view.
0:45
The output DO0.1.1.1
0:47
should turn on. The LED should
0:49
illuminate. Release the start button.
0:50
The output should stay on because of the
0:52
ceiling contact. Test the seal circuit.
0:54
With the motor running LED on, observe
0:56
the ladder logic. You'll see DI01.1.1
1:00
start is off, red because you released
1:02
the button.
1:03
DO01.1.1
1:05
seal contact is on, green. This is
1:08
keeping the circuit energized. DI0.1.1.2
1:12
stop NC contact is true, green, because
1:15
the stop button is not pressed.
1:17
DO01.1.1
1:19
motor output is on, green. Test the stop
1:22
function. Press the stop push button.
1:24
Watch DI01.1.2
1:26
turn on in data view.
1:28
The NC contact in the ladder opens,
1:30
turns red. The output DO01.1.1
1:33
turns off. The LED turns off. Release
1:36
the stop button.
1:37
The motor stays off until start is
1:39
pressed again.
