0:00
friends welcome to Solid Works tutorial
0:02

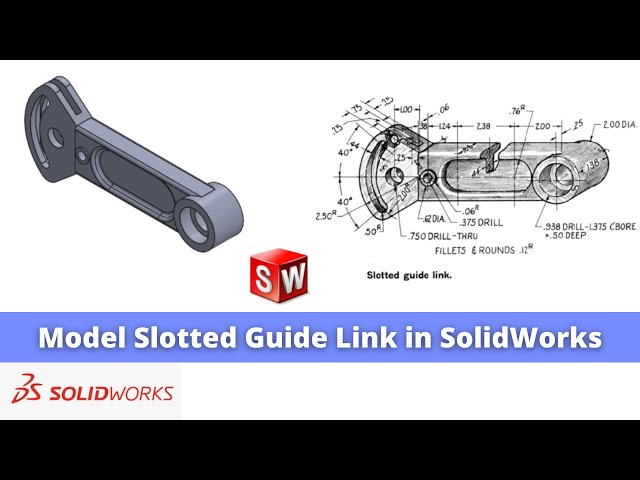

and in this tutorial we will model this
0:04
uh slotted guide link in solid works as
0:07
you can see that I have already modeled
0:09
it and I will show you from the scratch
0:12
how you can do the same in solid
0:15
works so I will close this file and
0:20
file you can also visit my website Mac
0:23
nexus.com and you can visit this solid
0:27
works tutorials tab where I have written
0:31
so many tutorials on solid works where
0:34
you can follow the stepbystep guide to
0:39
parts if you like my method of teaching
0:42
then you can also support me on kofi.com
0:45
you can buy me a cup of coffee your
0:49
small support will help these channels
0:51
to grow and it will motivate me to
0:54
create more awesome content on solid
0:56
works so let's come back to our tutorial
1:00
tutal so here I have created a new file
1:04
and uh if we see the dimension of our
1:08
drawing it is a inches so we will go to
1:12
the unit section and uh click here inch
1:16
pound SE second you can also change unit
1:20
by going to the setting
1:24
now the first thing which we will do is
1:27
to create a diameter of a 2 in in so for
1:31
this we will select the front plane and
1:33
click on the sketch select the
1:36
circle create a circle select smart
1:42
Dimension and uh Give It 2
1:47
in now come out of the
1:54
extrude and give the Extrusion of 1.38
2:00
and keep it symmetric to the plane click
2:08
now we will select the mid
2:12
plane which is a front plane and uh
2:14
select the sketch we will select this
2:17
outer Ed and click on convert
2:19
entities and make it construction and
2:23
from here set it to the front
2:25
view and now here uh we will create a
2:44
now we will create a rectangular like
2:49
profile like this one and now we will
2:53
constrain the length we will select this
2:55
line and this origin line and give it a
3:06
sketch and now we will select the sketch
3:09
click on extrude and uh extrude to the
3:14
88 in and from here select the mid plane
3:22
okay now we will create this profile so
3:27
for this we will again select the mid
3:29
plane and click on the
3:32
sketch switch to the front
3:35
view and here first we will select this
3:39
age and click on convert
3:44
now we will create a approximate
3:49
profile we will create a angular line at
3:52
bottom and now we will select the
3:54
three-point Arc and create an arc
4:01
now we will select this point and this
4:03
point and give the horizontal
4:09
constraint and select this Arc point and
4:12
this line and add the
4:15
coincidence now this radius is of R 2.5
4:27
and we will uh create a construction
4:34
line and make it for the
4:38
construction and we will give the angle
4:41
of 40° on the both the sides
5:04
so our sketch is fully constrained we
5:10
it and we will uh extrude it to the 75
5:18
75 and we will set it to the mid
5:26
okay and now here we will give the
5:29
fillet of for. 5 in at the both the
5:31
edges so we will give the
5:39
0.5 select this Edge and this Edge click
5:45
okay and now we will create this
5:49
slot so for this we will uh select this
5:52
phase and click on the
5:54
sketch make this phase
5:56
normal and now from here uh we we will
6:01
the threo AR slot so we will
6:06
select three points and create an arc
6:10
and now we will constrain it so first
6:13
thing which we will do is add the
6:17
constraint select this point and this
6:23
H and uh click on the
6:29
the radius is of uh 2
6:40
and we will create a construction line
7:06
construction and select smart
7:25
40 select this Arc and this Arc and and
7:36
it now we will come out of the
7:40
sketch and we will select the sketch
7:45
extrude and from here say it through
7:51
okay now we will select the phase and
7:54
click on the sketch and we will create
7:58
hole we will make this phase
8:08
circle and from the age to this is of 1
8:19
in select this and this and make it
8:24
horizontal and uh diameter is of 75
8:38
now we will select the
8:40
sketch click on extrude
8:43
Cut and from here say through all say
8:50
okay now we will remove the
8:56
center so for this we will uh select
8:58
that ttop plane and click on the
9:05
sketch we will switch to the top
9:11
here we will uh create a
9:20
rectangle and we will select this
9:26
Ag and click on convert entities and we
9:32
construction and we will place a point
9:36
at the mid of this construction line and
9:40
then we will switch to the top
9:45
view first we will give the dimension of
10:09
2 and this distance will be
10:18
250 and length is of approximate let's
10:54
let's make it bigger instead of two
11:04
we will come out of the
11:05
sketch select the sketch click on
11:11
extrude say through all both the
11:43
now we will create here a hole so for
11:47
this we will select the phase and click
11:51
sketch we will make this phase
11:56
line and create a horizontal line
12:00
line and uh make it for the
12:11
here and uh give it a diameter of
12:39
sketch select the sketch and click on
12:44
exclude and from here say through all
12:56
okay so here actually it would not not
12:59
be extrude cut it will be extrude boss
13:03
so we will delete this feature because
13:05
we see the material added here so we
13:07
will select it and click on extrude
13:12
boss and give the thickness 06
13:19
in click on okay now we will mirror this
13:23
feature on the other side so we will
13:25
select it go to the linear pattern go to
13:27
the mirror and and from here we will
13:40
now we will create this uh 38 D hole
13:44
through so we will select the phase and
13:49
sketch make this phase normal click on
13:56
circle select smart dimension
14:09
938 come out of the sketch select sketch
14:15
Cut and from here say through all say
14:22
okay now we will make uh again one
14:27
hole select the phase and uh click on
14:33
sketch make this phase normal click on
14:52
1.375 and depth of the 05
14:59
select the sketch click on extrude
15:06
05 so basically this is the counter
15:11
hole now we will make this slot so we
15:15
will select the phase and click on the
15:18
sketch we will make this phase normal go
15:25
slot select the straight slot
15:34
now select smart Dimension from this
15:37
point to this point is of 2
15:43
in and this length is uh
15:54
2.38 and uh slot radius is of uh
16:04
76 so our sketch is fully
16:08
constrained now we will come out of the
16:12
sketch and uh create exclud cut of
16:19
22 click on okay and now we will mirror
16:23
this cut on the other side so we will
16:25
select the cut go to the linear pattern
16:35
plane click on okay and
16:39
now we will create a through hole so we
16:44
face and click on the
16:48
sketch make this phase
16:51
normal select the circle
17:17
sketch select the sketch click on
17:23
Cut and from here say it true all say
17:34
now common fillet is point
17:39
R2 uh1 12 R so we will select the fillet
17:45
option and we will select this all four
17:48
edges and give the fillet of uh
17:53
.12 and select this four edges
18:07
okay similarly this outside we will fet
18:16
fet and do the fillet on the both the
18:25
okay now press contrl 7 for isometric
18:29
so now you can see that we have
18:33
successfully made this slotted guide
18:36
link in solid works from the scratch I
18:38
hope you have enjoyed this tutorial if
18:40
you have enjoyed this tutorial then
18:42
please like subscribe and share my
18:44
channel and also support me on a
18:47
coffee.com you can buy me a cup of
18:49
coffee your small support will help this
18:52
channels to grow and it will motivate me
18:54
to create more awesome content on solid
18:57
works so thank you for watching and
