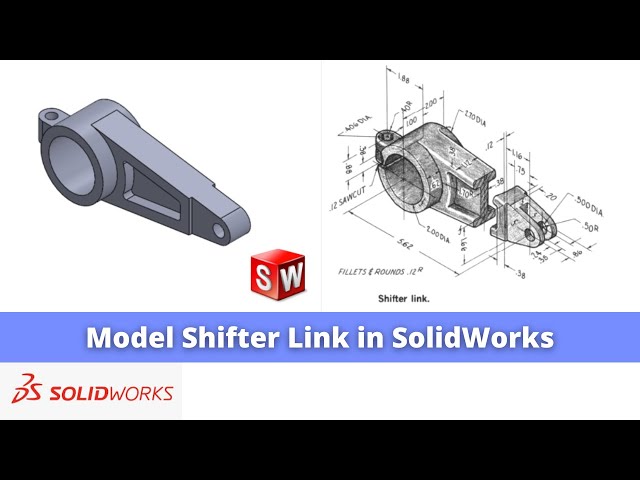

Model Shifter Link in SolidWorks | SolidWorks Tutorial | SolidWorks Part Modeling |
Aug 15, 2024
#SolidWorks #solidworksmodeling #solidworkstutorial In this video I have explained How to Model Shifter Link in SolidWorks. ▶️ Download This Tutorial Source File From my Ko-Fi Store-: https://ko-fi.com/s/d8a110f255 ▶️ Visit my website for more info-: https://mechnexus.com/ ▶️ The Complete SolidWorks Course : From Zero to Expert!-: https://www.udemy.com/course/solidworks-complete-course-zero-to-expert/?referralCode=B30458218EA1375DDB6E ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus 👉 Indian User can Support My Work Using my UPI ID: amar.patel456@ybl & amar.patel456@axl All donations will be used to purchase equipment to improve my productivity and increase the quality of the content that I produce. Your kind support will help to grow this channel. Even if it's just enough to buy me a coffee every little helps and this will be repaid in full through my sharing of knowledge.
View Video Transcript
0:00
Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04
model this uh shifter Link in solid
0:06
works as you can see that I have already
0:09
modeled it and I will show you from the
0:11
scratch how you can model this shifter
0:13
link from scratch so I will close this
0:16
file and create a new
0:17
file you can also visit my website macn
0:21
nexus.com and you can visit this solid
0:25
works tutorials tab where I have written
0:29
so many tuto tutorials on solid works
0:32
where you can follow the stepbystep
0:34
guide to model the
0:37
parts if you like my method of teaching
0:40
then you can also support me on kofi.com
0:43
you can buy me a cup of coffee your
0:46
small support will help these channels
0:49
to grow and it will motivate me to
0:51
create more awesome content on solid
0:54
works so let's come back to our tutorial
0:58
so here I have a creat cre a new file
1:00
and now we will create our base profile
1:04
and for this we will select this front
1:07
plane and before that we will select our
1:11
unit to the
1:13
inches and then go to the front plane
1:16
and uh draw the two
1:23
circles inner one is of a 2 in
1:31
and outer one is of 2.7
1:39
in and
1:42
then we will uh come out of the
1:46
sketch press control 7 for isometric and
1:52
create a Extrusion of a 2
1:54
in give the 2 in and from here select
1:57
the mid plane and click on
2:00
okay and
2:02
now we will select this pH and uh create
2:07
one datm plane at a distance of a 62
2:10
in 62 and uh flip the
2:17
plane and now we will uh select this
2:21
plane and click on the
2:23
sketch click on convert entities and uh
2:27
make it uh constru
2:30
struction make it
2:34
normal and we will create a three-point
2:37
Arc equal to the
2:40
construction and we will
2:44
create one more
2:48
Circle and we will make it a
2:53
construction and Center to Center
2:55
distance is of uh
3:06
5.62 and
3:08
uh select smart Dimension and provide
3:13
the diameter of 1
3:18
in and uh select this point and this
3:22
point and add the horizontal
3:26
relation and now we will select a 3o r
3:31
and uh create an
3:39
arc and
3:45
uh at the tangent
3:52
line so our sketch is fully constrained
3:55
we will come out of
3:57
it and uh select the sketch click on
4:03
extrude and add the Extrusion of 1.12
4:11
in and from here flip the directions say
4:18
okay and
4:20
now we will hide this datm
4:26
plane now we will
4:28
uh select the mid plane and create this
4:35
Extrusion select mid plane and say
4:39
sketch and uh now we will make this
4:42
phase
4:44
normal and we will select this uh Outer
4:47
Edge and click on convert
4:51
entities and uh we will select a line
4:55
tool or simply select a
4:58
rectangle and we will create a
5:03
rectangle and
5:07
uh we will uh delete this vertical line
5:11
and click on
5:14
trim and trim
5:20
it select a dimension and give it a 8888
5:31
it select this and this and give it a
5:39
44 and
5:42
uh
5:46
from origin
5:49
2.2
5:53
28 and
5:55
now we will uh come out of the sketch
6:03
select the sketch and click on
6:07
extrude ADD
6:10
point8 and uh keep it symmetric to the
6:15
plane click on
6:18
okay
6:19
now create a
6:24
fillet select the fet icon and give the
6:28
fillet of a point
6:33
406 and select this H and this
6:38
H click on
6:42
okay and
6:45
now press Ctrl 7 for isometric View and
6:49
uh now we will create a mid plane
6:52
between these two faces so for this we
6:55
will go to the reference geometry select
6:57
plane select this phas and select this
7:01
pH click on
7:04
okay and
7:09
now we will select uh this
7:12
pH and uh click on the sketch the plane
7:15
we have created is for the mirror
7:18
purpose now we will make this phase
7:22
normal and uh we will select the convert
7:26
entities and uh press control key ke and
7:29
select these three edges and click on
7:32
okay and now select the line and
7:37
uh draw a vertical
7:41
line and uh give it a dimension from the
7:47
origin
7:52
1.16
7:53
and click on the trim and trim the rest
7:57
of the thing
7:59
and click on
8:01
okay create a cut off
8:10
a12 select the sketch click on extrude
8:15
Cut and give1
8:19
two and now the datm plane which we have
8:23
created we will use it for the mirror so
8:25
select the cut and go to the linear
8:28
pattern select the
8:30
mirror and select this mirror plane and
8:33
click on okay and now we will uh hide
8:37
our the temp
8:43
plane now we will uh create this cut so
8:47
for this we will select this phase and
8:48
click on sketch and now we will make
8:51
this
8:53
normal so first thing we will uh create
8:56
a three-point Arc
9:02
and
9:03
uh we will uh merge this Arc Center to
9:07
the origin select and you The
9:10
Coincidence select smart Dimension and
9:14
give the radius of a
9:22
1.7 and
9:24
now at this side we will uh create a
9:27
vertical line
9:31
which will be 38 from this H select this
9:34
vertical line and this H and give it uh
9:41
38
9:46
and we will shorter this Arc and select
9:50
a line tool and
9:54
join with this and similar way we will
9:58
do at a bottom site we will join these
10:02
two points with a
10:05
line and now we will select this line
10:09
and this age and add a parallel relation
10:13
similarly this line and this age and add
10:17
the parallel relation select smart
10:21
Dimension and give it to
10:25
38 38
10:38
38 and now create a cut of
10:43
37 exit from the sketch select the
10:46
sketch click on extrude
10:51
Cut and give the depth of
10:55
uh
10:57
37 click on
10:59
okay now we have this
11:02
plane here at the mid so we will use it
11:05
for the
11:09
mirror now select the
11:12
sketch go to the linear pattern select
11:15
the mirror and
11:17
from drop down select this uh plane two
11:22
click on
11:25
okay now press Ctrl 7 now we we have to
11:29
create two holes one here and one here
11:32
so first we will create this one select
11:34
the phas and click on the
11:36
sketch make this phase
11:39
normal click on the
11:47
circle select smart
11:50
Dimension and give the whole Dia of a
11:58
point5 come out of
12:02
it and now click on extrude
12:07
Cut and from here select true all say
12:13
okay now we will create the hole here
12:17
select the face and uh click on the
12:20
sketch now switch to the top view select
12:24
the
12:26
circle and snip pencil to the H so we
12:30
can get a center now create a circle
12:33
select a smart
12:35
Dimension and give it a diameter of
12:44
46 and now we will come out of the
12:50
sketch select the sketch click on
12:53
extrude
12:54
Cut and from here say it through all say
13:02
okay
13:05
now we have one cut here which we will
13:09
do it so for this we will select this
13:13
uh top plane and create a
13:20
sketch and this is of
13:23
uh we can see here
13:27
38 so we will make this phase
13:30
normal and uh we will
13:34
create a
13:40
rectangle and select smart Dimension and
13:43
from the age it is of
13:46
uh
13:53
24 and this is of
13:57
uh 38
14:03
38 and
14:05
here we can see that uh from the hole to
14:10
this H is of uh
14:14
75
14:17
so so we will select this diameter and
14:19
click on convert entities and uh we will
14:23
make it construction and we will insert
14:26
one
14:27
midpoint here and select smart Dimension
14:31
and from this point to this one is a
14:43
75 and uh overall length of this cut is
14:47
doesn't matter so we will give some
14:49
random
14:50
value click on
14:52
okay and
14:54
now we will come out of the sketch
14:59
select the sketch and click on extrude
15:03
Cut and from here say it through all
15:06
both
15:08
directions click on
15:11
okay press control 7 now here is a
15:15
fillet of A1 to R so we will select a
15:22
fillet and uh
15:26
.12 and uh select the
15:33
age this
15:37
one
15:39
this
15:53
this and same fillet we will add on the
15:57
other site
16:10
[Music]
16:22
now click on
16:25
okay now press control 7
16:29
so you can see that uh we have
16:31
successfully modeled this shifter Link
16:34
in solid works from the scratch and uh
16:37
this is a very good model for beginner
16:39
users to understand the core principle
16:43
of part modeling in solid works I hope
16:46
you have enjoyed this tutorial if you
16:47
have enjoyed this tutorial then please
16:49
like subscribe and share my channel and
16:51
also support me on coffee.com you can
16:54
buy me a cup of coffee your small
16:56
support will help these channels to grow
16:58
and it will motivate me to create more
17:00
awesome content on solid works you can
17:03
find the link in the video description
17:05
so this is all about part modeling
17:07
tutorial off a shifter links thank you
17:09
for watching and thank you for your
17:11
valuable time
