Hello friends welcome to solid work
0:01
tutorial and in this tutorial we will
0:03

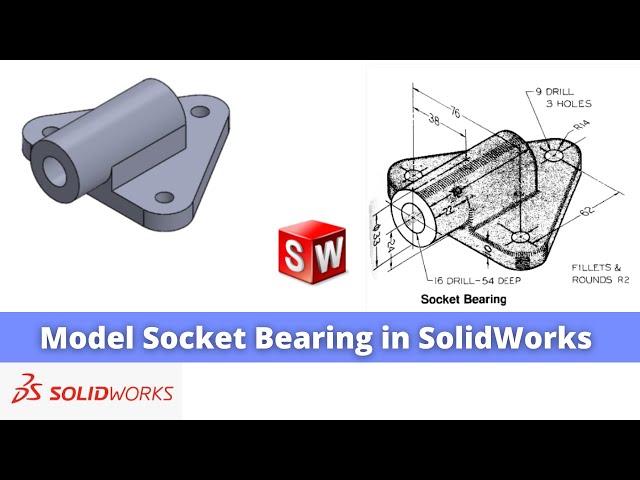

model this socket bearing and this is a
0:06
very simple tutorial for beginner user
0:09
those who have just started learning the
0:10
solid walks so first I will select this
0:14
top plane and uh create a sketch and
0:18
here I will create a rectangle uh sorry
0:33
uh triangle now we will give the
0:38
fillets so we will read the drawing so
0:41
we can see here the fillet is a R14 so
0:44
we will select the fillet and give the
0:46
14 mm and uh provide the
0:55
fillet now we will give the dimensions
1:02
we will select smart Dimension and
1:04
Center to Center is a
1:14
76 and we will give 76 /
1:21
and we will select origin and this uh
1:25
fillet Center give the vertical
1:28
relation and uh from this hole to this
1:32
hole is a 62 so we will select this
1:36
point and uh this point and give the
1:44
62 so our sketch is fully
1:47
constrained and this one is a
1:56
14 now we will come out of the sketch
2:00
and uh thickness is of uh 10 mm so we
2:04
will select the sketch create the
2:16
create this uh solid here so if you see
2:22
phas from the this base uh plate we can
2:25
say and this face cylindrical phe is 22
2:31
so first thing we will uh select this pH
2:36
sketch make this phase
2:39
normal and uh diameter is of
2:44
33 and uh it's so we will uh create a
2:58
33 and and uh from the bottom it is
3:10
now we will select the line tool
3:24
line select the tangent and now we will
3:30
trimit and uh we will close the
3:47
profile so this is the 33 / by 2 which
3:51
is already given here now
4:02
give the horizontal Dimension so it is
4:07
defined so let's see what is done
4:11
constraint so here we will add
4:17
the vertical relation and our sketch is
4:23
constrained we will come out of
4:30
it is 22 from the bottoms 24 and
4:35
diameter 30 and the total
4:44
so we will uh make it
4:47
approximate we click on extrude reverse
4:52
it and we will make similar to it let's
5:01
now we will select the face and create a
5:07
sketch make this phase
5:14
now we'll create a circle and we will
5:17
extrude it to the 22 distance we will
5:21
come out of it select the sketch and
5:25
extrude and we will give the
5:30
okay now here the drill is of 16 mm 54
5:41
so we will select the phase and uh click
5:48
wizard click on okay and here is a
6:06
position we will make this phase
6:15
okay now we will again edit
6:23
drill so here we Define the depth of uh
6:39
now we will create these three holes so
6:41
we will select the face and uh again
6:46
Wizard and uh make this
6:50
normal and this is of 9mm drill so we
6:55
will go here and uh select the drill
7:01
mm 9 mm and we will click on the
7:06
position and we will find out the center
7:21
okay now the fillet is of R2 type which
7:26
you can provide to this uh ages
7:30
and this is the very small tutorial how
7:33
to model the socket bearing in solid
7:35
works and this tutorial is a design for
7:38
the beginner user of a solid works those
7:41
who have just started learning the part
7:43
modeling I hope you have enjoyed this
7:45
tutorial if you have enjoyed it then
7:47
please like subscribe and share my
7:49
channel I will come with more useful
7:52
tutorial like this on solid works thank
7:54
you for watching and thank you for your
