SolidWorks Modeling & Drafting 09 | SolidWorks Tutorial | SolidWorks Part Modeling |
Jan 6, 2025
#SolidWorks #solidworksmodeling #solidworkstutorial In this video I have explained How to Model Part in SolidWorks. ▶️ Download This Tutorial Source File From my Ko-Fi Store-: https://ko-fi.com/s/d8a110f255 ▶️ Visit my website for more info-: https://mechnexus.com/ ▶️ The Complete SolidWorks Course : From Zero to Expert!-: https://www.udemy.com/course/solidworks-complete-course-zero-to-expert/?referralCode=B30458218EA1375DDB6E ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus 👉 Indian User can Support My Work Using my UPI ID: amar.patel456@ybl & amar.patel456@axl All donations will be used to purchase equipment to improve my productivity and increase the quality of the content that I produce. Your kind support will help to grow this channel. Even if it's just enough to buy me a coffee every little helps and this will be repaid in full through my sharing of knowledge.
View Video Transcript
0:00

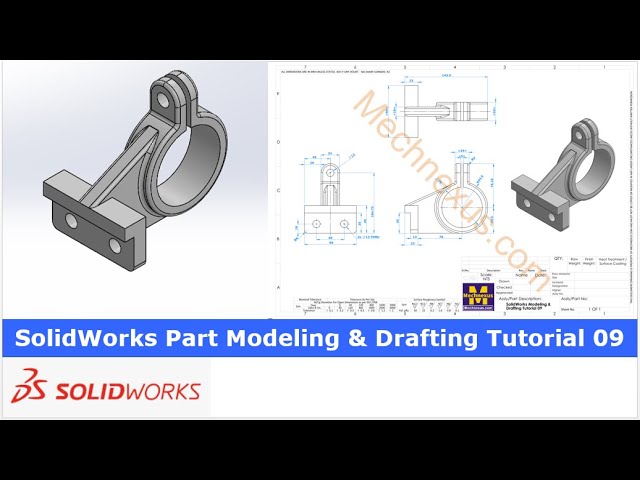

friends welcome to Solid Works tutorial and in this tutorial we will model this part as you can see that uh I have
0:07
created this part with respect to our 2D drawing and you can see that uh our
0:14
solid works model is matching with isometric view in this tutorial we will
0:19
not only create a 3D model but we will also create a 2d drawing I have also
0:24
created a 2d drawing and you can see that uh it is matching with our ref
0:30
drawing I will show you from the scratch how you can create a model as well as a
0:36
drawing in solid works so I will close this file and create a new
0:41
file you can also visit my website Mac nexus.com and you can visit this solid
0:49
works tutorials tab where I have written so many tutorials on uh solid works
0:56
where you can follow the stepbystep guide to model the
1:01
parts if you like my method of teaching then you can also support me on kofi.com
1:07
you can buy me a cup of coffee your small support will help these channels
1:13
to grow and it will motivate me to create more awesome content on solid
1:18
works so let's come back to our tutorial so here I have created a new
1:26
file and I will select this right plane to create get our first sketch and
1:34
here I will select a circle tool and create two
1:40
circles and uh our outer diameter is of 89 select a smart
1:50
Dimension 89 and inner diameter is of a 70
2:01
and now if you see there is a dimension of a
2:06
5 mm and 24 and this 5mm and 24 both are the symmetric
2:11
Dimension so what I will do I will first create a
2:18
rectangle and I will delete this line and I will click on the trim entities
2:24
trim this this and uh this
2:30
and now I will select a line
2:37
tool draw the two vertical
2:48
lines and I will use the trim tool to trim the extra
2:56
geometry and now let's give the dimension so let's
3:01
first const the outer Dimension select this line and this
3:08
line say okay and now select this line and the origin
3:15
point and we will link the dimension press the equal symbol and select this
3:21
Dimension divide by two and say okay now let's change the overall
3:28
dimension which is of 24 so this become 12 because we have
3:34
link these two Dimensions same way we will do here we will uh give this
3:41
Dimension say okay now select this
3:46
uh line and
3:51
point and press the equal symbol and select this Dimension and divide by
3:58
two and now this is of a 5 mm so I will give
4:04
here 5 mm and say okay now from origin to top height is
4:13
off 7625
4:24
76.2 our sketch is fully constrained now we will uh come out of
4:30
the sketch and click our Extrusion and Extrusion Dimension is of
4:36
a 32 if you see in this top view select the sketch click on extrude Boss
4:45
base view the 32 and keep it uh to the mid plane say
4:54
okay and now if you see isometric view so we will create this profile on a mid
5:02
plane first I will uh place my model to the isometric View and
5:08
uh select the right plane and click on the
5:14
sketch switch to the normal
5:21
View and now uh we will switch to the
5:27
wireframe and here I will select this outer diameter and
5:34
click on convert entities I will select a line tool and
5:40
uh create our
5:51
profile and now let's uh constrain our created
5:57
sketch let's move to the drawing and read our
6:02
Dimension so from Center to this is of a
6:09
76 select smart Dimension select this and this and give it
6:20
76 and this is of uh 23
6:32
and this is of
6:40
48 so here we will cancel
6:51
it so here if you see some constraint is
6:56
added so we will delete this coincidence constraint
7:02
also delete this now we will uh give the
7:13
dimension 48 say okay and
7:20
now I will select this point and this Arc and uh make it
7:28
coincidence and set select smart Dimension from this point to the origin
7:33
point is of
7:39
22 say okay and now we will remove this geometry which
7:45
is not required say yes similarly on this side
7:53
say so our sketch is fully constrained we will come out of the
8:01
sketch and its thickness is of 16 mm so let's uh first switch to the
8:09
Shaded view select the sketch click on extrude give the 16
8:17
mm and from here select the mid plane and say
8:25
okay and now if we go to the our isometric view so we have to create this
8:32
pad here whose Dimension is given here and in this case we will again use the
8:38
mid plane which is our right plane select it and say
8:43
sketch and uh now move to the normal View and
8:51
here select a line
8:56
tool create a profile
9:08
this is a 13 and 35 select smart
9:18
Dimension this is the 13 mm and this height is of 35
9:31
our uh sketch is fully constrained and the Extrusion length is of 90
9:37
mm which we can see in a top view select the sketch click on
9:45
extrude give it 90 and make it symmetric to the plane
9:52
and say okay
9:57
now here is a fillet the fillet size is of
10:03
uh 16 mm so I will press the control key and
10:10
select all four ages and say fill
10:17
it and give it a 16
10:23
mm and now I will uh select the phas and create
10:28
this 13 mm hole select it clear the sketch I am
10:34
making with a extrude cut but you can also make with a whole wizard it is a plain drill hole
10:41
therefore I'm making with a cut now I will make this phase
10:49
normal select the circle and snip to the radius so that we
10:54
can get a center and and give the diameter
11:04
13 and uh come out of the sketch and now select the sketch click
11:12
on uh exclude cut and say true all say
11:21
okay now we will create these two holes which we can see in the isometric
11:29
view here so we will uh select the phase and
11:34
uh this whole I will make uh through extrud cut because it is a plain hole so
11:40
I have selected the phase click on the sketch and uh make this phase
11:46
normal and now I will uh
11:52
create two circles and select smart
11:57
Dimension this two this this is of 48 give the 48 and this would be
12:05
symmetric from the origin so I will link this Dimension 48
12:12
press the equal symbol select this 48 Dimensions set it divide by
12:20
two so this Dimension is got linked now from bottom age it is a 16 mm so I will
12:26
select this age to this and uh I will give it uh
12:33
16 and diameter is of
12:40
13 13 and I will select this and this and
12:49
make it equal say
12:55
okay now here we will add horizontal
13:01
relation our sketch is fully constrained now we will come out of the
13:06
sketch select the sketch click on extrude
13:12
Cut and from here select up to surface and uh select this face and uh say
13:20
okay now we will provide a fillet of a 6 mm
13:25
which we can see here I will press the control key and select these two edges select
13:34
fillet and our radius is of R six say
13:41
okay and now if you see isometric view so there is a common fillet of
13:48
R3 so I will select on a fillet and set my fet size of 3 mm and I
13:57
will select this H and and this one this
14:02
H and I will also select this one and this
14:12
one and I will also select this and this
14:20
and also this H
14:25
and this h so you can see that it automatically
14:31
took the tangency propagation now I will say
14:38
okay press uh control 7 for isometric view now you can see that we have
14:45
successfully converted this drawing into the 3D model and our solid works model
14:51
view is matching with the isometric view of our reference drawing now we will uh start creating a
14:58
drawing for our model now I will uh insert my drawing
15:04
template so here is my template
15:10
A3 I will uh cancel it and first I will change my angle of projection from first
15:18
angle to the third angle and uh I will go to
15:23
the model and I will set my basee view
15:31
position so here I have uh set my base View and now I will switch to the
15:39
drawing tab now I will go to the model
15:47
view select it and here I will select a current View and place our this uh first
15:55
view and say okay now as for the sheet size this view is
16:03
small so I will increase its scale I will go to the custom
16:09
scale let's set 1 to one so it's look bigger let's say 1 to
16:17
5 or uh three or let's uh yes three is looks
16:25
okay and here I chooses the odd scale because my template I have a mention not
16:31
to scale and now let's uh create a
16:40
dimensions of our base view so first I will select this inner diameter go to
16:46
the annotations Tab and insert a center Mark and uh I will stretch this Center
16:53
mark
17:00
now the First Dimension we will give is uh this 44.5 so I will select
17:07
smart Dimension select this and this so
17:15
here I will import my Dimension setting now here I will import my
17:23
Dimension setting and you will see that once I import the dimension setting it will be get
17:30
updated so I will uh go to the setting tab go to the documents properties and
17:35
load from external file so here is my latest setting
17:41
R5 and I will say okay so you can see that uh it has been changed and now I
17:49
will uh select smart Dimension select this and uh this
17:57
76.2 and here outer is the
18:03
44.5 give the 44.5 here is a radius R3 give the radius and uh this Dimension
18:13
is of uh 24 and inner is of
18:21
five and uh this inner diameter is of 70 I will select it and and
18:30
uh this 44.5 I will also make it a diameter so go to the lader uncheck this
18:38
select this and select this so diameter 70
18:45
similarly we will also make it a diameter same way go to the lader and
18:50
check it select diameter and select this option say okay and now here
19:00
I will select this Dimension and make its Precision one digit and I will press
19:06
the control key and select all the dimensions which I want at zero
19:12
Precision I will make it round off say it none and now this 24 and 5 mm
19:19
Dimension are the symmetric so I will select this 24 mm
19:25
Dimension and add the symmetricity symbol and this
19:32
5mm also the symmetricity
19:38
symbol now let's give this Dimension
19:46
7613 select smart
19:55
Dimension those 76 and and this one is of a
20:04
13 13 and total is of
20:11
23 and this height is of 35 so give it 35 now this all Dimension
20:19
are the round off so I will press the control key select all the
20:26
dimensions and here I I will make it a roundoff so here the front view
20:33
Dimensions we have completed and now we will insert the projected
20:39
view so I will uh select my base View and go to the drawing and click on the
20:47
projected and here is our projected
20:52
view and say okay now let's uh give the dimension of a side view
20:59
so First Dimension which I will give is a 90 and 48 go to The annotation stab select
21:06
smart Dimension this is 90 and from Center to
21:14
Center is off 48 and
21:19
now I will uh select this H and this Edge and I will set to the center line
21:27
select View and set okay and now I will uh move
21:38
it and now I will uh select both the dimension and uh make it uh round off
21:46
and I will add a symmetricity symbol here it is not given but we will
21:52
add it select both the dimensions and add a symmetric symbol
21:58
and now select a smart Dimension and give it R
22:05
six and from bottom to this is of uh 16
22:12
mm and this is the 35 and 48 is dimension is already given but we will
22:18
also give in this View and we will make it as a
22:24
reference and uh total is of for 48 select this and this and give the
22:35
48 now here I will move our base View and now
22:44
here I will press the control key select the
22:50
dimensions and I will make it round off now
22:58
this R six radius has two locations here and here so I will select this R6 radius
23:04
and give it a 2X and this whole call
23:10
out so I will set the whole call out so di 13
23:17
through and this is of a roundoff
23:25
and and here in our Dimension set X I will give it a 2X because it is a two
23:32
quantity and now I will provide the dimension from
23:39
bottom of the a to the center select smart
23:46
Dimension and now let's uh provide this whole diameter
23:53
which is of a 13 and make it a round off
23:59
now again select a smart Dimensions here we will Define the total
24:06
width 32
24:11
and from here to here is off
24:16
45 now I will select both the dimensions and make it
24:27
none this 20 mm Dimension no need to give uh if you want to give then uh give
24:33
it as a reference because it is all automatically
24:39
defined set it none and uh give it a reference and uh let's move this R six
24:54
Dimension now Let's uh move our base View and now
25:02
we will create a projected view so select our base view go to the
25:08
drawing step click on the projected
25:16
View and now let's uh move
25:22
it let's move to the our top view
25:31
now first thing which we will do is to insert a center line I will select this
25:38
and this and go to the annotations Tab and I click on the center line say okay
25:45
and select it and uh move it and this is the 32 Dimension select a smart
25:54
Dimension select 32 and uh made this Dimension round off set it uh
26:03
equal and now we will give the one dimension as a
26:09
reference which is the total uh we can say length select
26:15
it and uh make it to the one digit and
26:20
set it to the
26:26
reference now let's so move it little bit uh down let's also move
26:35
it now this is offer 23 which is already given here but
26:42
uh we will also give in a top view and we will give this Dimension as
26:49
a reference because this Dimension is repeated already so I will make it none and and I
26:58
will make it as a reference and now thickness is of for 16
27:06
mm so I will select this and this and uh make it uh none and uh make it a
27:16
equal symbol on the both the sides
27:21
and with this Dimension which is 90 and I will make it a round off and I
27:29
will provide the symmetricity
27:38
symbol now let's uh move our top view to the down so we have placed uh
27:47
front top and side view and now we will insert the isometric view so we will go
27:53
to the models Tab and press control 7
27:58
so first I will change the color of my model so I will go to the apperences
28:04
tab and here I will provide the white color say
28:11
okay and now I will go to the my drawing and here
28:18
I will Dr switch to the model Tab model view and
28:25
uh set isometric View now
28:31
here I will uh make it uh shaded and here I will use
28:38
the custom scale set to the 1 to 1 and let's change this to the
28:49
0.9 so it is larger so I will make it
28:54
1.2 so it looks good and now let's uh insert
29:02
the title solid works modeling and drafting tutorial
29:10
09 so I will go to the annotations tab click on the
29:17
Note let's add the title
29:30
and I will press all and make a control B and let's change its
29:39
position okay so this is how we have not only
29:48
created the model but also created the drawing from the scratch I hope you have liked this tutorial if you like this
29:54
tutorial then please like subscribe and share my channel and also support me on ai.com thank you for watching and thank
30:02
you for your valuable time
