Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:05
learn how to model helical spring in
0:07

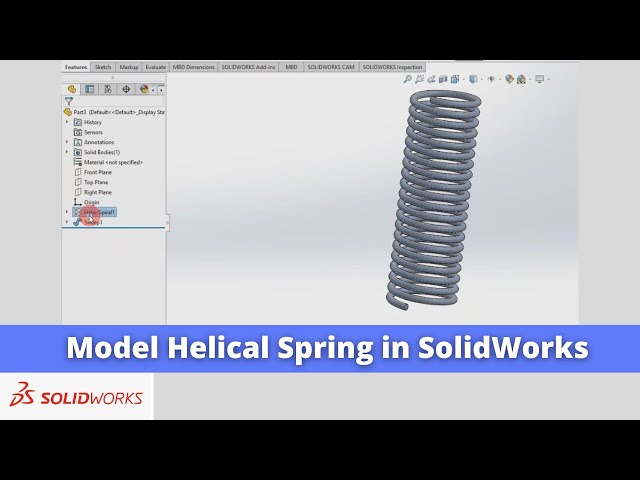

solid works as you can see that I have
0:10
already modeled the helical spring and I
0:12
will show you from the scratch how you
0:14
can do the same in solid works you can
0:18
also visit my website macn nexus.com and
0:21
you can visit this solid works tutorials
0:25
tab where I have written so many
0:28
tutorials on Works where you can follow
0:31
the stepbystep guide to model the
0:36
parts if you like my method of teaching
0:38
then you can also support me on kofi.com
0:41
you can buy me a cup of coffee your
0:45
small support will help these channels
0:47
to grow and it will motivate me to
0:50
create more awesome content on solid
0:53
works so let's come back to our
0:56
tutorial so I will close this file and
1:02
file I have created a new file now I
1:04
will select the top plane and click on
1:08
the sketch and I will create a
1:21
30 and I will come out of the
1:25
sketch I will switch to the isometric
1:28
view now I will select my sketch and go
1:32
to the features Tab and
1:35
here I will select helical and
1:40
spiral so now here is the Helix path of
1:49
we choose whether we want constant pitch
1:52
or variable pitch so we will select the
1:55
constant pitch and uh we will keep our
1:59
pitch 6 mm and the number of a
2:04
15 and starting angle we will set
2:09
zero and we will click on okay so now
2:14
you can see that uh path of our spring
2:18
created now we will press the control
2:23
7 and now we will uh find out the plane
2:28
which will be normal to our starting
2:31
angle so if we can see that this is the
2:34
right plane so we will click on the
2:36
right plane and click on
2:39
sketch and I will make it normal
2:46
now I will create a circle which will be
2:54
diameter we will give our wire diameter
3:06
now I will select this point and origin
3:09
point and add the horizontal
3:11
relation so now we have a profile and we
3:16
have the path of our spring so we will
3:22
tool click on swep Boss base and from
3:26
here select the wire diameter of our
3:30
spring and in path select the path we
3:35
have created and click on
3:39
okay and now we can hide it so you can
3:43
see that we have created a spring in a
3:47
solid work now if you want to modify the
3:51
properties of a spring then go to the
3:55
Helix click on edit feature and here you
3:59
can change the pitch for example I want
4:04
5mm number of Revolution
4:09
okay so that your spring will get
4:13
modified as per input you provide
4:17
here so this is how to model a
4:20
compression spring in solid works this
4:23
