Hello friends welcome to fre tutorial
0:02

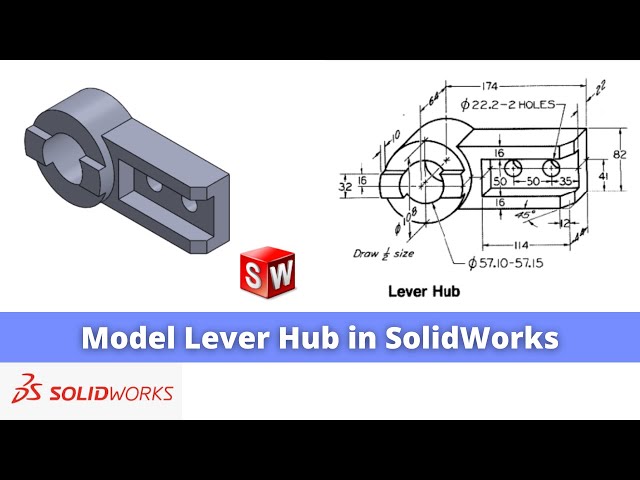

and in this tutorial we will model this
0:05
lever Hub so for this first we will
0:09
select the front plane and click on the
0:12
sketch and here is a diameter 108 so we
0:22
Dimension and give 108
0:38
now total distance is of 64 so we will
0:55
now we will remove this material so for
1:00
this we will select the face and click
1:04
sketch click on the front
1:10
now we will uh create a rectangle and uh
1:15
here it is a 32 to from the center it is
1:18
16 so we'll select the smart Dimension
1:33
uh we will keep as it is we will uh not
1:36
constrain this Dimension because it is
1:39
important and the cut is here is a 10 mm
1:43
so we will go with extrude
1:45
cut and give the here value 10 mm click
1:50
okay now select these features and go to
1:54
the mirror and from drop down here uh
1:58
select the mid plane and click on
2:02
okay and uh here is a drill of uh 57.1 F
2:08
so we will select the face and click on
2:15
and select a smart Dimension and give
2:23
5715 and uh click on the sketch and we
2:27
will uh remove the cut and from here we
2:31
will say true all say
2:35
okay now uh we will create this profile
2:39
so for this we will select the back face
2:45
sketch and click on the front
2:49
plane and now we will project the
3:04
and we'll right click selection tools we
3:08
will select box type and we will make it
3:16
now we will select this three point Arc
3:23
uh create a three-point Arc and now
3:26
select this and this and make it
3:30
equal and now here is a total is
3:34
81 sorry 82 so now we will uh select
3:45
the now uh we will make it
3:57
enter and we will make get uh
4:27
sketch and now we will find out the
4:30
Extrusion which is of the
4:33
44 so select the sketch click on extrude
4:37
and uh click on the reverse
4:52
now here is a chamfer of 12 mm which we
4:56
will do later now uh we will create a
4:59
sketch and create this cut so for this
5:02
we will select the phase and uh click on
5:07
sketch and we will uh make this uh phase
5:17
rectangle and this is the uh total is a
5:22
50 so we will select a smart dimension
5:49
uh we will give the cut Dimensions
5:55
so we will read it from the drawing
6:05
so here we can uh see that it is a 22
6:13
so we will give the cut of depth of 20
6:17
mm it will come out of it and select the
6:23
cut and give the 20 mm and click on okay
6:29
now we will give the chamfer of a 12 12
6:34
sides so click on here and click on the
6:47
now we will create these two holes so
6:50
for this we will select a whole
6:55
feature click on the positions and uh
7:00
we will create the two holes and uh we
7:07
normal and we will right click and uh
7:10
first we will constrain the position so
7:14
is have the horizontal relation with the
7:17
origin so we will click on the
7:20
horizontal this and these centers make
7:24
horizontal and now uh we will uh
7:26
constrain the position so from from here
7:34
35 35 and from here to here it is a
7:46
uh it here is a drill point
8:00
and let's see drill size is not
8:03
available here so we will not make it
8:07
with the whole features we will make
8:08
with the cut options so we will select
8:11
the phase and click on the
8:13
sketch click on the front
8:21
will get a imaginary line which we are
8:24
seeing here so create a circle again it
8:29
will will will have the horizontal
8:34
now we will uh make this two equal and
8:42
22.2 so we will give it
8:47
22.2 and uh from here it is uh
8:53
35 and uh Center to Center is a 50
9:06
and now let's see what is the
9:10
so this and this will have the
9:16
relation this and this will have the
9:20
horizontal relation now we will come out
9:26
sketch and uh we will cut
9:31
it I will say through all say
9:36
okay so you can see that we have
9:41
successfully converted
9:46
uh isometric drawing into the 3D model
9:49
and this tutorial is designed for the
9:52
beginner user of a solid works I hope
9:54
you have enjoyed this tutorial if you
9:56
have enjoyed it then please like
9:57
subscribe and share my channel
10:00
thank you for watching and thank you for
