Hello friends welcome to Solid Works
0:02

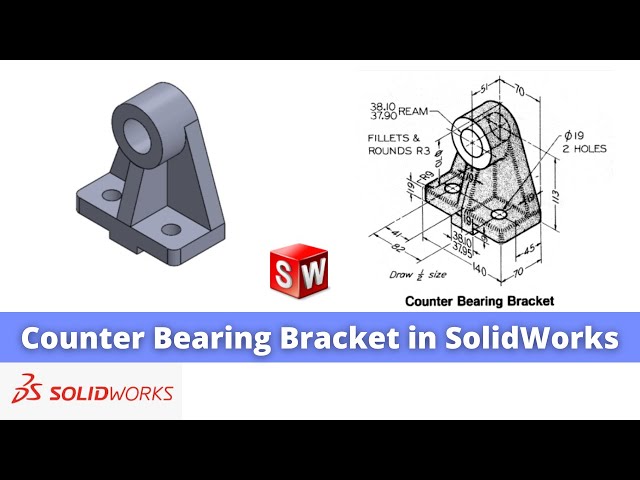

tutorial and in this tutorial we will
0:05
model this counter bearing bracket in
0:07
solid works and I will show you from the
0:09
scratch how you can do the
0:12
same so first I will select the top
0:23
rectangle I select line and this point
0:36
140 and we will make it
0:45
2 and this one is a 70
0:55
here now we will come out of the sketch
0:59
now here is Extrusion of 19
1:02
mm click on extrude say
1:08
19 and now uh we will create this back
1:13
phas so for this we will select this
1:15
face and uh click on the
1:19
sketch and we will select this age and
1:22
click on convert entities and make this
1:28
normal and now we will uh create a
1:34
triangle and here is a diameter 35 so we
1:38
will give the fillet of 35 mm select the
1:41
fillets select the 35 and
1:49
35 and now from bottom to Center is a
1:57
113 so select this and this and give
2:07
now we will uh add the vertical
2:14
relation come out of the sketch and this
2:18
pad is of 19 mm select it and click on
2:24
extrude reverse it give the 19 mm
2:30
and uh now we will create this boss so
2:33
we will s the face and click on the
2:36
sketch we will make it uh normal and
2:50
sketch select sketch click on
2:53
extrude and uh here is uh this is the 51
3:01
19 so we will give the 51 -
3:06
19 so this is 32 click on
3:14
now we will uh add material to the
3:18
site so we will select this phase and
3:23
sketch and make this phase
3:26
normal and we will click uh
3:32
rectangle so maximum width is
3:35
38.1 so select the smart
3:42
38.1 and we will select this point and
3:47
and press equal select this Dimension
3:56
okay and uh this is the 9M m
4:09
reverse select up to surface and select
4:12
this back face click on
4:17
okay now we will uh create this rib so
4:24
rib we will select this pH and click on
4:31
and this rib of the 19 mm thickness so
4:34
first we will select convert entities
4:36
and uh convert it and uh make it
4:42
construction and create a
4:49
rectangle select this point and Arc make
4:53
it coincidence see point an arc make
5:35
Mar and we will come out of the
5:46
reverse and from here select up to
6:01
sketch click on the convert
6:06
entities convert it and
6:14
construction and now create a rectangle
6:21
points and come out of the
6:24
sketch select the sketch click on
6:30
and from here select uh up to surface
6:32
select the face and click on
6:40
now first we will uh create these two
6:47
bore so let's first create this bore
6:51
select the face click on the
6:56
normal click on the circle
7:02
circle and this board is of uh
7:19
sketch click on extrude
7:22
Cut and from here say it true all say
7:30
now we will give the two fillets of
7:33
R9 so select the fillet
7:36
icon give the value 9 mm and select
7:47
okay now we will uh create two holes so
7:51
for this we will select the face and
7:57
wizard we will make this phase normal so
8:00
this is the drill of 19 mm so we will
8:02
select the simple hole and here we here
8:06
we select NCM metric and here we'll
8:08
select the drill size and let's see the
8:11
drill size of 19 mm is
8:16
available so here it is available we
8:23
position place the two
8:26
holes now from the age it is a 45 so
8:34
Dimension and give it
8:42
45 select this point and this point and
8:46
relation and whole to whole is
9:03
uh press the equal symbol select this
9:17
okay now press the contr 7 for isometric
9:20
View and here is a common note all round
9:24
and fillet of R3 so if I provide the
9:27
fillet that will be too lengthy and and
9:29
uh we have completed this counter
9:32
bearing bracket in solid works and uh
9:36
this tutorial is for the beginner user
9:38
of a solid works those who have just
9:40
started learning the solid works if you
9:42
like this video then please like
9:44
subscribe and share my channel thank you
9:46
for watching and thank you for your
