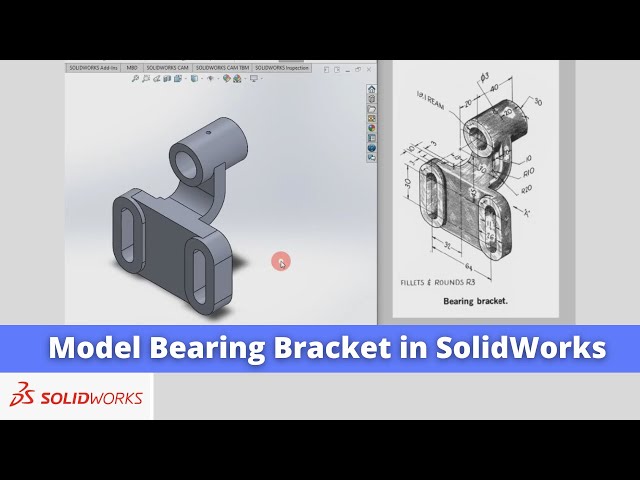

Model Bearing Bracket in SolidWorks | SolidWorks Tutorial | SolidWorks Modeling |
Apr 24, 2025
#SolidWorks #solidworksmodeling #solidworkstutorial In this video I have explained How to Model Bearing Bracket in SolidWorks. ▶️ Download This Tutorial Source File From my Ko-Fi Store-: https://ko-fi.com/s/d8a110f255 ▶️ Visit my website for more info-: https://mechnexus.com/ ▶️ The Complete SolidWorks Course : From Zero to Expert!-: https://www.udemy.com/course/solidworks-complete-course-zero-to-expert/?referralCode=B30458218EA1375DDB6E ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus 👉 Indian User can Support My Work Using my UPI ID: amar.patel456@ybl & amar.patel456@axl All donations will be used to purchase equipment to improve my productivity and increase the quality of the content that I produce. Your kind support will help to grow this channel. Even if it's just enough to buy me a coffee every little helps and this will be repaid in full through my sharing of knowledge.
View Video Transcript
0:00
as you can see that I have already
0:02
modeled it and I will show you from the
0:06
scratch how you can do the same in solid
0:09
works so let's start our tutorial I will
0:12
close this file and I will create a new
0:15
file you can also visit my website Mac
0:18
nexus.com and you can visit this solid
0:22
works tutorials tab where I have written
0:26
so many tutorials on solid works where
0:29
you can follow the step by step guide to
0:33
model the
0:34
parts if you like my method of teaching
0:37
then you can also support me on kofi.com
0:40
you can buy me a cup of coffee your
0:44
small support will help these channels
0:46
to grow and it will motivate me to
0:49
create more awesome content on solid
0:51
works so let's come back to our
0:58
tutorial now first we will uh read our
1:02
drawing as we can see that uh this is a
1:05
rectangular
1:07
feature after that there is a swep like
1:10
profile and there is a round so first we
1:13
will make
1:14
this our base feature so for this I will
1:18
select this front plane and click on
1:22
sketch and from drop down I will select
1:24
a center rectangle
1:30
and now we will uh give our
1:33
Dimensions so if we can see that uh this
1:37
is the center to Center is a 64 and this
1:40
is the diameter of
1:43
26 so we will select smart
1:47
Dimension and give it 64
1:51
+ 13 and 13 on the both the side which
1:55
is a
1:57
26 and uh iCal Dimension is a
2:01
30 and 30 +
2:10
26 so this is our base profile now we
2:13
will come out of the
2:15
sketch press contrl
2:18
7 and uh we will extrude it select the
2:22
sketch click on extrude boss and
2:25
base and here we can see that
2:28
uh our Extrusion is a 13 mm 10 mm this
2:33
and 10 mm this is a 13 we will add this
2:37
3 mm boss
2:39
letter so we will give here 13
2:47
mm and we will say
2:50
okay and now let's move to the next
2:55
feature our next feature is to add
2:58
fillet
3:00
on all four
3:03
corners so we will select all these four
3:07
edges by pressing the control
3:11
key and uh click on the
3:15
fillet and here we will add the fillet
3:17
of 13
3:20
mm because this is the diameter
3:25
26 we will say okay press crl 7 for
3:29
isometric View
3:31
now we will create these two bars for
3:35
this we will select the pH right click
3:38
and click on the
3:40
sketch and we will make this phase
3:45
normal and we will click on convert
3:49
entities we will select all the entities
3:52
which is converted and click on for
3:56
construction and now we will create two
4:00
diameter at the two centers for this
4:03
select the
4:05
circle create a
4:11
diameter now we will draw the two
4:19
lines again select line
4:22
tool and connect
4:26
it
4:28
now we will train trim the unnecessary
4:32
geometry so click on trim
4:34
entities select trim to
4:38
closest delete this now go to the slot
4:44
and click on the straight
4:46
slot snip on this Arc you will find the
4:52
center similarly snip on the arc you
4:55
will find the center and create a
4:58
slot now if you see that slot width is
5:02
11 we will go to the smart
5:05
Dimension
5:07
and give it 11
5:11
mm and we will come out of the
5:15
sketch press control
5:18
7 select the sketch click on extrude
5:23
boss
5:25
and give the 3mm dimension which is
5:28
shown here click on
5:31
okay now we will completely remove the
5:35
material for this select the
5:38
face right click and click on the sketch
5:42
icon and click on convert
5:46
entities come out of the
5:49
sketch select the sketch and uh click on
5:53
extrude Cut
5:55
option and from here select through all
5:59
and Save say
6:01
okay
6:03
now press control key and select these
6:06
two
6:07
features go to the linear pattern and
6:10
select the
6:11
mirror and from Mirror plane and face
6:15
expan the browser
6:17
tree select the right plane click on
6:21
okay so this is how we have created this
6:25
boss and mirror it on the other side now
6:29
move to the the next
6:30
feature our next feature is to create
6:33
this profile for this we will select the
6:37
right plane and click on the
6:40
sketch
6:42
and we will find the dimensions if we
6:46
can see here this uh Boss face is of 20
6:51
mm
6:53
distance so for this first we will
6:55
create a
6:57
threo Arc
7:02
and it is at a distance of 20 mm from
7:05
this Boss
7:07
face so we will select the age and
7:10
convert entities and click on the sketch
7:13
and make it
7:15
construction and
7:17
now we will select smart
7:20
Dimension select our projected line and
7:23
this Arc
7:25
Center and give the dimension of uh 20
7:31
now make this phase
7:38
normal
7:41
now we will create a
7:48
line and we will make it coincident
7:54
relation and we will also add the
7:56
tangent
8:01
and now we will draw one vertical
8:09
line we will select this Arc and
8:11
vertical line and add the tangent
8:15
relation
8:18
now now we have to fix this point for
8:21
this we can see that uh this uh slot
8:24
Center to this round Center is of 45 so
8:28
we will rotate our
8:32
model and we
8:35
will select this
8:37
AR and click on convert
8:41
entities and make it construction so if
8:44
you can see here this is this point is a
8:47
center of this Arc so we will select
8:50
smart
8:51
Dimension select this point and this Arc
8:56
point and uh give the dimension of for
9:02
45 now we
9:05
will make this phas
9:09
normal
9:11
sorry we will give 45 Dimension to the
9:21
Top This radius is a
9:25
r10 so first we will give the 10
9:29
and this
9:32
point to this
9:34
point is of
9:40
45 so this is the our outer profile now
9:45
we will use the offset
9:47
command our outer diameter is of R20
9:51
which means that this is the 10 mm
9:53
thickness which is also mentioned
9:55
here we will select the offset
10:00
offset 10
10:08
mm now we will close our profile select
10:12
the line
10:14
tool join these two
10:17
points again select the line
10:19
tool join these two
10:28
points again edit the sketch and delete
10:32
this
10:36
line now you can see that we have a
10:39
fully constrained sketch we will come
10:41
out of the
10:43
sketch select the sketch our Extrusion
10:46
length is a
10:47
30 we will click on extrude boss and
10:51
base give the 30 mm
10:54
Dimension select on mid plane click on
10:58
okay
10:59
now we will uh remove the material and
11:02
make this round profile for this we will
11:06
select this phas and click on the sketch
11:09
we will make this phase
11:11
normal now click on the
11:14
circle and
11:17
uh create a
11:20
circle now come out of the
11:24
sketch select the sketch click on the SC
11:27
cut and uh click here through all say
11:32
okay so now we have the remove the
11:35
material here now we will add the
11:37
material for this round profile for this
11:41
we will select the sketch and create a
11:44
sketch we will select this Outer Edge
11:47
and click on convert
11:49
entities we will make it
11:52
construction we will make this phase
11:56
normal select the circle
11:59
and we will draw the two
12:01
circles outer one is fully constrained
12:04
now inner one is a
12:07
19.1 so we will select the smart
12:10
Dimension and give it
12:15
19.1 now we will come out of the
12:20
sketch click on the
12:23
extrude and here we will use the two
12:26
direction Extrusion so here we can see
12:28
that 10 mm Dimension is given from the
12:31
face and overall is a 40 so 40 - 10 is a
12:36
30 so in Direction one we will give the
12:39
10 in Direction two we will give the
12:43
30 now we will say
12:49
okay now here is a
12:53
cut we will select the face and create a
12:57
sketch and we we can see that this 13 mm
13:00
Dimension is given from this uh slot
13:04
Center so we will select the age and
13:07
click on convert
13:09
entities select this line and click on
13:12
for
13:13
construction and here we will add a
13:16
point at the
13:18
center and now we will switch to the top
13:22
view of our model we will select the two
13:25
point Corner
13:27
rectangle and
13:29
create a
13:32
rectangle and from center of the slot to
13:36
this is a 13 mm so we will select the
13:39
smart Dimensions select this point and
13:42
this point and give it 13
13:48
mm cut is of 3
13:53
mm so give it 3
13:56
mm we want or to completely remove the
13:59
material therefore we will give some
14:02
approximate
14:04
Dimension let's give
14:08
30 now come out of the
14:12
sketch press ctrol
14:15
7 select the sketch click on extrude
14:20
Cut and from drop down select through
14:23
all say
14:25
okay now if you see our model here at
14:29
the top there is a drill of a 3 mm at a
14:32
distance of a 20 so for this we will go
14:36
to the reference geometry select plane
14:39
select the surface of uh our round
14:43
profile and from drop
14:46
down select this top
14:48
plane and from here select the parallel
14:54
relation now we will select This Plane
14:59
and click on the whole
15:02
Wizard and from here we will select the
15:05
3mm drill
15:06
size go to the
15:11
position and we will add our hole
15:16
Now set it as a top view and now we will
15:21
constrain it so first we will give the
15:24
distance which is of a 20 select smart
15:27
dimension
15:30
and uh give it a 20
15:36
mm and now select the origin point and
15:39
our whole
15:41
point and add a vertical
15:48
relation now we will go to the whole
15:51
type and from here we will select
15:55
blind and we will keep approximate
15:58
distance
15:59
because this hole should open in our
16:02
round profile but we can Define it to
16:06
the up to the surface we will select in
16:09
surface and click on
16:12
okay now we will hide our
16:17
plane press crl 7 so this is how we have
16:21
a model bearing bracket in solid works
16:25
and we have exactly made it as per our
16:27
drawing so this is all about this
16:30
tutorial thank you for watching and
16:32
thank you for your valuable time
