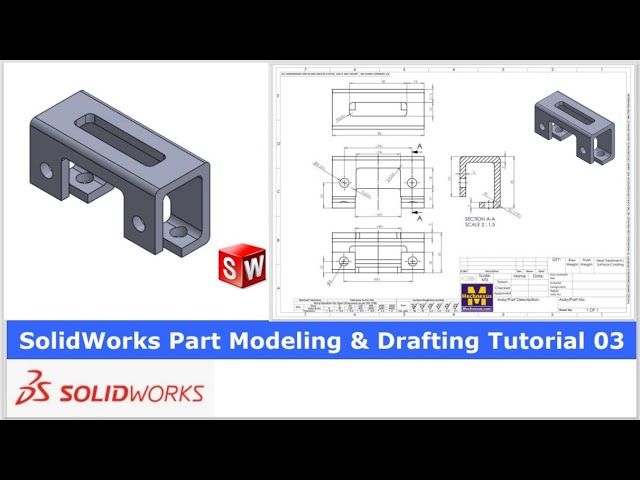

SolidWorks Model & Drafting Tutorial 03 | SolidWorks Tutorial | SolidWorks Part Modeling |
Dec 16, 2024
#SolidWorks #solidworksmodeling #solidworkstutorial In this video I have explained How to Model Part in SolidWorks. ▶️ Download This Tutorial Source File From my Ko-Fi Store-: https://ko-fi.com/s/d8a110f255 ▶️ Visit my website for more info-: https://mechnexus.com/ ▶️ The Complete SolidWorks Course : From Zero to Expert!-: https://www.udemy.com/course/solidworks-complete-course-zero-to-expert/?referralCode=B30458218EA1375DDB6E ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus 👉 Indian User can Support My Work Using my UPI ID: amar.patel456@ybl & amar.patel456@axl All donations will be used to purchase equipment to improve my productivity and increase the quality of the content that I produce. Your kind support will help to grow this channel. Even if it's just enough to buy me a coffee every little helps and this will be repaid in full through my sharing of knowledge.
View Video Transcript
0:00
Hello friends welcome to Solid Works tutorial and in this tutorial we will model this part with respect to the
0:06
orthographic drawing and you can see that I have already modeled it and it is a matching with the isometric view we
0:13
will not only create a model but we also create the drawing so I will close this
0:18
file and create a new file and we will start from the scratch you can also visit my website
0:26
macn nexus.com and you can visit this solid works tutorials tab where I have
0:33
written so many tutorials on solid works where you can follow the stepbystep
0:39
guide to model the parts if you like my method of teaching
0:45
then you can also support me on kofi.com you can buy me a cup of coffee your
0:52
small support will help this channels to grow and it will motivate me to create
0:57
more awesome content on solid works so let's come back to our
1:03
tutorial so here I have created a new file and if you see our model so we will
1:09
create our base sketch on a right plane so I will select this right plane and
1:15
click on the sketch and here I will uh create a
1:23
rectangle select rectangle and uh and now
1:35
we will move it and let's give the dimensions select smart
1:40
dimensions and this is of 45 and uh this is of
1:51
35 35 and now if you see in a side view so
1:58
we will select a line tool and create a rough
2:11
profile and now we will use the trim tool to trim this and trim
2:18
this and the thickness is of a 5 mm so select smart
2:23
Dimension and give this 5mm this is 5 mm
2:35
and uh this is also
2:40
5mm and this is also 5 mm and
2:47
now this height is of 35 so give it 35 and uh this one is of
2:55
18 from the origin so select this point at this line and and from the origin
3:00
give the 18 mm and now our uh sketch is fully constrained we will come out of
3:08
the sketch and uh we will extrude it to the distance of 80 so select the profile click on
3:17
extrude and uh give here 0mm and uh keep it symmetric to the
3:24
plane and say okay now
3:30
we will uh provide the fillet of uh 3
3:35
mm so if we see in the side view here so R3
3:41
fillet so I will uh select the fillet options select this
3:48
H this hede and let's set fillet size to the 3 mm select this
3:56
one select this one select this
4:01
and this and say
4:08
okay now we will uh create the
4:16
cut so if you see our model so we have a one cut here one cut
4:25
here so first we will create this cut on the top
4:31
so actually our model orientation is like this so we will select this pH and
4:36
uh click on the sketch and move to the Top Lane and
4:43
now if you see our model so here is a it is of 40
4:52
mm so I will uh select a rectangle tool and I will create a
5:02
tangle and uh select smart Dimension and give it a 40
5:12
mm and from this to this is of
5:18
20 and uh from here to this one is off a
5:25
35 say
5:31
okay now we will create a cut come out of the
5:39
sketch select the sketch and click on Cut and from here select uh up to
5:47
surface and we will select this bottom surface and say
5:54
okay now we will uh create this cut here
6:00
so if we see this cut so we will select this
6:05
phas and uh click on the
6:17
sketch and now I will set it to the
6:27
normal now if you we see in our model so this both the cuts are of 40 mm so this
6:37
one is a 40 bu this one is of 38.6 so we will modify our previous cut
6:44
but let's uh first create this 40 mm cut so select a
6:49
rectangle create a rectangle and uh select a
6:56
dimension Prov the horizontal dimension of mm and uh from the
7:04
center let's make it
7:09
20 and this is of 17
7:19
mm and uh click on okay and now select the sketch click on
7:27
exclude cut and uh say it true all say okay now if
7:35
we make this phase normal so this one is of 38.6 so we will
7:43
uh click on it and make it uh
7:53
38.6 and this 20 Dimension we will link it I will delete it select this
8:03
Dimension divide by two so 19.3 now we will rebuild our
8:13
model okay so now if you see that uh this H is a little bit inside so now we
8:21
have made it let's uh provide the fillet of R3
8:30
so this R3 fillet at four locations 1 2 3 and four so select the
8:39
fillet and here is a 3mm is already there now I will select the corners
8:45
which I want to flet this this this and
8:51
uh this one click on
8:57
okay now let's uh move to the next feature so our next feature will be to
9:04
create this backside cut so we will select this pH and uh
9:11
click on the sketch and backside cut details we can see
9:18
here so here I will uh create a
9:26
rectangle and we'll make this phase normal and this is of a 50 and from this age it
9:34
is a 15 so I will select this and this and
9:41
provide it 15 mm and now let's select
9:51
this this is of 50 so let's Zoom it so this is 50 and
10:00
from the top it is a 11.5 select this and
10:06
this and I give it uh 11.5 and uh this is of the 12
10:19
mm so our profile is fully constrained we will come out of the
10:26
sketch now select the sketch click on next root cut and from here select up to surface
10:34
and uh select this inside face click on okay now there is a four
10:41
fillet of R3 so I will uh select the fet
10:49
tool and uh select this H this age
10:59
this age and this one and say
11:07
okay now we will create these two holes and
11:13
two hole is there so let's uh place our model to the isometric view so our model
11:21
orientation is like this so I will uh select this top face and uh click on the
11:27
sketch and I make this phase normal so now if you see
11:35
here so here is our two hole of a di8
11:43
so instead of a whole feature I will make it a cut because this is a plain
11:50
drill hole or if you want to make with a whole features you can make it so if you
11:55
want to make with the whole select the face and uh click on the whole wizard come out of
12:03
the sketch so select it and click on the whole
12:08
wizard now go to the position tab and uh place the whole
12:17
position and now select the dimension tool and make this uh phase
12:24
normal now it is a 22 so select this and this
12:30
and uh add a 22 mm
12:35
22 and uh this is of 59 so use this and
12:42
this as a 59 and make it
12:48
symmetric select this and this and give it uh 59 / by 2
12:59
and now select this and this and add it a
13:06
horizontal relation so this is the position of our hole now we will switch to the ho type
13:13
and we will select a plain drill hole type is a drill size and uh this is
13:20
of a drill size of eight so we will select the 8mm drill
13:34
and now in the end condition we can select up to surface
13:40
and uh select this bottom surface and uh say
13:45
okay now we will create these two holes this and this so I will select the
13:53
face and uh click on the sketch and then make it a
14:01
front or rotate it and from here make this phase
14:06
normal and now let's check the whole size so this is also D 8 hole of 80
14:15
mm so we will come out of the sketch and we will make with a whole wizard click
14:22
on the whole wizard now go to the positions Tab and
14:29
uh place the position Here and Now give the dimension so this
14:36
is the 10 mm from this age so select this and
14:45
this with the 10 mm and uh from this to this is of
14:55
0mm Let's uh Zoom it so so it is not 80 it is a
15:01
60 give the 60 mm and now we will make this whole symmetric
15:08
so from the center I will give a 30
15:15
mm and now I will select this Center points and this Center
15:22
points and uh add a horizontal relation select this and this and add a
15:28
horizontal relation say okay and come out of the sketch so
15:34
here we have to define the hole so hole is there but uh in in
15:41
conditions first set to the Blind and select up to surface and then we will uh
15:49
select uh this interface and say okay now place our model to the
15:58
isometric View now if you see our model from this
16:03
orientation as per the isometric so we can see that uh we have
16:09
successfully converted this autographic drawing into the 3D models and now we
16:14
will uh create this part drawing so I will save this model and uh create our
16:22
drawing I have saved my model now I will uh create a new file and I will select
16:29
this my A3 template and say
16:34
okay and now we will uh first place this uh view so we will go to the
16:43
model and set our model to the right
16:48
orientation so I will set my model to this orientation and uh go to my
16:56
drawing and here I will uh place the current
17:06
view now if you see the scale is larger
17:11
so I will click on the custom scale let's make it a
17:18
shorter and now let's uh change our angle of projections to the third
17:26
angle apply changes and now we will click on a projected
17:33
View and place our
17:40
views and now I will uh move this to this side and
17:47
now if you see so we will take a section from here
17:52
because this two holes are cutting so section is from
17:57
here so so I will uh select my view and go to the section
18:03
View and here I will select this and click on
18:09
okay and uh say okay so you can see that uh section view has been placed and now
18:18
I will uh make this font equal so I will go
18:25
here and uh Let's uh change
18:43
it so here I will uh make it a
18:48
16 and say okay now let's uh give the dimensioning so first we will give our
18:55
parent view so here first Di iion is of 40 go to The annotation tab select the
19:04
dimensions select this H and this age and here it is a
19:12
40 now I will uh make this uh Precision
19:18
zero and now from this AG to this Center is off for
19:23
22 so select this and this is offer 22
19:32
2 and uh from ho to whole is of 59 select this and
19:43
this and place at the top click on
19:51
okay so this is the 59 and this is of a 38.
19:59
6 select this and this and give it a
20:08
38.6 now here it is a 17 mm so we will select this H and this and provide the
20:18
dimension of 17
20:23
mm and now from this to this
20:30
this is of 18
20:35
mm now I will press the control key and
20:41
select all these four dimension and I One a time I will make
20:47
it a round off okay and now here is a 2
20:52
R3 select smart Dimension so this is is R3 and
21:01
uh I will make it uh zero and here in
21:07
bracket I will
21:14
mention in bracket here I mention
21:20
2X and same way
21:25
here I will make it a round off and and uh in a
21:32
note I will give the
21:40
2x now here is a diameter so we will select
21:47
this diameter and uh we will uh make it a 2X
21:54
two locations and make this value round
22:01
off so we have given all the dimension of our base view now let's move to the
22:08
top view so here one thing which we can do
22:13
is we add a symmetricity symbol so equal symbol so it is a symmetric
22:21
from the center line and we will also add the center line so this 59 is
22:26
symmetric this uh 39 Dimension is also symmetric so we will add the symmetric
22:33
symbol and this 40 is also symmetric at symmetricity now when we
22:42
are uh giving the symmetricity symbol so this 59 Dimension is symmetric so we
22:48
have to insert a center line so select the center line select uh this H and
22:54
this H and click on okay and we will also so stretch this center line now
23:02
let's move to the this View and here slot position is
23:08
of 11.5 and 12 select smart
23:14
Dimension so 11.5 and we will uh make this Precision
23:20
to the one and this uh cut is off 12
23:26
mm and uh from uh position from this age is of uh
23:35
15 and uh from this to this is of 50 now
23:43
I will press the control key and select three dimensions and we will round off it now
23:51
here is of radius of R3 we will give the R3 and make it round
23:59
off and in bracket we will mention the
24:09
4X and uh total length is of uh 80 mm and uh we will make it
24:17
a roundoff
24:25
now let's uh arrange our view so we will uh move this view to the little bit down
24:32
and now let's uh give Dimensions to the this a section view so first thing which
24:39
we will do we will uh insert a center line to insert the center line select
24:45
this age and this
24:51
age and uh insert a Center Line select
24:56
view similar L here now here if you see this hole is
25:03
not cutting because we have took the pH so it should be cut so we will uh little
25:08
bit modify our model
25:14
so we will go to our
25:19
model so here this is not cutting to the fillet
25:26
so we will uh select this hole and uh instead of up to
25:32
phas we will uh change its in condition so here uh we will go and
25:39
instead of up to pH we will set a blind and here let's uh increase the
25:50
value let's make it 10 mm now say
25:56
okay now we will uh switch to our
26:02
drawing so you can see that it is updating now it is a perfect so this is our 5mm thickness so
26:10
select smart Dimension and uh provide the 5mm and this is of
26:17
R3 outer and uh R3
26:24
inner and uh total height is of a 45 so select this age and
26:31
uh top H provide to 45 and this thickness is of 5 mm so
26:39
select this and uh this and provide the 5
26:46
mm and this fillet is of uh so here all fillet of R3 so instead of giving at all
26:55
places I will make it a typical and uh bracket here I will uh write the
27:03
typ and uh make this round off now I will uh select uh this all four
27:13
dimensions and uh make it a round off and now here we will um mention the
27:20
thickness
27:29
and let's make it to round off to the zero
27:36
now here we have given R3 typical that's why we have not given this R3 Dimension
27:41
everywhere now we will give this Dimensions select this and this which is
27:49
of 35 now we will uh give the dimension of
27:58
this view so here whole to whole is of a 60
28:07
so I will uh select this 60 and uh from the age it is of
28:16
10 10 mm and uh this is off a 40 so select
28:22
this and this and give it a 40 and this is of
28:29
di two holes okay and uh this height is of 18
28:36
mm give it 18 and uh total is of
28:43
35 35 and this is off a 5 mm select this
28:50
and this of a 5
28:55
mm okay now I will uh select all the
29:01
dimensions all Dimension is selected and now I will make it to the
29:07
roundoff at a time now here we will make this 40 Dimension symmetric so for this
29:13
we will insert a center line so I will select this
29:19
Edge and this hedge and give the center line and say okay
29:28
select this and
29:34
this and say it Center Line and click on select view so Center Line is
29:42
inserted now we will uh stretch our Center Line select this line and uh stretch it
29:51
and now this Dimension is symmetric so we will provide the symmetricity symbol
29:59
select the 60 mm provide the symmetricity
30:07
symbol so you can see that we have successfully created this drawing and
30:13
now we will place the isometric model so I will go to my model
30:22
Tab and uh I will set my model to the right orientation
30:31
so we have place our model to the isometric positions and now I will go to
30:39
the my drawing sheet go to the model
30:44
tab select the model and from here I will uh select the current View and I
30:50
will place it and now here I will reduce the scale so reduce the scale
30:59
to the let's make it 1.5 and from here I will make it to the
31:07
Shaded and let's move it so this is how
31:13
we have uh successfully converted this autographic drawing to the 3D model and
31:19
we have also created the detailing with respect to
31:24
the autographic view and our isometric view is is also matching with uh our
31:30
reference drawing isometric view so this is all about this tutorial thank you for
31:35
watching and thank you for your valuable time
