Hello friends welcome to solid work
0:01
tutorial and in this tutorial we will
0:04

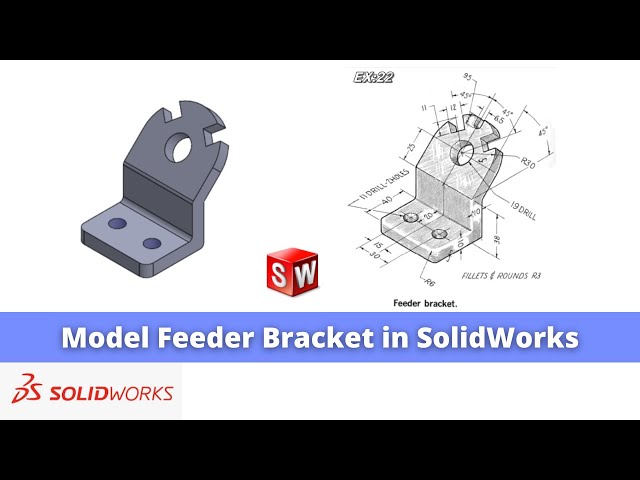

model this uh feeder bracket as you can
0:07
see that uh I have already modeled it as
0:10
per the isometric drawing and I will
0:13
show you from the scratch how you can
0:15
model this part in solid works so I will
0:18
close this file and create a new file
0:21
you can also visit my website Mac
0:23
nexus.com and you can visit this solid
0:27
works tutorials tab where I have written
0:31
so many tutorials on solid works where
0:34
you can follow the stepbystep guide to
0:39
parts if you like my method of teaching
0:42
then you can also support me on kofi.com
0:45
you can buy me a cup of coffee your
0:49
small support will help these channels
0:51
to grow and it will motivate me to
0:54
create more awesome content on solid
0:57
works so let's come back to our
1:01
tutorial so here I have created a new
1:04
file and if we closely look at our
1:06
drawing so we can find that we will make
1:09
our uh base profile on the right plane
1:13
and then we will extrude it so I will
1:16
select this right plane and click on the
1:40
shape now we will uh constrain it so
1:46
Dimension and give this value 10
1:50
mm and this uh also 10
1:56
mm and this Dimension is of 40
2:03
and uh from this line to this point is
2:36
45° so this is our uh fully constrained
2:39
profile and now we will come out of the
2:48
sketch and we will click on extrude and
2:51
here we can find the width 60 mm because
2:55
R30 so we will give here 60 and we will
3:01
here mid plane and click on
3:08
now here is a R30 so we will provide
3:13
fillet to these two edges so we will
3:16
fet and provide the value R30 and select
3:25
okay and these two corners having the
3:28
radius of R6 so we will select the
3:44
now here we will uh create a hole of D9
3:48
so we will select the phase and click on
3:50
the sketch and uh click on the
4:00
provide the diameter of
4:04
19 and we will come out of the sketch
4:08
select the sketch click on extrude
4:20
now we will uh create a cut
4:24
here so we will select the phas and
4:27
click on the sketch and this is of the
4:30
45° so we have selected this phase and
4:34
now we will make this phase
4:38
normal so this phase is perpendicular to
4:41
my monitor screen and uh we will select
4:52
line and we will make this line as a
5:04
line and we will uh provide the angle of
5:15
45° and we will also make this as a
5:24
here we will uh create a approximate
5:32
and we will select these two lines and
5:35
add a parallelity and now these two
5:38
lines one of the line will be the
5:41
parallel to construction
5:46
here we will also make these two lines
5:53
parallel and now we will uh provide the
5:56
dimension so this is of uh 12 mm
6:03
uh from the center it is of a
6:15
here from the age it is 11 mm so we will
6:20
delete this line and select this
6:24
uh H and click on convert entities and
6:30
now we will use the trim option to trim
6:38
geometry now from the age it is uh 11 mm
6:42
so we will select a point and create a
6:45
point Here and Now from this point to
6:54
mm and uh we will come out of the sketch
6:58
now we will select the sketch and and
6:59
click on extrude Cut and from here
7:02
select uh up to surface and select this
7:06
base face and click on
7:09
okay and now we will uh mirror this cut
7:12
on the other sides so select the cut and
7:28
cut and and uh here we will create these
7:34
holes we will select the face and
7:39
uh click on the sketch as it is a plain
7:42
drill hole so I am going to make with
7:45
a sketch feature so we will make this
7:52
and create a two Circle and you can make
7:57
this whole a whole wizard as well
8:04
hole so I'm making with a
8:10
here Center to Center distance is a 30
8:14
and we will select this origin to here
8:27
15 and from the age it is a 20 so we
8:31
will select this age and from origin it
8:39
now we will uh select these two centers
8:44
vertical horizontal relation add
8:47
horizontal relation select
8:50
a diameter and give the drill size of 11
9:04
equal come out of the
9:09
sketch select the sketch and click on
9:13
Cut and uh from here we will select up
9:16
to surface you can also select uh
9:26
now here is a slotted C
9:30
so we will select this phase and click
9:36
sketch and from here we will make this
9:45
here we will select a
9:50
slot and we will take the
9:53
projection and create one
10:00
now we will uh project this
10:03
uh geometry and make it construction so
10:07
that we get a center point and we will
10:09
select this point and add it vertical
10:13
and a slot width of 6.5 mm so we will
10:17
select this two vertical line and give
10:30
H if you see here it is a
10:40
so we will select this age and click on
10:43
convert entities and uh make it
10:50
construction and now select smart
10:53
Dimension and from the outer R to this
11:04
.5 and this uh slot Center to Center is
11:09
approximate we will keep it approximate
11:15
the through material
11:23
removal now we will close it select the
11:27
sketch click on extrude cut
11:30
and from here select up to surface and I
11:33
will select this back surface you can
11:35
also set the end condition through
11:37
allall as you wish and
11:41
now we will press contrl 7 for isometric
11:44
View and here is a common note fillet
11:47
and round of the R3 so we will provide
11:50
some fillets so here we will select the
11:53
fillet and select R3 value and select
11:59
this age this ede and this inner one and
12:06
okay now press the control 7 so we can
12:11
see that we have successfully modeled
12:13
this feeder bracket in solid works so
12:17
this is the very you know uh simple
12:20
tutorial for the beginner user those who
12:23
have just started learning the solid
12:26
works part modeling and this tutorial
12:28
will be very useful to understand the
12:31
basic features of part modeling in solid
12:33
works if you like this tutorial then
12:36
please like subscribe and share my
12:38
channel and also support me on
12:40
coffee.com you can buy me a cup of
12:43
coffee link is given in a video
12:45
description your small support will help
12:48
these channels to grow and it will
12:50
motivate me to create more awesome and
12:52
useful tutorials on solid works so this
12:55
is all about this tutorial thank you for
12:57
