Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04

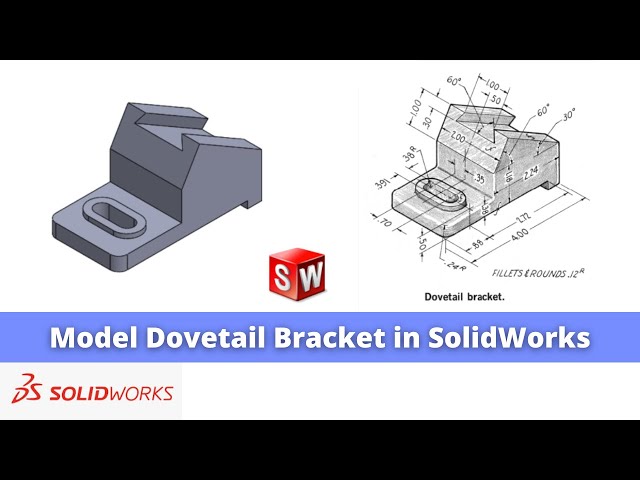

model this Dove tail bracket in solid
0:07
works as you can see that I have already
0:10
modeled it and I will show you from the
0:12
scratch how you can model this do
0:15
bracket in solid works so I will close
0:17
this file and create a new file you can
0:21
also visit my website Mac nexus.com and
0:25
you can visit this solid works tutorials
0:28
tab where I have a WR so many tutorials
0:32
on solid works where you can follow the
0:35
stepbystep guide to model the
0:39
parts if you like my method of teaching
0:42
then you can also support me on kofi.com
0:45
you can buy me a cup of coffee your
0:49
small support will help these channels
0:51
to grow and it will motivate me to
0:54
create more awesome content on solid
0:56
works so let's come back to our tutorial
1:03
so here I have created a new file and if
1:05
you see our do to bracket then we can
1:08
find that uh our major profiles comes on
1:12
a right plane so it is better way to
1:15
draw our first sketch on right plane so
1:18
we will select the right plane and click
1:20
on the sketch and we will create this
1:25
profile so I will uh start from this
1:30
origin and create a very rough
1:48
profile and now here if we
1:53
see this dimensions are in inches so we
1:56
will go to the unit and select here inch
2:00
pound seconds you can also go to the
2:03
options and uh go to the
2:07
units and change the unit from here as
2:13
now we will give our Dimensions so
2:30
and this one is a 3.6
2:38
in and this line is of 2
2:56
30 and this one is of angle
3:08
60 and this point to this line is of
3:20
2.24 and this line is of 1
3:30
this to this is of uh
3:36
1.18 and this thickness is of uh 38
3:44
in so this is our fully constrained
3:48
sketch we will come out of
3:51
it and select the sketch click on
3:55
extrude and here in the mid we will give
4:00
and we will make it mid plane click on
4:05
okay now the next thing which we will do
4:09
we will uh create this slot so for this
4:12
we will select the phase and click on
4:14
the sketch we will make this uh top
4:23
uh create a slot and now
4:31
select smart Dimension and uh give it 7
4:41
in and SL the slot Center will have the
4:52
relation and uh slot width is of
5:04
76 and this will be symmetric
5:11
here so it is already in half because we
5:15
have added the relation and
5:27
position so if you see here it is a
5:31
88 so from the age to this
5:42
uh now we will add the material here
5:46
select the sketch and click on
5:53
the12 click on okay select the face and
5:57
uh click on the sketch
6:02
slot so now we will make this phase
6:13
slot and the slots fits off
6:32
select sketch click on exclude
6:35
cut from here say through all say
6:44
now we will create this cut so for this
6:48
we will select the phase and click on
6:49
the sketch and we will make this phase
7:04
we will uh create this profile a rough
7:07
profile and here we will uh add a point
7:13
at the mid and we will add the vertical
7:17
relation with origin and uh select smart
7:21
Dimension and give it 1 in
8:00
so our sketch is fully constrained we
8:02
will come out of it select the sketch
8:07
cut and from here say true all say
8:14
okay and now here is a fillet of a
8:20
24r so I will select these two edges and
8:26
fillet and say it 2 2 4
8:37
okay so now we will press control 7 and
8:41
here is a common fillet note is
8:47
R so I'm just providing fillet
8:58
.12 so you can see that we have
9:01
successfully modeled this Dove tail
9:03
bracket in solid works and this tutorial
