Hello friends welcome to Solid Works
0:01
tutorial and in this tutorial we will
0:04
learn how to create a lofted part in
0:06

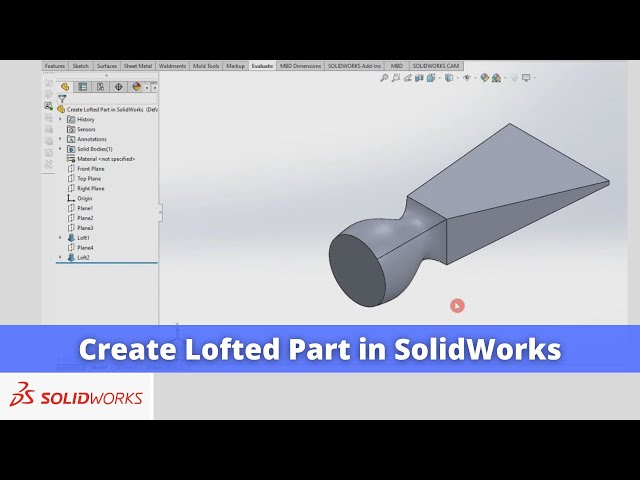

solid works as you can see that I have
0:09
created this lofted body which have the
0:13
multiple profiles like here is a
0:16
circular and then curve form and here is
0:22
taper and I will show you from the
0:24
scratch how you can model this type of a
0:27
part with the help of a loft command in
0:30
solid works so I will close this file
0:33
and I will create a new file and I will
0:34
show you from the scratch you can also
0:38
visit my website macn nexus.com and you
0:41
can visit this solid works tutorials tab
0:45
where I have written so many tutorials
0:49
on solid works where you can follow the
0:52
stepbystep guide to model the
0:55
parts if you like my method of teaching
0:58
then you can also support me on kofi.com
1:01
you can buy me a cup of coffee your
1:05
small support will help these channels
1:07
to grow and it will motivate me to
1:10
create more awesome content on solid
1:13
works so let's come back to our
1:16
tutorial so here I have created a new
1:19
file and now I will on my front plane
1:24
and I will select my front plane go to
1:26
the features and click on the
1:30
plane and I will create a plane at a
1:34
distance of 25 from my front
1:37
plane click on okay and now I will
1:41
create a two more plane from this plane
1:45
one at a distance of a 40 and
1:48
40 so I will select my front plane go to
1:51
the reference geometry click on the
1:53
plane and click on the
1:55
40 click on okay similarly select plane
2:00
click on the plane options and view here
2:04
40 so this is the plane which we have
2:09
created from our front
2:11
plane so if we click on it the plane we
2:14
can also get the distance that plane one
2:17
is a 25 distance from the front plane
2:20
plane two is 40 plane three is a
2:24
40 now we will create a
2:28
sketching we will create the sketch on a
2:30
front plane so for timing we will press
2:33
the control key and select plane 1 2 and
2:36
three and we will hide it now select the
2:39
front plane and uh right click and click
2:42
on the sketch icon now here I will uh
2:51
rectangle now I select the smart
3:04
and from mid I will give
3:14
30 now we have fully constrained sketch
3:17
on a plane one now we will hide the
3:20
plane one and on the plane
3:23
two and on this plane we will create our
3:27
sketch select the plane one and right
3:30
click and click on the
3:35
now here I will create a
3:39
circle click on Smart Dimension
3:43
and I will give diameter
3:50
50 and now I will hide the plane
3:55
one now I will on the plane two
4:00
and on this plane two we will create our
4:03
sketch we will make it uh
4:06
normal and now here I will create a
4:13
diameter will be coincidence to our
4:19
sketch so you can see that here already
4:22
taken the coincidence
4:24
relation now come out of the sketch
4:30
and uh hide this plane
4:33
two now we will on the plane
4:40
now we will draw the same circle on
4:44
plane three so we will select plane
4:47
three and click on the sketch and make
4:52
normal and we will again create a
4:56
circle of a same size
5:02
now we will come out of the sketch and
5:05
we will hide our all plane so here we
5:09
have uh four profile which we connect
5:14
Loft so click on a loft boss
5:19
base and here click on the first profile
5:23
second then third and then fourth
5:34
type keep the in constraint type as a
5:40
okay so now you can see that we have
5:43
connected our for profile with the Loft
5:47
now we will create our next
5:50
feature now here we will on our front
5:54
plane and we will create a reference
5:58
plane at a distance of
6:02
200 and here we will offset this plane
6:06
and click on the okay now we will hide
6:12
our front plane and click on our created
6:16
plane and click on the
6:18
sketch and uh make this normal and now
6:22
here we will create a rectangle so here
6:26
I create a twoo rectangle
6:33
dimensions which is the 5
6:40
from Center it will be 2.5 so I will
6:44
move it to the near to the origin now I
6:48
select the smart Dimension and I select
6:50
this line and give it
7:03
symmetric and I will give it
7:07
75 so our sketch is fully constrained on
7:10
our plane 4 we will come out of the
7:17
plane and now we will connect this pH
7:23
sketch again click on Loft B and
7:33
will put our pointer here and click it
7:40
connect this point with uh this point so
7:44
we will select the face near to the
7:52
okay so you can see that uh the face is
7:57
sketch so in this tutorial we have
8:00
learned the Loft command and we have
8:03
connected the multiple profiles using
8:06
the Loft this is all about tutorial how
8:10
to create a lofted part in solid works
8:13
thank you for watching and thank you for
