0:01
Hello friends welcome to Solid Works
0:03
tutorial and in this tutorial we will
0:05
learn Loft feature in solid works so
0:09
basically Loft create a solid in a body
0:13
by making a transition between two or
0:18
sketches if a body already contain the
0:21
features Loft feature will be mer to
0:24
them so here uh we have the three
0:27
profiles profile a profile B and profile
0:30
C and these three profiles are connected
0:34
then we get a profile like this solid so
0:38
we will see the similar example in a
0:40
solid works and we will understand the
0:43
Loft feature so let's start you can also
0:47
visit my website macn nexus.com and you
0:51
can visit this SolidWorks tutorial tab
0:54
where I have written so many tutorials
0:58
on solid works where you can follow the
1:01
step by step guide to model the
1:05
parts if you like my method of teaching
1:07
then you can also support me on kofi.com
1:10
you can buy me a cup of coffee your
1:14
small support will help these channels
1:17
to grow and it will motivate me to
1:19
create more awesome content on solid
1:22
works so let's come back to our
1:26
tutorial so here I have a
1:30
created a part and now I will uh select
1:32
the top plane and create a
1:35
sketch and here I will uh create a
1:39
rectangle I will go and click on the
1:45
rectangle and now I will give the
1:54
mm and uh I will make it a square by
1:58
making horizontal and vertical as
2:03
equal now I will come out of the
2:10
sketch now we will uh create one uh
2:15
plane and then we will create our next
2:20
profile now we select the top plane and
2:23
uh click on the plane option and create
2:27
a plane at a distance of uh 50 mm
2:33
okay and now we will uh create one slot
2:38
profile on this plane so we will select
2:48
sketch now we will uh click on the
2:51
center slot tool and create one slot
2:56
here and now we will give the dimension
3:02
length I will give 30
3:06
mm and uh slot width will be
3:16
25 and now we will close the
3:22
sketch now we will uh switch to the
3:25
isometric View and uh off this plane
3:30
and now we will click on the Loft boss
3:35
base and we will select this profile
3:39
first one and second one and we will on
3:47
preview and you can see that uh a loft
3:51
has been created to connect slot and
3:55
square now we will edit the Loft feature
4:01
and here is a option of a guided
4:06
curve here you can see that uh this
4:10
uh line which you are show seeing in the
4:15
automatically solid works calculated the
4:18
guided path but if we want we can Define
4:22
the guide curve for this we will uh
4:28
yes and we will go to the sketch and
4:37
line select this point and this
4:42
point and now we will come out of the
4:46
sketch and now we will again go to the
4:49
features tab click on the
4:52
Loft select paste profile and top
4:57
profile and here on a guided curve we
5:04
sketch so you can see that a 3D sketch
5:07
which we have created is acting like a
5:15
curve so you can draw the guided curve
5:18
as per your choice how you want to
5:23
path now we will again delete our Loft
5:28
and add one more features to our
5:36
Loft now we will again select our top
5:39
plane and uh click on the plane and here
5:44
we will add plane at a distance of 100
5:50
mm so you can see that uh a plane has
5:54
created now we will say okay we will
5:57
select our top plane and create a
6:00
sketch and now we will create a
6:08
circle and we will give the
6:18
mm now I will click on
6:22
okay hide the DAT temp
6:25
plane now switch to the isometric by
6:30
now we have three different profile one
6:33
is a square second is a slot and third
6:35
is a circle and we will connect all
6:38
these three profile with the help of a
6:48
base select the slot and select the
7:05
now click on the rebuild
7:08
option so that our created sketch get
7:12
rebuil now click on the Loft
7:16
base click on the base
7:19
profile click on the slot and click on
7:37
now we will click on the rebuild symbol
7:40
and then we will again click the Loft
7:45

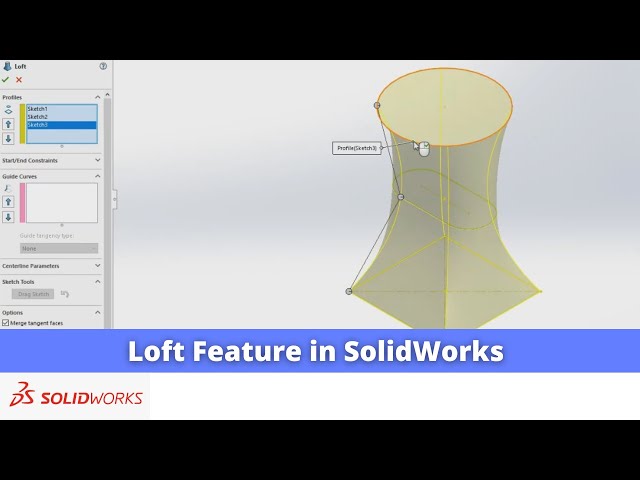

profile click on the slot profile and
7:48
click on the circle profile so you can
7:51
see that uh our loft is created and we
8:01
you can see that this curve profile is
8:03
automatically calculated by the solid
8:06
works with the help of our three profile
8:13
square if you want you can create a
8:17
guide curve depends on the smoothness
8:20
you want so this is how to create a loft
8:25
profile in solid works this is all about
8:30
thank you for watching and thank you for
