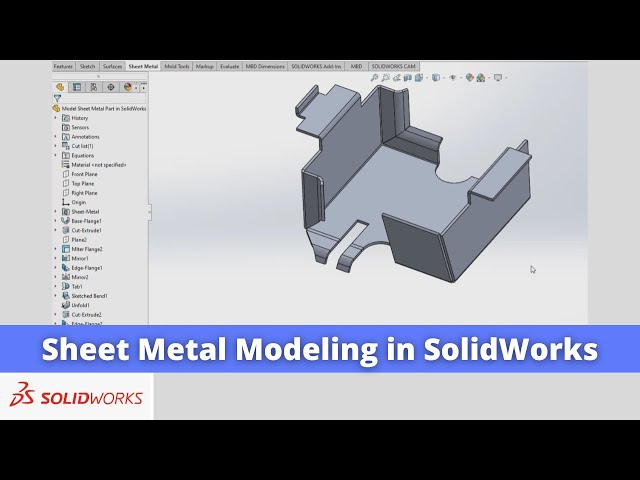

Sheet Metal Modeling in SolidWorks | SolidWorks Tutorial | SolidWorks Modeling |
Apr 24, 2025
#SolidWorks #solidworksmodeling #solidworkstutorial In this video I have explained Sheet Metal Modeling in SolidWorks. ▶️ Download This Tutorial Source File From my Ko-Fi Store-: https://ko-fi.com/s/d8a110f255 ▶️ Visit my website for more info-: https://mechnexus.com/ ▶️ The Complete SolidWorks Course : From Zero to Expert!-: https://www.udemy.com/course/solidworks-complete-course-zero-to-expert/?referralCode=B30458218EA1375DDB6E ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus 👉 Indian User can Support My Work Using my UPI ID: amar.patel456@ybl & amar.patel456@axl All donations will be used to purchase equipment to improve my productivity and increase the quality of the content that I produce. Your kind support will help to grow this channel. Even if it's just enough to buy me a coffee every little helps and this will be repaid in full through my sharing of knowledge.
View Video Transcript
0:00
Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04
learn the sheet metal modeling in solid
0:07
works as you can see that uh I have
0:09
already model a sheet metal part and I
0:13
will show you from the scratch how you
0:15
can do the same I have choose this model
0:19
because this model covers all Essentials
0:23
sheet Metals tools available in solid
0:26
works so let's start our
0:28
tutorial you you can also visit my
0:31
website macn nexus.com and you can visit
0:35
this solid works tutorials tab where I
0:38
have written so many tutorials on solid
0:42
works where you can follow the step by
0:44
step guide to model the
0:48
parts if you like my method of teaching
0:51
then you can also support me on kofi.com
0:54
you can buy me a cup of coffee your
0:58
small support will help this channels to
1:00
grow and it will motivate me to create
1:03
more awesome content on solid works so
1:07
let's come back to our
1:10
tutorial so here I have created a new
1:14
file and uh if sheet metal tab is not
1:17
active then right click and click on the
1:20
tab
1:21
options and check mark the sheet
1:25
metal now we will select the front plane
1:29
and click on the
1:31
sketch and we will select the line
1:35
tool to create a
1:43
line now I will give the horizontal
1:46
dimension of uh
1:52
180 and vertical 8
2:00
and I will add the
2:05
relation I will press equal symbol and
2:08
click on this 180 Dimension and divide
2:11
by
2:15
two now this one is also
2:19
a so we will select this one and this
2:23
one and make it
2:26
equal now we will come out of this
2:30
sketch so this is the base profile of
2:32
our sheet metal part we will select the
2:36
sketch click on the
2:38
flange and distance we give
2:52
75
2:55
75 and
2:57
uh thickness is 3 mm M and radius is 1
3:02
mm and now click on
3:05
okay so this is the base
3:10
flange now if you see here the sheet
3:13
metal if you click on
3:16
it you will get the default parameters
3:19
for your sheet like here I have used a 3
3:24
mm thick sheet and its radius is a one
3:30
so this is the default sheet metal
3:37
setting and in sheet
3:40
metal when you make any flanges or base
3:43
features check every features with the
3:46
flat
3:48
pattern so let's select the face and
3:51
click on the flat pattern so you can see
3:54
that my part is
3:57
unfolding so when you make the features
4:01
cross shake it if it is
4:04
not flat patterns then there is some
4:08
error in your
4:10
model now switch our model to the
4:15
isometric now we will select the stop pH
4:19
and click on the
4:23
sketch and we will use a circle tool and
4:27
we will create a circle at the mid for
4:31
this we will switch to the top view if
4:33
you snap over the edge you will find the
4:36
midpoint create a
4:38
circle select the smart
4:42
Dimension and give the diameter of
4:47
40 close the
4:50
sketch press Ctrl
4:52
7 and
4:55
now click on the cut option
4:59
and from drop down select through
5:06
all now in our next step we will use the
5:10
milter flange option for this if you go
5:14
to the sheet metal tour area you will
5:17
get here the milter
5:19
flange and select this
5:23
age so you can see that UCS is pointing
5:27
Here and Now
5:30
we will switch to the top
5:31
view or we
5:35
will make our view like this and
5:43
now now we will set our model to the
5:46
bottom View and we will create a
5:51
sketch so
5:53
here I will uh first create a line
6:00
and
6:03
then I will use the tangent
6:10
Arc and then I will create one more
6:18
line and now I will uh add the tangency
6:26
relation and I will give the dimension
6:37
let's give it a
6:40
20 and this radius R
6:46
10 and this align Dimension
6:56
six and from this line to this
7:02
point is a distance of a 10
7:07
mm click on
7:11
close so you can see that
7:15
uh milter flange tool is active now
7:20
click on this
7:21
propagate so it will be also apply on
7:25
the bottom hge
7:29
now click on
7:32
okay and we will hide this plane so this
7:36
is how to use the milter flange
7:44
option now we will completely mirror our
7:49
body for this we will move to the
7:53
features
7:56
tab expand it use the mirror
8:01
and here mirror plane or face select
8:03
this
8:07
face
8:08
and we will select this bodies to mirror
8:11
and we will select our whole
8:14
body and click on
8:17
okay so you can see that our body is
8:19
completely got mirror on the other
8:22
side now we will uh create a
8:27
flange select this a
8:44
H now we will create a flange to select
8:48
the age and click on the flange
8:54
toolbar and reverse the
8:57
direction click
9:01
and now here is the flange
9:04
detail now we will give the flange
9:09
length 30
9:12
mm and we will select here material
9:17
outside and we will click on the
9:21
offset and offset distance will be the
9:24
15
9:26
mm so let's understand the terms the
9:29
offset distance is that from this age
9:32
this flange is
9:35
a offset means from the age it is a 15
9:40
mm offset and our flange length is a 30
9:43
and material is
9:48
outside now we
9:51
will close it and now we will modify
9:55
this flange
9:59
so to modify the flange sketch if you
10:02
expand it you will see here a sketch
10:04
which you can edit just edit on the
10:09
sketch
10:11
and you can make it as per your choice
10:15
how much Offset you want in my case I
10:19
want 36 so I will select smart
10:23
Dimension select this age
10:29
and this
10:31
line and add the value
10:36
36 similarly select this
10:41
line and this
10:45
age and add the
10:49
36 click on
10:57
okay now if you see in a normal so this
11:01
flange length is a 30 and it is a 36 mm
11:06
offset from the both the side so this is
11:09
how we can create a flange and we can
11:12
modify
11:14
it now our next step is we will mirror
11:17
this flange on the other sides so we
11:20
will move to the features
11:22
tab click on the mirror
11:25
option and here on a mirror fa face and
11:29
play then expand our model and we have
11:32
the mid plane which is a right plane
11:34
select it and from here select features
11:38
to
11:40
mirror so select on this flange which we
11:44
have created and click on okay so you
11:47
can see that our flange is mirror on the
11:51
other
11:52
side now we will add the material on
11:55
this flange so select it
11:59
it's toop face and click on the
12:02
sketch and switch to the normal
12:06
view click on the
12:11
rectangle and now give the dimensions
12:14
select the smart
12:16
Dimension and give it
12:21
40
12:24
and give
12:26
it 20
12:30
and
12:32
now select on point and insert a
12:38
midpoint and select this point and our
12:42
origin and give it the horizontal
12:45
relation so it is fully constrained now
12:49
now come out of the
12:52
sketch now select the sketch switch to
12:56
the sheet metal toolbar
12:59
and click on the
13:03
flange and it automatically took the 3mm
13:06
thickness which is our default
13:08
parameter click on
13:11
okay so here you can see that tab is
13:18
added now our next step is to bend the
13:23
sheet
13:24
metal with the help of a
13:27
line which is known as a CED
13:31
Bend so for this we will select the
13:35
phas or we can select directly the
13:39
sketch Bend option and then select the
13:41
face and now we will switch to the
13:44
normal
13:45
View and we will draw a
13:48
line select the line
13:52
tool draw a line and position this line
13:57
10 mm from this age so click on Smart
14:01
Dimension and give it 10
14:08
mm and we will come out of the
14:18
sketch in Bend parameter this is the
14:21
fixed phas so we wanted to make this
14:25
face is fixed and this one is a
14:27
band and we will select the material
14:32
outside and say okay so you can see that
14:36
we have Bend this flange with the help
14:41
of a sketch
14:42
line now let's move to the next step now
14:46
we will learn how to unfold the bends in
14:50
a solid box so click on the
14:54
unfold select the fixed
14:57
face and S select the bend which you
15:00
wanted to
15:01
unfold and click on okay so you can see
15:06
that this bin got
15:10
unfolded now we will make a cut on this
15:14
face so click on the
15:17
top and uh select this face and create a
15:25
sketch draw the rectangle
15:32
and select this line and this ede and
15:36
add the corar
15:38
relation and position
15:42
this 14 mm from this
15:45
age select smart Dimensions select this
15:48
line and select this
15:51
ede and give it 14
15:54
mm and it's
15:57
uh L length
16:01
is 14 mm sorry width is 14 mm and length
16:06
we can keep approximate let's see 90 mm
16:11
and now we will come out of the
16:19
sketch and now we will use
16:23
the extrude
16:27
cut and and we will say through all and
16:31
say
16:39
okay so this is how we have made the
16:44
cut for making this cut we have unfold
16:47
now we will use the fold
16:51
option so this is a fixed face and bend
16:54
to be unfold so this is the bend
17:09
so you can see that it got folded
17:20
again now we will uh create a flange
17:25
select the age and click on the flange
17:30
and now here the flange angle we will
17:33
give
17:36
75 and flange distance is
17:45
85 and here we will keep the material
17:52
outside now we will expand it offset we
17:56
do not want
18:01
and here custom relief
18:08
ratio we will give
18:15
the3 now we will say
18:19
okay so this is how to create a angular
18:24
flange now we will close this area with
18:28
the help of of a close Corner
18:31
option so if you go in a corner you will
18:34
see the Clos Corner
18:36
option select this
18:38
phase
18:40
and phase two this one and
18:44
here we will use the first option and we
18:48
will say
18:50
okay so you can see that area has been
18:57
closed so now we will do the flat
19:04
pattern so our part is getting flat
19:08
pattern which means that our part is
19:11
technically correct if you are
19:13
not if your part is not getting flat
19:16
pattern this means that uh Your Parts
19:19
having the
19:21
error so this is how to check the
19:24
validity of sheet metal
19:27
parts so this is this is all about how
19:29
to model a sheet metal part in a solid
19:32
works thank you for watching and thank
19:34
you for your valuable time
