Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:05

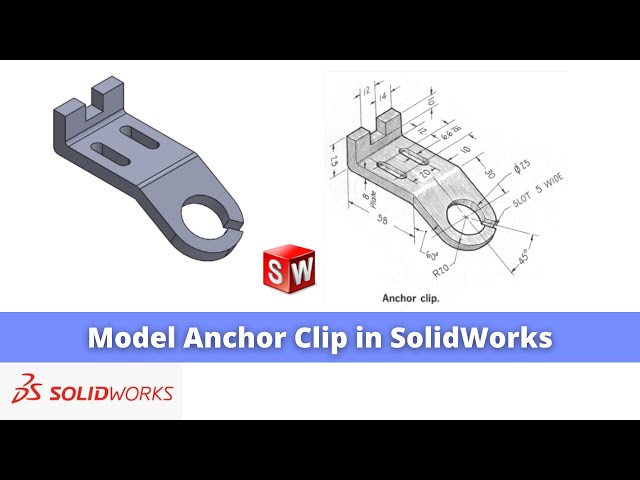

model this uh anchor clip as you can see
0:08
that uh I have already modeled it and I
0:10
will show you from the scratch how you
0:12
can do the same in solid works so I will
0:15
close this file and create a new
0:19
file you can also visit my website macn
0:22
nexus.com and you can visit this solid
0:26
works tutorials tab where I have a
0:30
so many tutorials on solid works where
0:33
you can follow the stepbystep guide to
0:38
parts if you like my method of teaching
0:41
then you can also support me on kofi.com
0:44
you can buy me a cup of coffee your
0:48
small support will help these channels
0:50
to grow and it will motivate me to
0:53
create more awesome content on solid
0:55
works so let's come back to our tutorial
1:00
so here I have created a new file and if
1:03
we see the drawing of our anchor clip
1:05
then we will draw this uh base
1:09
profile on this front plane we will
1:13
select the front plane and click on the
1:15
sketch and now we will draw the
1:37
and uh then we will give the
1:49
so here the First Dimension which we
1:51
will give is the vertical dimension of a
1:57
25 and this thickness is of 8
2:13
now here we will make this two line as a
2:17
parallel so we will select these two
2:20
lines and click on the
2:23
parallel select smart Dimension from
2:26
this point to this line is of 58
2:36
uh this line Dimension will be of
2:52
mm and now we will give the angle
3:02
60° so now you can see that uh our
3:08
constraint now we will come out of the
3:15
extrude and here we will select the mid
3:19
plane and give a distance of
3:27
okay and now if you see here here here
3:30
is a radius of R20 so we will select the
3:34
fillet and give the value
3:38
R20 and we will select these two
3:48
now here we will give the
4:17
here we will give the radius as
4:34
and inside we will give the approximate
4:46
now we will uh create this cut so for
4:50
this we will select the phase and click
4:57
rectangle and now we will give the
4:59
dimensions select smart
5:03
Dimension and from the age give the 14
5:15
mm and uh this width of slot is of 12
5:23
mm and now we will come out of the
5:26
sketch select the sketch click on
5:31
putut and from here say through
5:38
okay now we will select the face and uh
5:46
cut and from here say it
5:52
normal and we will uh select the sketch
6:09
and we will create a construction
6:16
line create a line like this and uh make
6:21
construction and from here we will
6:24
create one more construction line
6:31
and give the angle of
6:41
45 and here slot is 5 mm wide
6:51
so we will create a two line
7:12
line will be parallel to each other and
7:15
then one of the line will be
7:20
construction and now we will select this
7:24
point and this outer R and add the
7:27
coincidence constraint s similarly this
7:33
constraint and now we will uh give the
7:38
dimension so it is a 5mm
7:42
white and uh from this construction line
7:52
2.5 and now we will uh select a
8:01
create an arc and this Arc will be equal
8:07
Edge so select the arc and give here
8:12
equal and here we will uh trim
8:21
line so our uh sketch is fully
8:25
now we will come out of the
8:28
sketch click on extrude
8:31
Cut and uh from here say it through all
8:36
or in better way we will select up to
8:45
okay now press Ctrl 7 for isometric View
8:50
and here we will create these two slots
8:53
so select the face and uh we will create
9:03
so this is a rough slot now we will
9:10
view make it normal and
9:14
now this uh slot is of 6.6
9:23
white so first we will give it 6.6
9:38
now pitch between these two slot is of
10:27
now we will select these two
10:47
to again edit it select smart
10:52
Dimension and give it 18 mm
11:02
select this point and this
11:16
will make it symmetric so from origin to
11:26
mm so here is our uh slot is uh fully
11:34
constrained and uh we will come out of
11:38
sketch now select the sketch click on
11:45
Cut and from here select uh up to
11:54
okay now press control 7 so you can see
11:58
that we have have successfully modeled
12:00
this anchor clip in solid works from the
12:03
scratch and this tutorial is designed
12:06
for the beginner user those who have
12:08
just started learning the part modeling
12:10
and if you like this tutorial then
12:11
please like subscribe and share my
12:13
channel and also support me on
12:15
coffee.com link is given in a video
12:18
description your small support will help
12:21
this channels to grow and it will uh
12:23
also motivate me to create more awesome
12:25
content on solid works thank you for
12:28
watching and thank you for your avable
