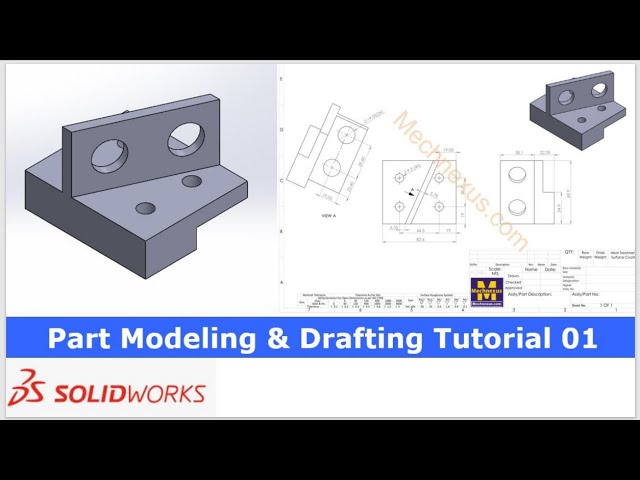

Part Modeling & Drafting Tutorial 01 | SolidWorks Tutorial | SolidWorks Part Modeling |
Dec 14, 2024
#SolidWorks #solidworksmodeling #solidworkstutorial In this video I have explained How to Model Part in SolidWorks. ▶️ Download This Tutorial Source File From my Ko-Fi Store-: https://ko-fi.com/s/d8a110f255 ▶️ Visit my website for more info-: https://mechnexus.com/ ▶️ The Complete SolidWorks Course : From Zero to Expert!-: https://www.udemy.com/course/solidworks-complete-course-zero-to-expert/?referralCode=B30458218EA1375DDB6E ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus 👉 Indian User can Support My Work Using my UPI ID: amar.patel456@ybl & amar.patel456@axl All donations will be used to purchase equipment to improve my productivity and increase the quality of the content that I produce. Your kind support will help to grow this channel. Even if it's just enough to buy me a coffee every little helps and this will be repaid in full through my sharing of knowledge.
View Video Transcript
0:00
Hello friends welcome to solid work
0:01
tutorial and in this tutorial we will
0:04
model this part as you can see that uh I
0:07
have already model it and I will show
0:10
you from the scratch how you can model
0:12
this part so this is the very simple
0:14
tutorial for beginner user we will not
0:17
only create a model but we will also
0:19
create a 2d drawing so let's start our
0:23
tutorial I will close this file and
0:25
create a new file you can also visit my
0:29
website Mac access.com and you can visit
0:33
this solid works tutorials tab where I
0:36
have written so many tutorials on solid
0:40
works where you can follow the step by
0:42
step guide to model the
0:46
parts if you like my method of teaching
0:48
then you can also support me on kofi.com
0:51
you can buy me a cup of coffee your
0:55
small support will help these channels
0:58
to grow and it will motivate me to
1:00
create more awesome content on solid
1:03
works so let's come back to our
1:07
tutorial so here I have created a new
1:10
file and if you see our model so we will
1:14
create this base profile on a right
1:16
plane so I will select this right plane
1:19
and click on the
1:23
sketch and
1:25
now I will uh select a rectangle tool
1:31
and create a
1:32
rectangle and then I will select a line
1:42
tool and now I will make this
1:48
horizontal and uh then I will select a
1:51
trim tool to trim these two entities and
1:55
now let's uh constrain the dimension
2:00
select smart
2:03
Dimension and provide this
2:13
69.9 and the vertical dimension of
2:18
uh
2:22
22.35 and uh this dimension of uh 12.7
2:30
and uh this
2:32
Dimension is of
2:37
34.9 so our profile is fully constrained
2:42
now I will come out of the
2:47
sketch and click on
2:52
extrude select the
2:55
profile and uh click on the mid plane
2:59
and provide the this uh
3:07
82.6 and
3:09
now we will uh create this uh feature on
3:12
the top so I will uh select this top
3:15
face and click on the
3:20
sketch go to the
3:22
normal and here I will set my model with
3:26
respect to the orientation
3:30
and
3:31
uh I will
3:34
uh select a line
3:37
tool create a line at
3:44
angle and uh close the
3:49
loop now here this is of
3:53
5.78 but this and this line are the
3:56
parallel so I will select this and uh
4:00
this and uh add a parallel constraint
4:04
select the smart
4:06
Dimension and provide it
4:13
5.78
4:15
and from uh this point to this age is of
4:26
57150
4:28
and from from
4:30
this to this is of uh
4:39
19050 so our sketch is fully
4:42
constrainted we will come out of
4:46
it and now we will extrude it to the
4:50
38.1 select the sketch click on
4:56
extrude and uh give it a
5:01
38.1 click on
5:04
okay the dimension we can see
5:07
here now let's move to the next feature
5:12
which is to create these two
5:14
holes so I will uh select this phase and
5:18
uh click on the
5:20
sketch and uh I will make this phase
5:25
normal and
5:27
here better I will uh draw an
5:31
isometric
5:33
so I will uh create two
5:37
circles and uh let's give the dimension
5:40
from this age so select smart
5:43
Dimension from this age to
5:47
this is of uh
5:51
22.4 and
5:55
uh select this H to this
6:03
is of uh
6:11
19.05 and this uh
6:14
Dimension is of uh
6:24
1905 so if we see in a drawing we can
6:27
see here 19.05
6:30
and now uh we will add the equal
6:32
relation select this circle and this
6:35
circle and uh provide the equal
6:38
relation say
6:41
okay but here I will add the horizontal
6:49
relation now let's see what is on
6:55
constraint so distance between this hole
6:57
to this hole is of a
7:00
39.6 which is missing so I will select
7:04
smart
7:05
Dimension this to
7:08
this
7:12
39.6 so now our uh sketch is fully
7:17
constraint now I will uh select the
7:19
sketch click on extrude
7:23
Cut and uh from here I will select uh up
7:27
to surface so I will select this back
7:30
surface you can also select a through
7:32
all no
7:36
issue
7:38
now we will uh create this Four Hole on
7:41
the
7:43
top so for this I will select this top
7:46
phase click on the sketch and I will
7:49
make this phase
7:52
normal and now I will select a rectangle
7:57
tool create a rectangle
8:00
and uh I will select
8:04
all sketch and uh make it a
8:08
construction and now first we will
8:11
position this uh
8:13
rectangle so we can see here it is a 19
8:16
mm from the age so I will uh select the
8:20
smart
8:22
Dimension select this to
8:25
this and provide it 19 mm
8:30
and
8:32
uh this to this is of
8:38
44.5 and uh this position is a 19 so
8:43
select the age select the
8:47
line provideed 19
8:50
mm and
8:52
uh this is of 31.7
8:59
now this is the plain
9:02
hole of uh 9.5 so I will make with a cut
9:08
so I will select the circle and create a
9:12
four
9:21
circles and this is of a 9.5 so select
9:24
the smart dimension
9:31
and give it
9:35
9.5 and
9:37
uh select uh all by pressing the control
9:45
key
9:48
and made it a equal
9:51
relation now our uh sketch is fully
9:55
constrained so we will come out of it
10:00
and uh click on
10:02
Cut and uh I will say it through
10:07
all say
10:12
okay so you can see that we have
10:16
successfully modeled this
10:18
part from the scratch now I will save
10:23
our file and we will create a 2d
10:26
drawing so I will click on Save
10:37
so I will give it a revision
10:42
R1 and
10:45
now I will uh click on the new
10:49
file and uh go to my drawing template so
10:53
in this case I will select the A3
10:55
template
11:01
so here is our A3 template now I will go
11:06
to the drawing view click on the model
11:09
and select our
11:11
model and now
11:13
here I will uh place my
11:19
model
11:22
so this is our base view so we will uh
11:25
say okay and uh we will delete this View
11:31
and now I will move it so if we see in
11:35
our drawing this is the auxiliary view
11:39
this
11:40
one and this is the side view so I will
11:44
click on the projected
11:51
view now let's say okay now here we will
11:56
uh go to the properties and uh
11:59
see our angle of projection so I will
12:02
keep my angle of projection to the third
12:04
angle so you can see that my view has
12:07
been
12:08
change and now we will place the
12:11
auxiliary view so click on the auxiliary
12:14
view select this
12:18
age and uh place the
12:26
view now let's uh move our
12:31
view and we will move this Arrow to Here
12:35
and Now Let's uh give the dimension so
12:38
this is of
12:40
19.05
12:41
so click on the smart Dimension select
12:45
this point and this
12:48
line and uh give the
12:53
dimension
12:54
1905 and this is the
12:56
19 so again select smart
12:59
Dimension from this to this is of
13:04
19 and let's make a this Precision
13:09
zero and uh
13:13
now from this to this is of
13:18
31.7 and I will make it to the one
13:21
decimal
13:22
place now total is a
13:27
82.5 so
13:29
82.6 it
13:32
is now I will make it to the one
13:36
precision and uh horizontal position of
13:40
this hole is of 19
13:43
mm and uh I will click on the
13:49
none and uh
13:52
44.5 whole to whole so select this and
13:56
this and give it 44.
13:59
5 and uh make it to the one
14:03
digit and
14:06
now from this ho to this is is of
14:10
6.35 so I will move
14:23
it
14:25
now I will select a smart dimension
14:29
now I will select this point to this is
14:33
of
14:35
6.35 now this rib of a
14:38
5.78 so I will select
14:41
this and this of a
14:46
5.78 and here we will give the whole
14:50
size which is of D 9.5 so select this
14:57
whole give it
14:59
9.5 and uh make it to the one
15:03
precision and in a bracket we will give
15:06
the
15:08
quantity which is
15:13
4X now so base view Dimension is
15:17
completed now move to the side
15:22
view and let's Zoom our side view so
15:25
this is of
15:27
38.1 so select this H and this H and
15:33
38.1 now make it to the one
15:36
precision and uh this is a
15:40
22.35 select this age and this age and
15:46
22.35 this is a
15:48
34.9 so just select the age
15:52
34.9 and this is of a one decimal place
15:57
and now I will give the total height
16:01
select this and this and this is a
16:13
69.9 now let's uh move to the auxiliary
16:18
view so in auxiliary
16:22
view we will uh delete this
16:25
Center and go to The annotation tab
16:27
click on the center mark
16:30
select this and uh
16:34
this and
16:37
uh align
16:39
it click on okay and now select smart
16:45
Dimension from
16:47
this to this is of
16:53
22.4 and from this to this is of 39.
16:59
6 and now give the diameter of
17:05
19.05 but here in bracket we will
17:08
mention the quantity two so make it uh
17:15
2X and now from this to this is of
17:22
19.05 and let's align the dimension
17:44
now we will uh place the isometric
17:47
view so here we will go to
17:50
the model
17:53
Tab and uh press CR 7 for isometric View
17:58
and now now we will go to the drawing
18:01
Tab and
18:03
uh click on the model
18:06
view and we will click on our model and
18:09
here is option of current model
18:15
view and now we will uh say
18:19
okay now
18:22
here let's uh move our
18:27
drawing and we will click on our
18:30
isometric View and uh we will go with a
18:35
shaded and let's move our base view to
18:39
the left hand
18:41
side so this is how we have uh
18:45
successfully created this model from the
18:49
scratch and we have also created a
18:51
drawing which is a matching with our
18:53
isometric view so this is all about this
18:57
tutorial
18:58
thank you for watching and thank you for
19:00
your valuable time
