Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04

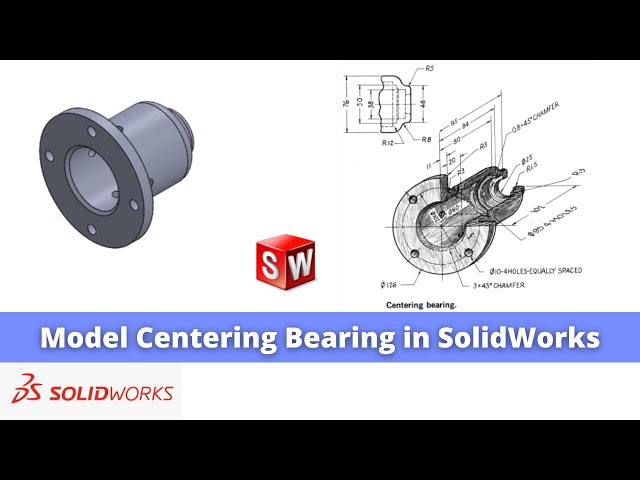

model this centering bearing in solid
0:06
works as you can see that I have already
0:09
modeled it and I will show you from the
0:14
view as you can see that I have exactly
0:17
did it as for our drawing and I will
0:20
show you from the scratch how you can
0:23
model this centering bearing in solid
0:25
works from scratch so I will close this
0:28
file and create a new file
0:31
you can also visit my website macn
0:33
nexus.com and you can visit this solid
0:37
works tutorials tab where I have written
0:41
so many tutorials on solid works where
0:44
you can follow the step by step guide to
0:49
parts if you like my method of teaching
0:52
then you can also support me on kofi.com
0:55
you can buy me a cup of coffee your
0:59
small support will help these channels
1:01
to grow and it will motivate me to
1:04
create more awesome content on solid
1:07
works so let's come back to our
1:10
tutorial so here I have created a new
1:13
file and now the first thing which I
1:16
will do is to select this right plane
1:24
and we will create a rectangle at the
1:33
here and we will delete this
1:37
line and we will again select the line
1:41
tool and create the approximate
1:54
profile and here first thing which will
1:57
do select this point and this point
2:04
and we will create a construction line
2:08
here and make it for the
2:11
construction and length I will give
2:27
102 and now we will will give the
2:32
diameter which is of a diameter
2:37
126 and this thickness is of 11
2:46
mm now we will extend this line some
2:49
approximate distance and give the
3:12
76 and now I will move this Dimension
3:16
little bit outside so you can see it
3:24
now we will select a line tool
3:31
and draw the approximate inner
3:49
profile now I will select this and this
3:58
relation select smart Dimension and give
4:03
0 you can parallel check with
4:06
drawing and now we will select uh this
4:09
line and this Center Line and add the
4:19
50 and this one is of a diameter 38
4:45
now we will select this line and
4:49
uh this line and give it uh 84
5:01
and from this line to this
5:15
now we will select a three-point
5:24
Arc select this line and this Arc and
5:37
R5 then we will again select a
5:45
Arc select this two and add the
5:50
tangent and uh this will be also
6:06
now we will extend this
6:12
uh create a three-point
6:17
Arc select this and this and add the
6:22
tangent and select this and this Arc and
6:26
add the tangent relation
6:33
now select uh this point
6:56
now select this point and this point
6:59
point and add the horizontal
7:04
relation and this radius is of
7:14
R12 so our sketch is fully
7:19
constrained now we will come out of
7:23
it and here we will select
7:28
revolve and and click on
7:33
okay so you can see that our base
7:36
profile is created now we will create
7:42
the plane hole so we will make with the
7:46
sketch tool you can use the whole wizard
7:50
no issue so select the phase and click
7:52
on the sketch make this phase normal
8:04
Dimension and give it a diameter of
8:12
102 select the diameter and make it for
8:17
construction and select a circle and
8:22
circle and this is of diameter 10
8:36
sketch select the sketch click on
8:40
extrude then click on up to surface and
8:49
now select the sketch and click on
8:52
linear pattern click on circular pattern
8:55
select AIS and here we want
9:00
four holes so we will give the quantity
9:14
now we will create a hole here so for
9:17
this we require a tangent phase so we
9:19
will go to the reference geometry select
9:22
plane and select this
9:36
parallel so we have the tangent plane
9:40
with respect to our selected surface
9:46
now we will select our newly created
9:50
plane and click on the
9:54
sketch and now we will make this phase
9:57
normal and now now here we will uh
10:05
circle and select smart Dimension from
10:18
31 select the diameter and give it a
10:27
9.5 select the this and this point and
10:32
horizontal press contrl
10:39
vertical come out of the
10:44
now we will hide this
10:46
plane and select the sketch click on
10:53
Cut and we will just keep the distance
10:56
which will open in the diameter we will
11:02
okay now we will also polar pattern it
11:06
so we select the cut go to the circular
11:11
pattern select the axis inner one and
11:19
okay now here is a chamfer of three at
11:23
angle of 45 so we will select this
11:26
age and uh go to the chamfer
11:31
and give the distance 3
11:40
okay and here is a fillet of
11:43
R3 so we will select it and go for the
11:56
R3 now we will press control 7 so as you
12:00
can see that we have modeled this uh
12:03
centering bearing in solid works from
12:05
the scratch and we will also take the
12:10
view so you can see that we have exactly
12:13
made it and uh I hope you have enjoyed
12:17
this tutorial and you can do the same as
12:21
I did it with respect to the drawing if
12:23
you like this tutorial then please like
12:25
subscribe and share my channel and also
12:28
support me on on coffee.com you can buy
12:31
me a cup of coffee your small support
12:34
will help these channels to grow and it
12:36
will motivate me to create uh more
12:39
awesome content on solid works thank you
12:42
for watching and thank you for your
