Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04
learn how we can uh create equation
0:06

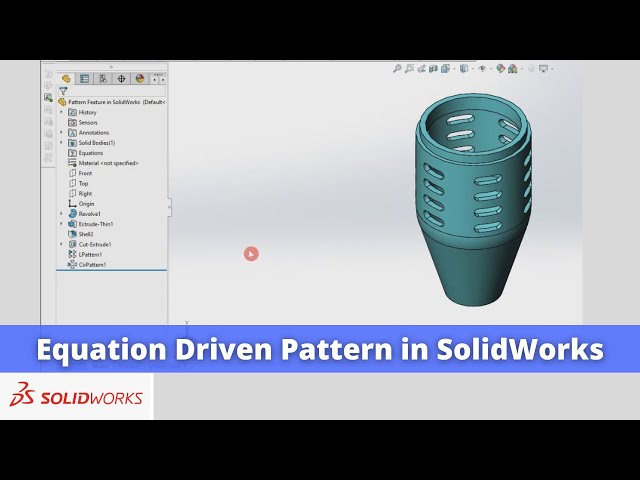

driven polar pattern and solid works as
0:09
you can see that uh here is a linear
0:13
pattern as well as Polar pattern and
0:16
polar pattern we have made using the
0:20
equations as you can see that equation
0:22
is here and here is a current quantity
0:25
is z if I make it six and click on okay
0:30
so you can see that it is updated to the
0:33
six cutouts in a polar pattern way with
0:44
five and uh click on okay then it will
0:48
updated with five numbers of a polar
0:51
pattern with equal spacing so we will
0:55
learn from the scratch how we can do the
0:57
same in solid works so I I
1:01
will delete all these features and
1:03
equations and I will show you from the
1:05
scratch you can also visit my website
1:09
macn nexus.com and you can visit this
1:12
solid works tutorials tab where I have a
1:16
written so many tutorials on uh solid
1:19
works where you can follow the step by
1:21
step guide to model the
1:25
parts if you like my method of teaching
1:28
then you can also support me on kofi.com
1:31
you can buy me a cup of coffee your
1:35
small support will help these channels
1:37
to grow and it will motivate me to
1:40
create more awesome content on solid
1:42
works so let's come back to our
1:46
tutorial now you can see that uh I have
1:49
deleted the feature as well as equations
1:52
now I will select the front plane and I
1:55
will create a sketch and I will make it
2:01
and now I will select Center Line tools
2:06
and I will draw a center
2:10
line and now second option I will select
2:14
this uh Center Point straight slot and I
2:24
here and now I will constrain it select
2:30
Dimensions give 60 mm Dimension from the
2:36
bottom center to Center is uh 10
2:43
and diameter of the slot is a 5
2:48
mm so sketch is fully constrained I will
2:52
come out of the sketch and I will press
2:56
7 and I will go to the features click on
3:12
have the our cut now we will do the
3:17
pattern we will go to the features Tab
3:19
and from drop down here we will select
3:23
pattern and direction we can select
3:30
and distance is a 10 and quantity we
3:37
okay and in the next step we will uh
3:46
now we will go to the visibility section
3:50
and here we on the temporary
3:56
access now we will select this our
3:59
linear pattern go to the here and click
4:02
on the circular pattern axis we select
4:06
it and we give the angle
4:14
3 here we are not going with equal
4:17
spacing because we wanted to do it with
4:21
the help of a equation so click on
4:24
okay and now we will go and hide the
4:32
now we will uh use the
4:35
equations so if we click on the circular
4:39
pattern one so we can see that uh here
4:42
is a quantity number three and here is
4:47
so we will make this angle
4:52
outside we will double click on it
4:56
circular pattern one quantity three and
5:00
now we will go to the tool sections
5:03
equations and here on the equation
5:09
equations here in add equation we will
5:12
select this 120 angle in a graphical
5:16
window here so you can see
5:19
that it has been added under the
5:25
now in a value equation we will press
5:32
360 divide by and here select this
5:38
three and click on okay so our equation
5:43
added now to see the equations you can
5:48
uh click on the equation click on the
5:50
manage equations so you can see that uh
5:54
360 divide by D1 circular pattern so D1
6:00
circular pattern is is our pattern which
6:07
120 at three quantity now you can see
6:10
here the 360 divid by the pattern means
6:18
now if we go to the pattern and now it
6:23
equations so we are making this quantity
6:33
4 so it is automatically get updated if
6:48
okay so you can see that it is perfectly
6:51
updating with respect to the
6:55
equations so this is how to use the
6:58
equation in our polar pattern in solid
7:01
works so this is all about this tutorial
7:04
thank you for watching and thank you for
