Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04
learn the swep feature you can also
0:08
visit my website macn nexus.com and you
0:11
can visit this solid works tutorials tab
0:15
where I have a written so many tutorials
0:18
on solid works where you can follow the
0:21
step byst step guide to model the
0:25
parts if you like my method of teaching
0:28
then you can also support me on kofi.com
0:31
you can buy me a cup of coffee your
0:35
small support will help these channels
0:37
to grow and it will motivate me to
0:40
create more awesome content on solid
0:42
works so let's come back to our
0:46
tutorial so here I have a created a new
0:50
file and now I will select this top
0:53
plane and uh create a
0:56
sketch and here I will select the circle
1:03
Circle select the smart
1:06
Dimension and I will give it 100
1:13
mm and we will come out of the
1:16
sketch now I will press Ctrl 7 for
1:19
isometric view now this is our profile
1:24
for the swep now we need a guided curve
1:31
I will select the front
1:34
plane and I will select the line
1:39
tool and I will create a
1:46
this and now I will give the
2:00
and angle I will give
2:08
45 and this length I will also give the
2:17
mm and here I will give the fillet so
2:21
select the fet tool and I will give the
2:31
and now come out of the
2:41
profile and we have the path now click
2:46
tool so here is options to provide the
2:51
profile and this is the option for the
2:54
path so we will click on the circle
2:57
which is our profile and click on this
3:00
sketch which is our path and we will
3:05
okay now you can see that uh our Circle
3:11
got swept along the path now we will
3:17
view and now we will manipulate this
3:22
this we will go to the our guided
3:27
path and uh change the length to the
3:47
300 and let's change this radius to
4:09
a we have a change all the dimensions
4:13
and let's change angle two let's make it
4:19
50 as a solid works is a parametric in
4:22
nature so it will update our
4:26
shape so you can see that uh our swep
4:30
profile got changed now let's again
4:33
manipulate this shape Let's uh expand
4:42
now we will expand it in a vertical
4:45
Direction so we will select a line
4:52
line and we will constrain this uh
4:57
line let's make it uh
5:05
350 and add the fillet as well click on
5:08
the fillet tool and here we have created
5:12
the radius of a 60 let's
5:28
okay and now we will come out of the
5:31

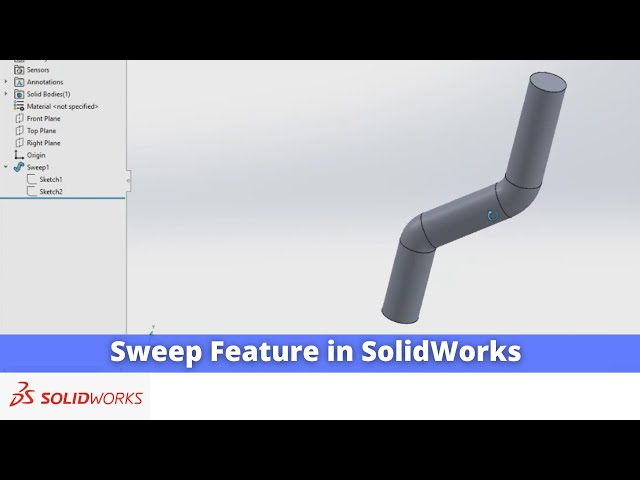

sketch now you can see that our pipe is
5:34
modified so this is how you can uh use
5:38
the swep tool in a solid works and this
5:41
tool is a very useful to create a shape
5:46
which having the constant
5:48
profile along the guided curve we can
5:53
use here Square as well we can use the
5:55
tube we can use the pipe whatever you
6:00
and we can easily manipulate it as you
6:03
saw in this tutorial so this is all
6:07
about the swep tool in solid works thank
6:10
you for watching and thank you for your
