Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04

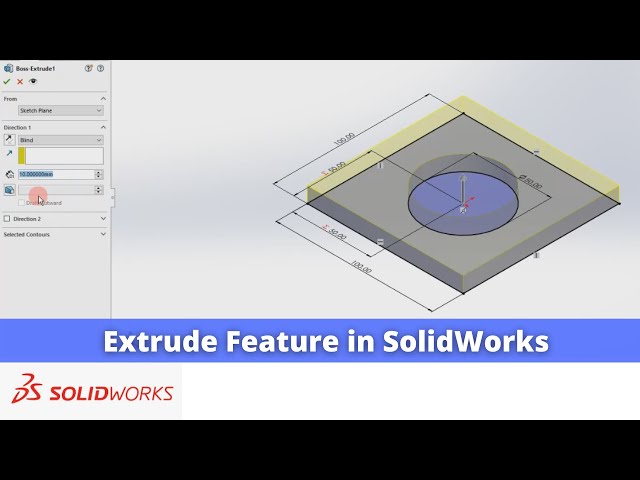

learn extrude feature in solid
0:08
works we will learn how we can uh
0:12
extrude the sketch in solid works and
0:15
here is a extrude boss and base tool
0:18
which we will learn you can also visit
0:21
my website macn nexus.com and you can
0:25
visit this solid works tutorials tab
0:27
where I have a written so many tutorials
0:31
on solid works where you can follow the
0:34
stepbystep guide to model the
0:38
parts if you like my method of teaching
0:41
then you can also support me on kofi.com
0:44
you can buy me a cup of coffee your
0:47
small support will help these channels
0:50
to grow and it will motivate me to
0:52
create more awesome content on solid
0:55
works so let's come back to our tutorial
1:01
so let's uh select the top plane and
1:06
sketch and here I will uh create a
1:14
rectangle and now I will uh give the
1:34
100 and to make it symmetric I will uh
1:40
Dimension press the equal symbol select
1:43
the dimension and divide by
1:52
Vertical Press the equal symbol select
1:55
the dimension divide by two
2:00
so you have multiple options to make it
2:03
symmetric either you can choose the
2:08
rectangle or you can make it symmetric
2:12
with symmetrical constraint but I have a
2:14
choose to make it symmetric with the
2:17
equations I have a link the
2:19
dimensions now I will uh select the
2:22
circle and I will uh draw a
2:26
circle now I give its uh diameter
2:37
mm so now we have a fully constrained
2:41
sketch now we will come out of the
2:51
isometric and now we will uh click on
3:00
here on the left hand side you will see
3:04
message a plane on which the sketch
3:07
feature cross-sections or an existing
3:10
sketch to use for the features so we
3:13
have to select the sketch so we will
3:17
sketch so now you can see that outer
3:24
but we will go to the select contour and
3:31
and now this is how we want our extrude
3:35
now we will uh see the options
3:37
available if we say okay then we will
3:43
Extrusion but if you go to the edit
3:46
feature then from here we can uh set the
3:51
height of our Extrusion you can give the
3:56
20 you will also get an arrow here
4:02
drag so as you drag it you can see that
4:08
changing let's make it
4:13
now in a from option we will have the
4:16
multiple options like uh we have a
4:19
sketch plane surface face plane Vertex
4:22
or offset out of this this offset tool
4:26
is very useful if I click on a offset
4:29
set and I give the offset distance like
4:34
mm so you will see that uh my Extrusion
4:41
mm offset from my sketch plane so if I
4:48
okay and I switch to the isometric View
4:55
plane so you can see that it is a
5:00
we will go to the edit
5:03
feature and we will select on a sketch
5:07
plane once I click on the sketch plane
5:10
then my Extrusion will come on my sketch
5:16
plane and in the directions so we have
5:20
first choosen the blind
5:21
directions if you click on this Arrow
5:25
reverse directions so Extrusion will be
5:28
get reverse in opposite
5:31
directions so this is for the change the
5:34
direction of your Extrusion and blind is
5:37
the distance you can reverse it and you
5:41
can drag it or give the dimensions in
5:46
directions next one is a up to vertex up
5:52
surface offset from surface up to Body
5:55
On midplane so when we will do further
5:57
modeling tutorials like a part modeling
6:00
in the upcoming lectures then we will
6:03
use this tool as of now this mid plane
6:07
feature is important if I click on the
6:09
mid plane so you can see that my
6:13
Extrusion length is 20 mm so it will be
6:17
symmetric from the plane means 10 mm
6:24
downside let's switch to the isometric
6:27
View and uh see the other
6:32
options up to body we do not have any
6:35
extra body here else we can extrude it
6:37
to the up to the body this we will learn
6:40
when will be do the part modeling
6:49
okay so this is the very simple sketch
6:52
from which we have extruded it with the
6:55
help of extrude features so this is all
7:00
Extrusion tool in a solid works thank
7:04
you for watching and thank you for your
