Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04

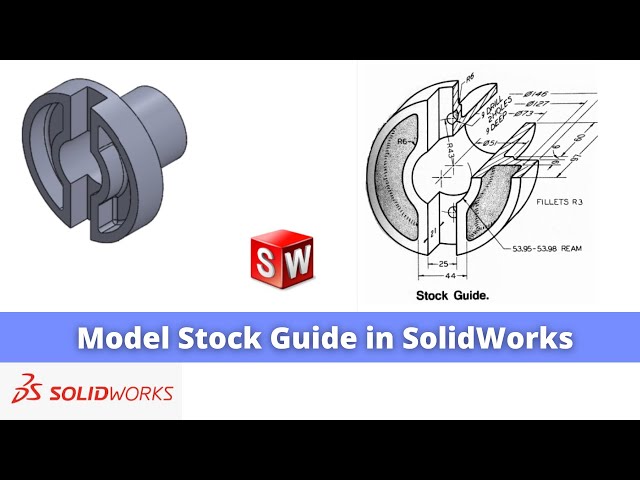

model this stock guide in solid works as
0:07
you can see that I have already modeled
0:09
it and I will show you from the scratch
0:12
how you can do the same so I will close
0:15
this file and create a new file and I
0:18
you step by step how to model this stock
0:22
guide you can also visit my website macn
0:26
nexus.com and you can visit this Sol ID
0:30
Works tutorials tab where I have written
0:33
so many tutorials on solid works where
0:37
you can follow the step by step guide to
0:42
parts if you like my method of teaching
0:44
then you can also support me on kofi.com
0:47
you can buy me a cup of coffee your
0:51
small support will help this channels to
0:54
grow and it will motivate me to create
0:57
more awesome content on solid works so
1:00
let's come back to our
1:03
tutorial so here first I will select the
1:06
right plane and click on the
1:08
sketch and first thing which I will do
1:11
is to draw the construction
1:15
line and make it for the
1:19
construction and give it a length of
1:27
97 and now we we will create the rough
1:38
this first we will draw the horizontal
1:42
line and start from here
2:03
so this is the approximate section
2:05
view of our stock guide and now we will
2:09
start constraining it so we will select
2:12
Dimension and give it
2:15
a diameter of 146 which is the
2:21
outer inner one is A7
2:44
six and this one is a
2:51
45 you can parall check the dimension
2:54
which I am giving and
2:58
now first we will uh constraint this
3:01
inner one which is uh
3:07
53.98 and this one is of a diameter of
3:17
73 and we will select this construction
3:20
line point and this point and add a
3:24
relation and we will select this line
3:27
and the this line and add the cool
3:30
relation and select this point and this
3:33
point and add a vertical
3:38
length we will select smart Dimension
3:41
and give the this length is of
3:46
60 and uh this point to diameter of
3:53
91 so our sketch is fully constrained we
3:56
are not seeing the diameter symbol so we
3:58
will uh exit the sketch and again edit
4:06
sketch so we have not got the diameter
4:09
but it is a diameter you can consider it
4:11
so now our sketch is uh fully
4:14
constrained and uh we will give some
4:17
overr dimension for example this
4:20
thickness which is fully defined but I'm
4:25
okay now we will come out of the sketch
4:29
press control 7 for isometric and click
4:35
revolve and here we will Revol to the
4:43
now the next feature which we will do is
4:49
cut so for this uh we will select the
4:51
mid plane which is our top plane and
4:53
click on the sketch and here we will
4:56
select this age and click on convert
4:58
entities and we will make it a
5:01
construction and we will create our
5:09
now here we can see it is a 25 so we
5:12
will select smart Dimension select this
5:22
25 select this and this and give it 12.5
5:36
and total length is of uh
5:44
21 now we will come out of the sketch
5:50
and we will click on the extrud
5:53
cut and we will say through all on the
5:57
both the sides click on okay
6:02
now we can see that uh here material has
6:07
been removed but if you see in our
6:09
drawing here is a material here is a
6:11
material so we will select this phas and
6:15
uh click on the sketch and make this
6:21
now we will uh project this 4 R by
6:28
clicking on convert in it is
6:32
and we can see that here it is a
6:35
44 so we will uh create a two line
6:41
here and we will make it a
6:45
vertical similarly we will create one
6:58
vertical and we we will delete this
7:03
line and we will delete this constraint
7:06
or simply we will delete this line
7:13
line okay and now we will make it
7:17
vertical and now we will select smart
7:22
Dimension and give it
7:26
44 and from middle it will be
7:36
22 and we will close this
7:41
profile and we will select line tool and
7:46
one and now we will uh remove the extra
7:53
option so here our profile is closed we
7:57
will come out of the sketch
8:00
and we will select our sketch and click
8:04
extrude from here we will flip the
8:06
directions and here in option we will
8:08
select up to surface and select this
8:14
okay and now we will mirror it on the
8:17
other side so we will select our extrude
8:19
features go to the linear pattern go to
8:21
the mirror and here on the mirror plane
8:24
we will expand it from here and select
8:31
okay so this is how we have mirror
8:37
now if you see our model here is a 9 mm
8:43
hole and 9 mm deep so for this we will
8:48
uh select the face and uh we will click
9:01
now we will go to the position and place
9:04
the position of a two hole and now here
9:08
is a PCD of r43 so we will click on the
9:15
circle and make it for construction
9:21
Dimension and it is r43 so we will 43
9:34
now we will select these two points and
9:37
add a vertical relation select this and
9:40
this and add a vertical relation now
9:44
select this point and this PCD Circle
9:50
constraint similarly this one and this
9:53
one and add the coincidence constraint
9:57
so this is our ho now we will Define our
10:00
hole so here we will select
10:03
uh drill hole and from here we will
10:06
select the drill size so drill size of
10:11
uh 9 mm so from the drop down we will
10:24
mm here we can see that Dr 9 mm deep of
10:28
size 9 mm so we will give here 9
10:34
okay so now if we take the section
10:38
view so we can see the
10:42
here drill hole of 9 mm
10:48
deep now here is a common fillet of R3
10:53
so we will uh provide the fillet to the
10:56
inner sections so we will go to the fet
11:01
so first we will select the vertical
11:03
edges and give the fillet of
11:27
one similar way on the other side we
11:30
do first we will select the vertical
11:54
okay now at the outer side we will with
11:59
the fet we will select this age this age
12:02
and this age and go with the
12:06
fillet and give the R3 click on
12:14
so this is how we have completed this uh
