Part Section with Sketch in FreeCAD 1.0 | FreeCAD Tutorial | Learn FreeCAD | Mechnexus |
May 14, 2025
#freecad #freecadtutorial #learnFreeAD In this video I have explained How to take Part Section with Sketch in FreeCAD 1.0 ▶️ Get my Complete FreeCAD Course : From Zero to Expert ! https://ko-fi.com/s/1ab4385434 ▶️ Join my channel membership and keep supporting my work: https://www.youtube.com/channel/UCcn6z2whMaFu-_LDsEXCfVA/join ▶️ Visit my website for more info on FreeCAD-: https://mechnexus.com/ ▶️ Download Source File of Tutorial-: https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus
View Video Transcript
0:00
hello friends welcome to free tutorial
0:03
and in this tutorial we will learn uh
0:05
one of the cool feature of sketcher
0:09
workbench where we can view the part
0:12
section with a sketch if you want to
0:16
learn free from the scratch then you can
0:18
buy my complete free course from zero to
0:22
expert this course also available on
0:25
Udemy but uh problem is that uh UDMI
0:29
only give me the
0:31
37% of a course selling you can see here
0:34
user had paid $15 but I have only got $5
0:41
if you wanted to see the review of my
0:44
course you can go to the Udemy and s
0:47
search for the free CAD and you will see
0:50
my course complete free course from zero
0:53
to expert and this course is took by the
0:56
more than 2,000 students and I have got
1:00
the rating of
1:02
4.1 for the demo lectures you can expand
1:06
it and uh see the demo lectures and the
1:10
course structure but I will request you
1:14
if you found my course interesting and
1:18
uh reviews of the other student on Udemy
1:22
then I would request you to buy my
1:26
course from the my coffee shops because
1:30
if you buy from here it will help me a
1:33
lot so once you buy my course you will
1:37
be redirected to the Google drive and
1:40
here is the my course complete free
1:43
course from zero to expert go inside and
1:48
uh the sections I have shown you on my
1:52
Kofi shop page so exactly same lectures
1:57
under the section is created for example
2:02
section one is a introductions to free
2:05
1.0 and what is new in a free 1.0 so if
2:09
you go to the section one so there are
2:12
the 18 lectures and if you go inside of
2:15
this sections one you will find the 18
2:19
lecture total and once you go to the
2:22
lecture one you will find a video file
2:25
which you can download to your system
2:28
and you can watch it and this course is
2:33
updated on a equal interval of a time
2:36
once the new feature receives came and
2:38
uh once you purchase the course you have
2:41
the lifetime access to the course and in
2:45
the case of any doubt any query you can
2:48
mail me at
2:51
adminxus.com you can find my course link
2:55
on my YouTube channel you can see the
2:58
course link and uh you can also find my
3:01
Kofi course page link on uh pin comments
3:05
and uh video descriptions for this
3:08
tutorial I am using Frecad version 1.0
3:13
so you must have at least Fread version
3:16
1.0 or higher
3:19
version than uh
3:21

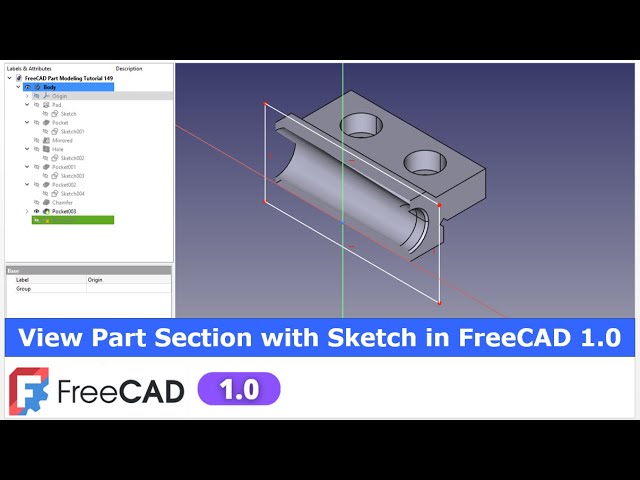

1.0 as you can see that I have modeled
3:24
this part and uh to view the sections
3:28
there are the already some good tools
3:32
available in a free CAD one of them is a
3:36
persistent sections cut if you select
3:39
this options and if I wanted
3:42
to see the sections from the mid then I
3:47
can uh cut along the y-axis and uh you
3:50
can see that uh section is created here
3:54
and uh I will close it so once I close
3:57
it here you will see that section cut Y
4:01
is created which I can transform
4:06
it and uh see it that how my section is
4:11
look like and at the same times I can
4:15
delete it to using the persistent
4:19
section cut
4:21
is increase the your model size because
4:25
when we use this options then two solid
4:29
body is added here but if you are in a
4:34
in between the modeling and you just
4:36
wanted to take a sections your your uh
4:40
part is not finalized at then using the
4:45
section option inside the sketcher
4:48
workbench is very
4:50
useful this persistence sections is a
4:53
very good tools once you have a modeled
4:56
the part and you are going to inspect
4:58
but if you are in the modeling and you
5:00
wanted to just view the sections whether
5:04
you are doing a modeling in a correct
5:06
way or not we will see in this tutorial
5:09
so here in a persistent sections cut
5:13
this uh solid bodies get added you you
5:17
have to delete it and here I will select
5:21
and uh delete it and now instead of a
5:24
persistent section cut we will use the
5:27
sketcher option so let's do
5:31
it so for this I will uh on the origin
5:35
plane and on the origin plane we wanted
5:38
to take a sections along the exit so I
5:41
will select this exit plane and uh click
5:44
on the sketch
5:47
For the sections I will uh create a
5:50
rough rectangle i will not constrain it
5:53
because it is a temporary space i just
5:56
wanted to see the
5:58
sections because this face is having the
6:03
taper now I will off the origin plane
6:07
now if we come out of the sketch and go
6:12
to the sketch options we will uh not see
6:16
the sketcher section options so you must
6:20
be inside the sketch and
6:22
now go to the
6:24
sketch and here you will see the option
6:27
of a view sections click on it and uh
6:32
switch our model to the isometric view
6:36
and here we can see the sections but it
6:40
is not much clear so we will go here
6:44
under the draw style and we will switch
6:47
to the flat lines so once we switch to
6:50
the flat lines we can see the sections
6:54
here and as I said there is a taper
6:57
inside so we can clearly see the taper
7:00
we can make it normal and we can see
7:03
that uh the taper cut which we have
7:07
created is
7:09
okay and
7:11
now to come out of it just uh delete
7:16
this sketch if you not require it or uh
7:19
you can hide it and now let's you want
7:23
to create a section from here just on
7:26
the origin plane and select this plane
7:29
and click on the sketch and here we
7:32
wanted to take the sections and we will
7:34
create
7:35
a a
7:37
rectangle and click on
7:40
close and
7:42
uh if we are outside of a sketch this
7:46
tool will not be active but when we are
7:49
inside of it this will be active here
7:52
click on the view
7:53
sections and uh let's of the origin
7:57
plane and from the here we will switch
8:00
to the flat lines and switch to the
8:02
right view
8:05
so this is a very quick way to get a
8:09
section even though it is not as much as
8:12
a good like a persistent sections cut
8:16
but uh while in the modeling this is the
8:19
very cool tool to take a sections to
8:22
inspect your model in
8:25
between your uh modeling and now once
8:30
you have checked it you can simply
8:32
delete it so this is the very cool
8:34
feature of a free CAD sketcher workbench
8:37
to take a sections and view it and uh
8:42
according to that change your model so
8:46
take the benefit of this
8:48
uh option of a free CAD sketcher
8:51
workbench to take the sections while in
8:54
a modeling so this is all about this
8:56
tutorial thank you for watching and
8:58
thank you for your valuable time heat
