hello friends welcome to free tutorial
0:03
and in this tutorial we will learn how
0:06
we can merge multiple sketch into a
0:10
single sketch This is a very awesome
0:13
tool of a freecad sketcher workbench
0:15
which we will learn for this tutorial I
0:19
am using free version
0:21
1.0 So you must have at least free
0:25
version 1.0 0 or higher
0:28
version than 1.0 So first I will uh
0:33
create a new file and I will create a
0:37
body and inside of this body we will
0:41
create our first sketch and we will
0:45
plane and here I will uh create
0:55
now I will select this horizontal and
0:58
vertical line and make it equal
1:03
now let's uh select a smart
1:07
dimension and uh provide it uh
1:11
160 and uh let's make this symmetric We
1:15
will use the symmetricity constraint
1:18
Select this point this point and this
1:23
point So this is the first sketch We
1:26
will uh close it And now let's uh create
1:35
plane And uh let's uh hide our first
1:41
now we will uh create one
1:45
circle and uh select a smart dimension
1:52
uh 100 mm diameter and then uh close it
1:58
and let's uh hide this sketch and uh we
2:02
will create uh one more sketch on a
2:04
front plane and uh this will be a slot
2:08
So we will create a arc
2:12
slot and uh we will create one arc and
2:18
uh let's constrain it Select uh smart
2:21
dimensions and uh provide it uh 8
2:26
mm and uh this uh radius is of uh
2:34
now this is not uh symmetric So we will
2:38
uh create a construction line So we will
2:41
uh select a line tool and join this and
2:47
this Select both and uh made it
2:51
construction And now we will select a
2:54
smart dimension and uh provide the angle
3:07
axis and uh provide the
3:16
it Now let's uh on all sketch So we have
3:22
created a three sketch
3:26
But uh if you want to combine these
3:29
three sketches into the single one you
3:32
can easily do it All you have to do it
3:36
press control key select all three
3:38
sketches and go to the sketch option And
3:42
here you will see the merge
3:45
sketches Here if you not select the
3:48
sketch and go to the sketch option you
3:50
will not see this option active So stay
3:57
selected and uh click on the merge So
4:02
you can see that uh a new sketch is
4:07
now let's collapse it and this sketch is
4:12
not a part of this body So we will
4:15
select it and uh drop it
4:20
Now if we expand we can see that uh this
4:24
uh skate 003 is a part of the body
4:29
Now we can remove the
4:32
dependency because we have a merge it
4:35
and this sketches are no more required
4:38

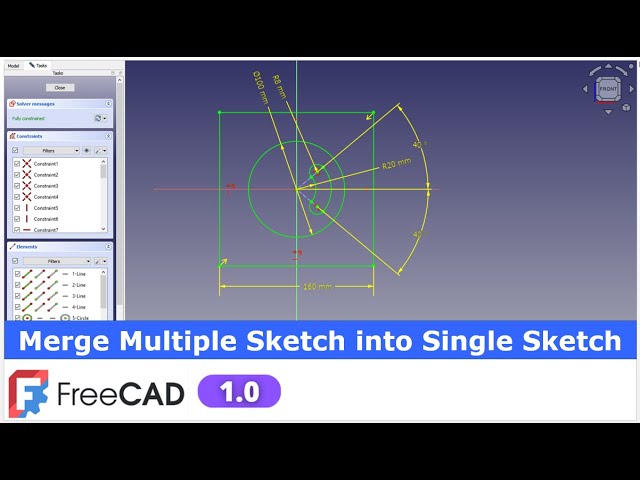

and we can delete it And once we edit
4:42
the merge sketch so you can see that it
4:46
constrained We have created the three
4:49
different sketches and we have fully
4:51
constrained it and even after
4:53
merge You can see that uh sketches is
4:57
merged and uh none of the constraint got
5:02
broken Now let's create a simple model
5:07
with this merge sketch So in a fread 1.0
5:12
we can use the master sketch This is the
5:15
master sketch because it contain three
5:18
different profile A slot a circle and
5:24
let's first select this square So press
5:27
the control key and select all the
5:31
line and uh click on extrude and here
5:36
say reverse and uh provide the 20 mm
5:44
Now if we expand the pad and press the
5:47
space bar two on it and now we will
5:52
create a cut So select this uh circle
5:56
and click on the pocket and uh provide
6:00
it 10 mm and say okay And now again on
6:05
the master sketch and uh press control
6:08
key and uh select this slot
6:15
So slot selected again click on the
6:18
pocket and from here select it through
6:22
all and say okay and let's mirror this
6:27
on the other side So select the mirror
6:29
tool and from here select
6:36
okay So this is how we have merged the
6:41
sketch and created this part Now what is
6:44
the benefit Benefit is that if you are
6:48
modeling any complex part where you have
6:50
to create a multiple sketches then if
6:55
you create everything inside a single
6:57
sketch then it could be frustrating So
7:01
you can uh create each and every
7:04
features as a separate sketch and once
7:07
you done it then you can combine it So
7:10
this is the very simple example I took
7:13
with a square circle and slot So if you
7:18
have a a part which uh which is very
7:21
complex then uh you can uh take the
7:24
advantages of a free sketches workbench
7:28
cool features which is a merge sketches
7:31
So this is a very small tutorial to
7:35
understand the merge sketches option in
7:41
workbench If you see this part design
7:45
workbench so sketchers options is not
7:49
there But if you expand it you will see
7:53
the awesome tools of a sketcher
7:57
workbench So this is all about this
8:00
tutorial Thank you for watching and
8:02
thank you for your valuable time
