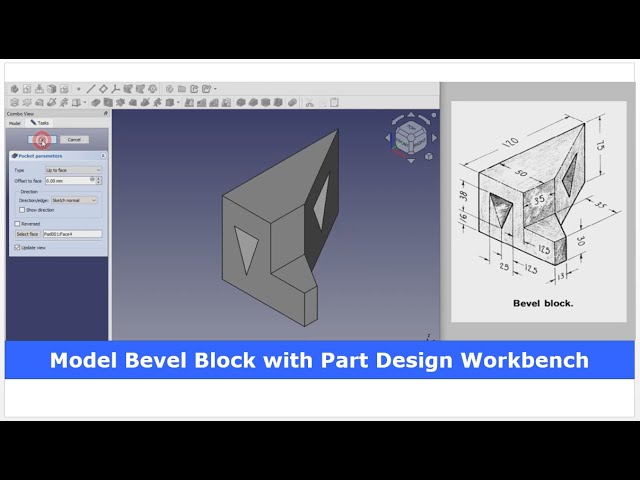

descriptions so first I will create a
3:06
new file and here is my part design
3:09
workbench is active i will create a body
3:12
and create a sketch and I will select
3:17
plane to create my sketch now we will uh
3:23
read the dimensions as we can see that
3:25
uh our total length of a part is a 120
3:29
and it is a 50 + 35 means 85 so we will
3:35
simply uh create a twopoint
3:40
rectangle and I will give it uh
3:46
120 vertical and uh 85
3:53
horizontal so this is the maximum area
3:56
of our body now we will close it and we
4:00
will find the total height which is
4:15
uh select our sketch click on the pad
4:19
and give the height 75
4:23
so this is the maximum outer boundary of
4:26
this bevel block now we will uh remove
4:30
material for this we will select the top
4:34
face and click on the sketch and we will
4:38
project this out of geometry so click on
4:47
geometry and now from this
4:50
point we will create a
4:55
line and we will create one line like
5:00
this from here to here so this is 35 so
5:05
I will give the vertical dimension
5:13
35 and from origin means this age it is
5:24
here and now we will uh close our
5:28
profile select the line tool
5:36
this this with this and this with
5:41
this now we will completely remove the
5:45
material and later on we will add the
5:48
material here so we will close it click
5:51
on the pocket tool and simply search
5:57
now we will select the bottom face and
6:02
sketch switch to the isometric view and
6:06
now we will project this
6:14
edge and now if you see
6:17
here if we see from the top so here is a
6:21
13 dimension is given so we will
6:25
simply create a line and uh make it
6:29
vertical and add the 13 dimension to
6:41
it and its position if you see
6:53
we means which is already 50 here which
6:57
we have made and now we will simply join
7:10
the total length is 85 we will click on
7:14
the horizontal dimension and fix these
7:19
points which is a 50 + 35 which is a
7:25
85 and now we have a point here and this
7:32
have already find out the
7:35
angle means if we join these two points
7:38
we will get the angle here and now we
7:43
profile click on the line
7:46
tool and join it so we have a fully
7:50
constrained profile we will select the
7:52
sketch and height is a 30 mm we will
7:56
click on the pad and I will click on
7:59
reverse direction and from here I will
8:06
30 now switch to the isometric view now
8:10
you may have thinking that uh
8:14
this this body is not merged with this
8:17
and we are seeing the line
8:19
here which is not present here so to fix
8:23
it click on the pad go to the data
8:28
tab and here you will have the refine
8:33
false set it to the true so that it will
8:38
merged and you will not see any parting
8:43
line so now we have a triangular cut
8:48
which is a through so we will select
8:51
this face and uh click on the sketch
8:56
icon and we will create a
9:15
38 and uh this one is a
9:22
35 and from this point to this point is
9:33
12.5 now I move my dimension so that you
9:39
it now if you see the position is a 16
9:42
so I will select this point and this
9:50
mm and from age to this point is a
9:55
12.5 so we will project this
10:00
age select this point and this point and
10:05
add the horizontal dimension of
10:12
now click on the sketch click on the
10:15
pocket and from here up to face select
10:20
this face and click on
10:23
okay so you can see that uh we have
10:29
material which is ending of this surface
10:33
so this is how to model the bevel block
10:35
in freeat this tutorial is for the
10:38
beginner user those who have just
10:40
started learning the free cat this is
10:43
all about this tutorial thank you for
