Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04
model this uh clutch lever in solid
0:06
works as you can see that I have already
0:09
modeled it and I will show you from the
0:11
scratch how you can do the same so I
0:14
will close this file and create a new
0:16

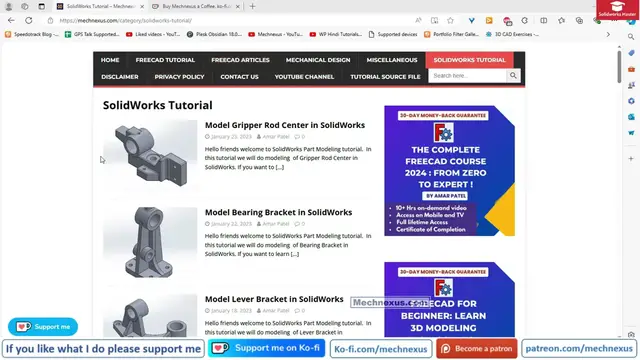

file you can also visit my website macn
0:20
nexus.com and you can visit this solid
0:24
works tutorials tab where I have written
0:28
so many tutorials on solid works where
0:31
you can follow the step by step guide to
0:36
parts if you like my method of teaching
0:39
then you can also support me on kofi.com
0:42
you can buy me a cup of coffee your
0:46
small support will help these channels
0:48
to grow and it will motivate me to
0:50
create more awesome content on solid
0:53
works so let's come back to our
0:57
tutorial so as you can see that we have
1:00
created this new file and if you see our
1:04
uh model we can find that our Dimension
1:07
are inches so we will go to the unit
1:10
sections and change your unit to the
1:12
inch you can also go to the
1:15
settings and documents properties and uh
1:18
go to the units and you can customize
1:21
your unit from here as well so now as
1:25
per our part shape we will select this
1:28
front plane to create our for base
1:33
sketch and now we will uh create a rough
1:37
profile with respect to the front shape
2:01
now we will uh give the
2:04
dimensions so first thing uh which will
2:08
be constrain is the total length so
2:23
2.26 and this is of 88
2:36
and this and this will be the
2:44
colinear and select smart
2:47
Dimension and uh from this point to this
2:58
1.94 and this angle is of
3:07
34° and this to this is of uh
3:24
1.06 so here is our front profile is uh
3:28
fully constrained so we will come out of
3:34
it and press control 7 for isometric
3:37
select the sketch and click on
3:40
exclude and give the Extrusion of
3:50
okay and now we will uh remove the
3:53
material at this portion so for this we
3:56
will select the bottom phase and click
3:58
on the sketch and click on the rectangle
4:06
rectangle and uh select smart
4:11
Dimension and give it.
4:16
56 and from here to here is of uh
4:30
come out of the sketch select the sketch
4:34
Cut and from here select through all so
4:39
complete removal of the
4:42
material and now we will select this
4:46
phase and create this profile so select
4:48
the phase and click on the
4:58
sketch and now select smart Dimension
5:18
1.26 and uh diameter of
5:38
rectangle and we will delete this line
5:43
trim and trim this unnecessary
5:47
geometry and uh select this and this and
5:53
colinear and we will select a line tool
6:04
create a horizontal line and make it a
6:15
construction so select and make it
6:52
2 and now we will come out of the
6:57
sketch select the sketch click C on
7:02
Cut and we will say it through
7:08
all and now here is a hole so we will
7:12
select the phase and click on the
7:14
sketch and uh we will create a
7:19
circle which is of a diameter
7:43
and from the center it is
7:51
so we will project this uh
7:57
diameter and make make it for the
8:00
construction and here we will insert the
8:07
midpoint and from this midpoint we will
8:10
give the dimension of
8:18
94 and we will come out of the
8:21
sketch select the sketch and click on
8:25
cut and from here say it through all say
8:33
and now this is a 44 drill so it is a
8:36
counter Board of 62 and5 mm deep so
8:41
again select the phase and click on the
8:43
sketch and now make this phase normal
8:47
select the circle and create a circle
8:53
Dimension and uh give it a diameter of
9:03
sketch select the sketch click on
9:08
Cut and uh give it A5 mm
9:13
deep click on okay so basically this is
9:20
holes and now we will create this hole
9:23
so we will select the phase and click on
9:25
the sketch click on the circle
9:30
and give the diameter of a
9:37
38 and from this age it is uh of
9:46
A5 and from the bottom it is
9:56
a44 now we will come out of it
10:01
select the sketch click on extrude
10:04
code and say it true all say
10:10
okay now we will create this
10:13
hole select the phas and click on the
10:18
sketch select the circle create a
10:22
circle and uh from this age it
10:35
and it is the center of uh this diameter
10:40
so we will select it and click on
10:44
entities and now we will make it for the
10:47
construction we will select a point and
10:53
midpoint and we will select this point
10:59
this point and this point and add the
11:03
relation and now diameter of this uh
11:13
38 and we will come out of
11:16
it select the sketch click on EXT F
11:21
cut and we will just drag the arrow so
11:25
that it open here in open portion and
11:32
okay now press the control 7 now you can
11:37
see that we have successfully model this
11:42
uh clut lever in uh solid walks I hope
11:47
you have enjoyed this tutorial if you
11:48
have enjoyed it then please like
11:50
subscribe and share my channel and also
11:53
support me on coffee.com you can buy me
11:55
a cup of coffee your small support will
11:58
help the these channels to grow and it
12:00
will motivate me to create more awesome
12:03
content on a solid works you can find
12:05
the link in video descriptions so this
12:08
is all about this tutorial of a clut
12:10
lever thank you for watching and thank
12:13
you for your valuable time
