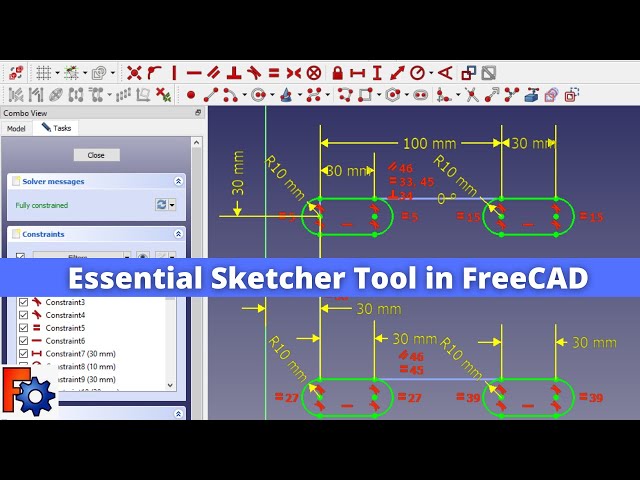

Essential Sketcher Tool in FreeCAD | FreeCAD Sketching | FreeCAD Tutorial |
May 12, 2025
#freecad #freecadsketch #freecadpartdesign In this video I have explained Essential Sketcher Tool in FreeCAD. ▶️ Get my Complete FreeCAD Course : From Zero to Expert ! on Ko-fi https://ko-fi.com/s/1ab4385434 ▶️ Get my Complete FreeCAD Course : From Zero to Expert ! on Udemy https://www.udemy.com/course/freecad-course-for-beginner/?referralCode=3BA9B526A12F96295D44 ▶️ Join my channel membership and keep supporting my work: https://www.youtube.com/channel/UCcn6z2whMaFu-_LDsEXCfVA/join ▶️ Visit my website for more info on FreeCAD-: https://mechnexus.com/ ▶️ Download Source File of Tutorial-: https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment.
View Video Transcript
0:01
Hello friends welcome to Free tutorial
0:03
and in this tutorial we will learn
0:06
essential Sketcher tool in freead so for
0:09
this here I have launched my freead now
0:12
I will create a new
0:14
file and I create a body and then create
0:19
a sketch and I select this front plane
0:22
and now here I will create a simple
0:28
slot
0:30
and uh we will uh see one by one
0:34
essential Sketcher tool in
0:36
freead so first what I will do I will uh
0:41
select this
0:42
slot and uh here is the first tool which
0:47
we are going to understand is a select
0:49
Associated constraint so once you click
0:52
on it so you will see that uh Associated
0:56
constraint or got
0:58
selected here is a tangency which is got
1:01
selected and here is a equality which is
1:04
got selected and if you see here in a
1:09
left hand side instead of manually
1:12
selecting all the constraint you can use
1:15
this tool to select the constraint and
1:18
you can delete
1:20
it so this is the select the associated
1:24
constraint for example uh if you want to
1:26
manually select for a line or Arc for
1:30
example if I select this line and click
1:33
on this so Associated constraint of this
1:36
line is a tangent which got selected
1:40
similarly uh if I create a rectangle and
1:45
if I select this line and click on this
1:48
icon so that vertical constraint is got
1:51
selected so this is a very good tool if
1:54
you're working in a sketch and you want
1:58
to delete all the constraint and re want
2:01
to apply the constraint then you can
2:03
select at a
2:05
time of all the sketches for example if
2:08
I select this uh slot and
2:12
rectangle so you can see here everything
2:16
is selected and now if I click on this
2:19
icon then both the sketch constraint is
2:23
got
2:23
selected now let's move to the next
2:28
tool our next tool
2:31
is Select Associated geometry first we
2:35
have seen the associated constraint now
2:38
we will go with the geometry which means
2:41
that for example uh let's uh I select
2:45
this vertical constraint and click on
2:47
this icon so that Associated geometry
2:49
gets
2:50
selected if I select this uh equal
2:53
constraint and I click on it
2:57
so you can see that Arc is get
3:02
selected the third tool we will
3:05
understand is a show and hide internal
3:07
geometry this this tool is applicable
3:10
when we draw ellipse or Parabola so
3:13
let's
3:14
uh click on the ellipse by Center and I
3:18
draw a
3:22
ellipse now you can see that
3:26
uh this is the internal geometry if I
3:30
wanted to show it then I can show it or
3:33
if I wanted to hide it then I will
3:35
select the my ellipse and uh click on
3:38
the height geometry so you can see that
3:41
uh this geometry which we are previously
3:44
seeing is got
3:47
hidden now we will uh understand the
3:50
next tool which is uh
3:54
symmetric so for this uh we will uh
3:57
delete this
3:58
rectangle
4:01
this sketch and
4:04
now we will also delete this slot and we
4:08
will simply create a
4:12
rectangle and now we will give the
4:15
dimension so let's uh see from this
4:19
point to this point I
4:23
give 30 horizontal and I will give the
4:27
30 vertical as well
4:42
and let's also constrain it I will give
4:45
it
4:47
uh
4:50
30 and I will also give it the
4:58
30 so now we have a square which is of
5:03
30 mm horizontal and vertical height
5:09
now I will select all
5:14
this and we will click on the
5:18
symmetricity so you can see that it got
5:22
symmetric with our last selected age so
5:25
here the age is important if I
5:30
if I select this age this age and this
5:34
age so for better visibility I hide the
5:37
dimension so that you will clearly see
5:40
the my selections for example if I
5:44
select this one this one and this one
5:47
and at the last I'm selecting this age
5:50
and if I click on symmetricity so my
5:54
sketch will be get symmetric with
5:56
respect to my last selected Edge
6:00
now let's uh select this axis so first I
6:04
will select this one this one this one
6:08
and this and then I will select my this
6:11
vertical axis and click on the
6:14
symmetricity so you can see that it got
6:16
symmetric with the
6:18
axis
6:20
similarly I select all this and press
6:23
the control key and select this
6:25
horizontal axis and click on the
6:28
symmetry so you can see that it got
6:30
symmetric with respect to
6:32
the so in symmetric
6:37
constraint we
6:40
can mirror our selected sketch with
6:45
respect to our last selection either it
6:49
may be uh sketch entity or it may be
6:51
axis so that is the very important while
6:54
using the
6:56
symmetricity
6:58
now
6:59
I show you the next tool in uh Sketcher
7:04
which is of
7:06
uh clone or copy so here is the Clone
7:11
copy and move options so first we will
7:14
select all the sketch entities so here I
7:17
have selected my square and I will click
7:20
on the Clone so you can see that
7:24
uh I'm seeing a line which is the
7:27
placement line and if I click on it so
7:30
you can see that it got
7:32
cloned and I delete it similarly we will
7:37
see
7:38
the move command so clone or copy most
7:42
are the similar now we will see the
7:44
move so you can see that a line is
7:48
showing and if I click on
7:51
the screen so you can see that this age
7:54
got moved if I again select
7:57
it and uh click click on the
8:02
move so this is how based on your
8:06
selections if I select from right left
8:09
to right and if I click on the
8:12
move so this point is got selected and
8:15
if I want to move it uh bottom side then
8:18
I can simply move it now the next tool
8:21
which we will learn is a rectangular
8:23
array so I will select my sketch and
8:26
click on the rectangular array options
8:29
so
8:31
here you will get a popup window which
8:34
will ask you for the rows and columns so
8:38
here I want two rows and two columns and
8:41
uh I want equal horizontal and vertical
8:45
spacing and I will also check this
8:48
constraint inter element separation and
8:51
I will click on okay so now I'm seeing a
8:56
line which is a showing me distance and
9:00
angle so here first I will make my angle
9:06
zero and here is a distance so I will
9:09
place it the distance I want for example
9:13
I want it to the
9:15
147 or 156 and click it so you can see
9:20
that
9:24
uh my sketch is got pattern and here is
9:27
my pattern Dimension which I which I can
9:30
change let's I make it 160 round
9:35
off and here is a degree of my line so I
9:41
will make it
9:43
zero so you can see that my sketch is
9:46
got pattern so this is how to use the
9:51
rectangular array in a freeat Sketcher
9:55
now let's move to the next tool which is
9:59
remove the AIS
10:04
alignment so to understand this AIS
10:06
alignement I will delete this slot and I
10:10
create a
10:12
rectangle and now you can see that uh we
10:16
have the horizontal and uh vertical
10:19
constraint to this rectangle now if I
10:22
select my rectangle and click on the
10:25
Excel alignment then you will see that
10:28
uh
10:31
horizontal and vertical constraint got
10:33
removed now this line and this line is
10:37
parallel and this line is parallel with
10:40
my this line and here you will see that
10:43
perpendicularity applied so this is the
10:46
tool where you can remove the AEL
10:53
alignment now let's uh move to the next
10:57
tool which is
11:00
delete all constraint so if I select my
11:03
rectangle and uh click on it so it will
11:07
ask you are you sure want to delete all
11:10
constraint say yes so constraint is got
11:12
removed
11:14
now you can give your own
11:18
constraint so this is how we have
11:21
understood the essential Sketcher tool
11:25
in free
11:26
CAD thank you for watching and thank you
11:29
for your valuable
11:31
time you can also visit my website Mech
11:34
nexus.com where I write articles and
11:37
tutorials on freead you can download my
11:41
tutorial source file from the here if
11:45
you like my method of teaching then
11:47
please support me on coffee.com you can
11:51
buy me a cup of coffee your small
11:54
support will help these channels to grow
11:56
and it will motivate me to create more
11:59
awesome content on feat
