welcome to Solid Works tutorial and in
0:02
this tutorial we will learn concept of
0:05
multibody modeling in a solid works as
0:08

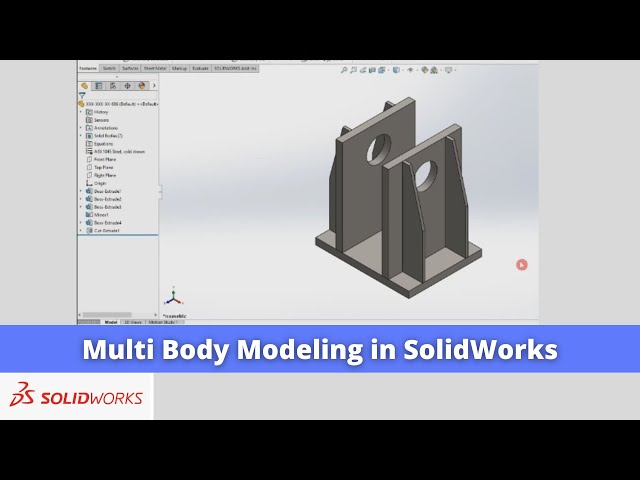

you can see that uh we have a weldment
0:12
bracket if you see this bracket we see
0:15
the different plates which are modeled
0:21
part instead of making a separate IP for
0:25
each part I have made it under the
0:28
single body and I have also created it's
0:33
drawing we will understand the simple
0:36
example of a multibody modeling if you
0:39
see here we have uh three items in uh
0:46
B and if we go to the solid sections
0:50
then we can find these
0:53
bodies so when we use the multibody
0:56
modeling and solid works it create a
1:02
this I will uh create a new
1:07
file and uh I will set my
1:11
unit you can also visit my website macn
1:15
nexus.com and you can visit this solid
1:19
works tutorials tab where I have written
1:22
so many tutorials on uh solid works
1:25
where you can follow the step by step
1:31
parts if you like my method of teaching
1:33
then you can also support me on kofi.com
1:36
you can buy me a cup of coffee your
1:40
small support will help these channels
1:43
to grow and it will motivate me to
1:45
create more awesome content on solid
1:48
works so let's come back to our
1:52
tutorial and I will select the Top Lane
1:57
sketch and I will uh select a center
2:03
rectangle create a simple
2:07
plate and you the smart Dimension let's
2:14
mm and uh select this uh horizontal and
2:19
vertical and uh make it
2:25
equal and I will come out of the sketch
2:29
press uh R 7 now click on extrude Boss
2:35
base and let's make it 10
2:38
mm so you can see that uh I have uh
2:42
created one extrude and if you go to the
2:45
solid bodies we can find here the one
2:50
now I will select the phase and
2:54
uh create a sketch and this time I
2:58
select a two Point rectangle and
3:02
uh select this corner point and I will
3:08
rectangle and I will uh give the
3:12
thickness of this plate is 20
3:24
okay now I will come out of the sketch
3:34
extrude and I will extrude it to the
3:40
mm and I will say okay so now I have not
3:45
created a separate solid so you can see
3:49
merged now I will uh edit my extrude and
3:56
here if I merge this feature then I will
4:00
get only one solid here now I will edit
4:07
uh I will uncheck merge result and I
4:12
will say okay so solid works create a
4:16
separate solid now you can see that uh
4:19
it seems like that this plate is resting
4:22
on this surface and we have the two
4:26
now we will create one more solid on the
4:29
other side with the same method select
4:32
the face and create a sketch click on
4:38
rectangle and uh create a rectangle and
4:43
select smart Dimension and go 20
5:00
select the sketch and click on extrude
5:05
base and give it 100 mm uncheck the
5:10
result so you can see that now we have
5:15
solids so this is how the multibody
5:18
modeling Works in a solid works if I
5:21
wanted to make a bracket like this where
5:25
the two plate is resting on this uh base
5:30
simply create it in a multibody modeling
5:34
and instead of creating a separate part
5:38
and assembling it so this is the beauty
5:42
of uh using the multibody modeling and
5:49
already created a multibody part and uh
5:54
I have also created its drawing and if
5:57
you go on a second sheet then I have
6:02
views to place the views uh for the
6:05
multibody part all you have to go is to
6:08
go in a model select the part
6:17
bottom you will have the options to
6:23
bodies so you will have option here to
6:26
select the bodies once you click on the
6:28
select the bodies you can select the
6:31
bodies and you can place it on your
6:34
drawing sheet for example I have a place
6:44
it and I can change this the view
6:47
position and I give the dimension of
6:50
this plate so this is how the multibody
6:54
works in a solid works and uh in
6:57
upcoming lectures we will do the
6:59
multibody modeling in a detail and we
7:02
will also create the 2D drawings I hope
7:05
you have enjoyed this
7:08
tutorial so this is all about this
7:10
tutorial how the multibody modeling
7:13
Works in a solid works thank you for
7:15
watching and thank you for your valuable
