Hello friends Welcome To freeat tutorial
0:02
and in this tutorial we will learn the
0:08
freecat you can also visit my website
0:11
Mech nexus.com where I write articles
0:15
and tutorials on freead you can download
0:19
my tutorial source file from the here if
0:22
you like my method of teaching then
0:25
please support me on coffee.com you can
0:28
buy me a cup of coffee
0:31
your small support will help these
0:33
channels to grow and it will motivate me
0:36
to create more awesome content on
0:39
freead I will provide my website and my
0:42
Kofi donation page Link in a video
0:45
descriptions so let's come back to our
0:49
tutorial so here I have activated the
0:52
part design workbench and I will create
0:55
file we have seen the Loft and now we
1:01
Loft these are the similar tools the
1:05
difference is that additive loft where
1:07
we add the materials and subtractive
1:11
to remove the material with the help of
1:16
two profile so let's understand with an
1:18
example so I create a new
1:21
file and create inserted here a body and
1:24
now I will uh on my origin
1:27
plane and uh I will select this exit
1:41
rectangle and now I will make it
1:44
symmetric so I will use the symmetricity
1:47
constraint select this point this point
1:55
point first select this
1:58
one this one and then middle
2:01
one and now we will give the
2:05
dimensions I will give the horizontal
2:09
mm and vertical dimension of 100
2:19
it now I will click on the
2:22
pad and give the length of a 100
2:26
mm now I will say okay or let's increase
2:37
mm now I will select this
2:40
face and uh on this face I create a
2:45
sketch and here I create a
2:51
rectangle and again I will make it
2:53
symmetric select this point this point
3:00
now I will give the dimensions I will
3:06
mm horizontal and vertical I will give
3:17
it and now I will select the other
3:25
sketch and on this pH I create the
3:31
circle and I will give the diameter of
3:35
uh let's say 75 mm and I close
3:41
it now I will switch to the isometric
3:44

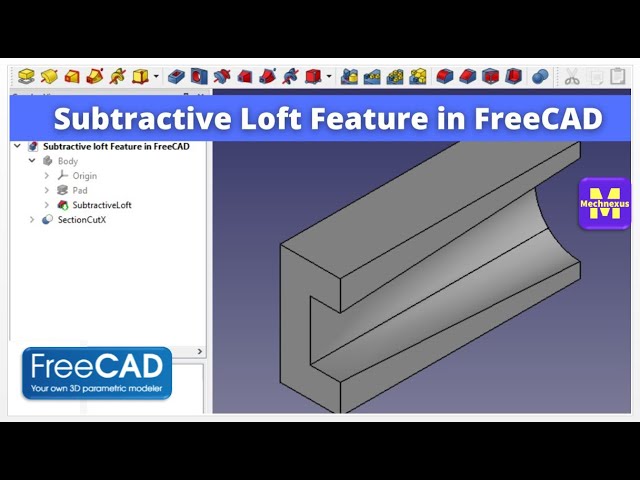

view now we will use the subtractive
3:48
Loft I will select it and here we have
3:52
the two profile one is a rectangular and
3:56
one is a circular so we will select our
4:01
square and I will say
4:03
okay now I will click on ADD
4:08
sections and I will select this
4:15
circle and I will say okay so you can
4:18
see that uh a material has been removed
4:22
now I will switch to the
4:24
isometric and we will move to the
4:27
persistence cut sections and from from
4:29
here I will select this
4:32
y not y we will select
4:44
it so you can see that uh the material
4:48
has been removed by connecting this two
4:56
circular I will close it
5:02
body so this is how to use the
5:05
subtractive Loft if you want to remove
5:07
the material with the help of a two
5:13
subtractive loft is useful so this is
5:17
all about this tutorial I hope you have
5:19
learned how to use the subtractive Loft
5:22
in freeat thank you for watching and
5:24
thank you for your valuable
