0:01
Hello friends Welcome To freat tutorial
0:03
and in this tutorial we will learn the
0:06

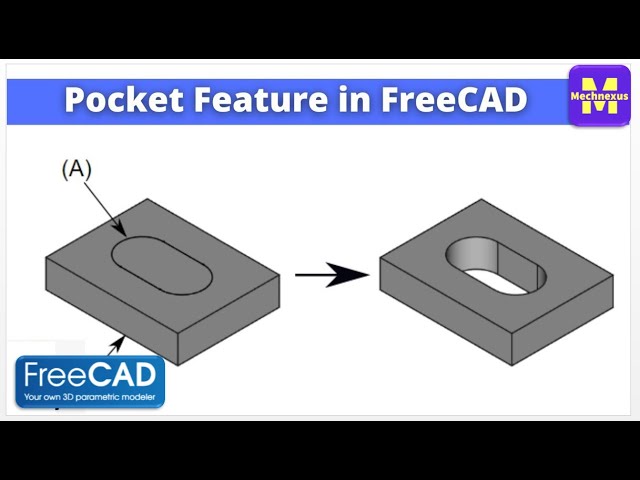

pocket feature in freead Pocket feature
0:09
is nothing but extrude cut
0:12
features it is a material removing tool
0:15
if you have a use the softwares like
0:17
solid works or Autodesk Inventor then uh
0:20
the same tools having the difference
0:24
software so we will uh understand this
0:27
uh pocket feature with the help of of a
0:32
example you can also visit my website
0:35
Mech nexus.com where I write articles
0:38
and tutorials on freead you can download
0:42
my tutorial source file from the here if
0:45
you like my method of teaching then
0:48
please support me on coffee.com you can
0:51
buy me a cup of coffee your small
0:55
support will help these channels to grow
0:57
and it will motivate me to create cre
1:00
more awesome content on
1:02
fread I will provide my website and my
1:06
Kofi donation page Link in a video
1:08
descriptions so let's come back to our
1:12
tutorial so first uh I will uh create a
1:15
body and on my origin plane and I select
1:20
uh this top plane and uh create a
1:24
sketch and off my origin plane so here
1:27
simply I will uh create
1:31
rectangle and uh I will make it
1:34
symmetric so I will select the
1:36
symmetricity symbol select these two
1:39
points and uh origin points and now I
1:44
will uh give the dimension let's I give
1:47
it 30 and the verticals I give the
1:56
to use the pocket tool first we have to
2:00
create a solid so I will uh
2:04
extrude extrude it to
2:07
the 10 mm or we can say 5
2:13
okay so here we have solid and now we
2:17
will create a cut so I move to the top
2:21
view select this uh top face and create
2:25
sketch and now again I create a
2:34
symmetric from this point this point and
2:37
the center points and now I give some
2:40
random Dimensions let's
2:43
say 10 mm and this uh
2:52
5mm and now I will switch to the
2:57
isometric and let's uh make it to the
3:04
10 now I will come to the our pocket
3:08
tool so first we will uh see our body so
3:14
you can see that first we have created
3:16
the solids and then on the top we have
3:19
created a rectangular sketch now we will
3:23
click on the pocket tool and we will see
3:28
available so here first one is a
3:32
Dimensions options so here is a length
3:36
mm so our uh thickness is 5 mm if we
3:42
to change the thickness then we can
3:46
change it so we can set as per our
3:49
requirement so that is a dimension
3:51
option second one is a through wall if I
3:54
say to the through wall then it will
4:01
completely to the first to the first
4:05
means you can select any faces so to
4:09
understand this to the first options
4:12
Let's uh I create uh a cut on this face
4:16
so I select this face and
4:27
rectangle and I select this face select
4:30
this sketch and create a cut approximate
4:35
now I will select my first STP sketch
4:38
and click on the cut so to understand up
4:43
face I will select up to face and I will
4:49
face where it should go so if I select
4:52
this face then cut will go to the level
4:56
of this bottom face and say okay
5:01
so this is how up to face is work now I
5:06
features I also delete this uh sketch
5:11
now I will again select the sketch and
5:14
go with the cut so here we have S the
5:17
through all up to First and two
5:20
Dimensions two Dimensions to understand
5:23
the two Dimensions what we will do we
5:27
uh delete this sketch
5:30
we will go to the pad and edit the pad
5:33
and we will keep it symmetric to the
5:35
plane and say okay now we will on our
5:39
origin plane select this top plane and
5:43
create a sketch and here I randomly
5:51
rectangle and from here I will switch to
5:55
the wireframe so you can see that a
5:56
rectangle has been created now I will
6:02
plane and from here I will switch to the
6:05
flat lines now you can see that our
6:13
now we will select the sketch and go
6:15
with the cut and from here if I say the
6:19
Dimensions so I can give the
6:24
dimensions in two directions so for
6:26
example top I give 2 mm and B I get 2
6:33
okay now if I go to the transparency of
6:42
transparent so you can see that
6:45
uh this cut is from the mid plane 2 mm
6:49
top and 2 mm bottom so that is how we
6:53
can use this features of a two
7:01
if I select on the sketch go with the
7:03
pocket and if I click on the two
7:11
so if I give the bottom 2
7:16
but this one I give also 2 mm and now
7:21
this I make a 10 mm so you can see that
7:24
uh at the bottom side it is cutting 2 mm
7:27
and the top side it is cutting the 10 mm
7:31
this is how you can use the two
7:33
Dimensions method now we again select it
7:37
our sketch so we have seen all the
7:39
option available here and next one is a
7:44
plane so it will curve uh cut in a
7:48
symmetric directions symmetric to the
7:53
plane means if I select on symmetric to
7:55
the plane then it will cut a 5 mm top
7:58
and 5 mm BT Bottom now if we go to our
8:04
sketch and click on the
8:06
cut and we say reverse
8:11
directions because our sketch in a mid
8:15
plane now here we have the taper angle
8:18
options we can provide the taper as you
8:22
angle you can see that uh it has been
8:28
increasing so this is how you can
8:35
tapers you can also provide the taper in
8:41
directions so this is a very useful tool
8:44
now I set uh it to the zero and say okay
8:49
so this is how we can use the pocket
8:52
tool in a different method in a freead
8:56
so this is all about this
8:58
tutorial how to use the pocket tool in a
9:01
part design workbench of a free CAD
9:04
thank you for watching and thank you for
