0:01
thanks welcome to Free cat tutorial and
0:03

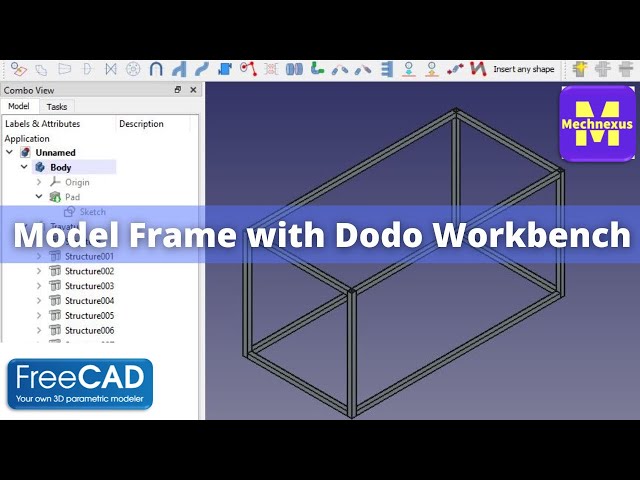

in this tutorial we will model the frame
0:06
with the help of Dodo workbench and I
0:10
have already modeled this Frame based on
0:13
all my rectangular body which you can
0:15
see here and this Frame
0:19
size is depend upon this my rectangular
0:21
solid box and it is fully parametric
0:24
once I change the dimension of my
0:27
rectangular box my frame will get
0:30
and if I hide my box you can clearly see
0:33
my frame I will show you from the
0:36
scratch how you can do the same in
0:39
and before starting this tutorial I
0:43
request you to please like subscribe and
0:46
Share my video and if you like my method
0:49
of teaching then you can support me on
0:52
.com for more information visit the link
0:54
given in the video description
0:57
I will close this file
1:00
and I will create a new file
1:03
and here I will switch to part design
1:07
and I will create a body and then I will
1:11
create a sketch on this exit plane I
1:14
will create my sketch I will simply draw
1:19
and I will make it symmetric so I will
1:24
click on this symmetric constraint and I
1:27
will select this point
1:29
this point and Center Point
1:35
the rectangle is fully constrained
1:38
now I will give Dimension I will give
1:41
horizontal dimension of 1 meter
1:45
and vertical dimension of 1 meter
2:03
and I will select my sketch and give the
2:16
I will activate my dodo workbench
2:22
activate frame branch manager
2:25
and in frame branch manager I will go
2:28
for RH profile rectangular Tube Sorry
2:33
Square tube 40 45 by 5 and 50 50 by 5.
2:37
so here I will select 40 45 by 5 I will
2:43
select this Edge and I will say okay
2:47
so you can see that freecad has inserted
2:51
Square tube of 40 40 in by 5 thickness
2:58
but here is the problem if you see in
3:02
this has not been properly merged
3:09
so in my case I will make
3:13
this tube up to this face same at the
3:20
on both the side and I will trim it
3:26
this tube will be from this face to this
3:31
so let's do it how we can easily do it
3:42
make this tube up to this face so what I
3:46
will do I will first select my target
3:50
so my targets will be I will select this
3:55
and I will select on the bottom face and
3:59
I will click on get targets
4:03
and I will select this Square tube and
4:07
click on tree man extend
4:09
so you can see that it has extended up
4:13
same way we will do it here we will
4:20
this face and click on get targets and
4:23
select this space and say three main
4:26
extend so you can see that it has been
4:31
we will do same on other side
4:48
we will select this face
4:59
select this face and say tree man extend
5:12
this face and say get targets select
5:15
this one and say three main extend
5:20
so we have extended all four vertical
5:24
now we will remain extend this
5:30
so I will go to the isometric
5:32
and so I will select this face and
5:37
this phase and say get targets
5:40
and select this one and say three main
5:47
same way we will select this face
5:52
this face and say get Target select this
5:55
face and set remain extend
5:59
so we have did One two now we will do
6:02
third and fourth same way
6:09
this face and second Target and select
6:12
this one and set frame and extend
6:15
now we will do the same for the last one
6:23
and this face say get targets
6:26
select this one and set three in my next
6:31
now we will do the same for this one
6:35
so this will be our Target this phase
6:40
say get targets select this face and say
6:51
okay which is updated
7:02
get targets select this one and say
7:08
two and now we will do for the third one
7:17
and say get targets and select this one
7:21
and say three minus 10.
7:27
now we will do for the fourth one
7:37
say get targets and select this one and
7:47
now you can see that this corner is
7:51
beautifully handled by the dodo
7:57
so we will now close it and we will now
8:03
and you can see that it is beautifully
8:05
made with dodo workbench and once I
8:10
extrude length of my pad from 2 meter to
8:19
and I hide my box here
8:23
so you can see that it is it is updated
8:27
so this is how you can design
8:30
a parametric frame with the help of
8:37
and I again change this to the 2 meter
8:44
see this with the help of this dodo
8:47
Workman you can easily design a frame
8:49
not with square tube with other profile
8:52
also so I hope you have liked this
8:55
to Model A simple frame with the help of
8:59
Dodo workbench and if you like my method
9:02
of teaching then please like subscribe
