Hello friends Welcome To freeat tutorial
0:02
and in this tutorial we will learn a
0:04
subtractive pip feature in
0:07
freecat you can also visit my website
0:10
Mech nexus.com where I write articles
0:14
and tutorials on freead you can download
0:18
my tutorial source file from the here if
0:21
you like my method of teaching then
0:24
please support me on coffee.com you can
0:27
buy me a cup of coffee you your small
0:30
support will help these channels to grow
0:33
and it will motivate me to create more
0:35
awesome content on free CAD I will
0:39
provide my website and my Kofi donation
0:42
page Link in a video descriptions so
0:45
let's come back to our
0:47
tutorial so here I have activated the
0:50
part design and now I will create a new
0:53
file and I insert a new body I own my
0:57
origin plane and select this uh the exit
1:00
plane and uh create a
1:05
sketch and here I will
1:16
rectangle I will give the
1:19
dimension let's give horizontal
1:34
800 and now we will uh make it
1:42
symmetric so this is symmetric and it is
1:44
fully constrained now I move the
1:48
dimension I close the
1:51
sketch I off the origin plane and
1:56
now I will uh select my sketch and click
2:01
extrude and let's extrude to the 500
2:14
okay now we will see our sketch so this
2:22
sketch or best thing we can do we will
2:26
keep it symmetric to the plane and say
2:31
now we will uh select the front face and
2:36
sketch and on the bottom side
2:45
a a square let's give the
2:49
dimension let's give horizontal
2:55
150 and uh vertical Dimension also 150
3:06
dimension and now I will select these
3:09
two points and give the horizontal
3:16
75 move and now let's give vertical
3:22
Dimension uh let's see you
3:30
Dimensions now I will close my
3:33
sketch so on this phase we have created
3:37
one square and on the other
3:41
face we will create a
3:45
circle let's switch to the
3:58
it and on this pH I will uh select a
4:09
circle and uh VI it a vertical
4:14
relation and now I will give the
4:22
250 and let's give the
4:31
it let's make this diameter little bit
4:36
bigger so let's make it uh
4:49
now we will on our plane and select this
4:55
will create our guided
4:58
curve so I will select on sketch and
5:02
from here I will switch to the wireframe
5:06
view and I will rotate my
5:09
model and I will click on this project
5:11
geometry I will uh project this age and
5:18
circle and now I will select a
5:22
AR and I will create an
5:32
so this is this Arc is very
5:36
now I will close it I will off the
5:43
here we have a two profile one is a
5:48
circle other one is a square and we have
5:51
a guided curve so here we are going to
5:54
learn the subtractive pip features this
5:56
subtractive pip feature is a very
5:58
similar to the additive pipes the only
6:01
difference is that additive pipe is used
6:04
to add the material when you use the
6:07
additive pipe material get added and
6:09
when you use subtractive pipe material
6:11
get removed if you want to remove the
6:14
material which has the two
6:17
crosssections then you must use the
6:19
subtract to pip features now let's click
6:23
on the subtractive P features so here it
6:26
will show you the all valid sketches
6:30
so if I click on the sketch
6:32
one then it get highlighted here so
6:35
basically here freeat providing you the
6:39
options to select the features so your
6:44
feature so my base feature will be this
6:46
square and I will create okay and now
6:52
sa along means I have to provide the
6:55
part to click on select
7:00
click on this Arc so you can see that
7:04
uh it has been removing the material of
7:09
Prof profile of this Square along this
7:12
Arc but we have the second profile so
7:19
here in a selection transformation so it
7:23
is a constant because it is uh removing
7:27
with respect to this Square along this
7:29
Arc so we will click on the
7:32
multi-sections and then click on ADD
7:35
sections so we will add our second
7:37
section which will be this
7:39
circle so you can see that
7:46
removed with respect to this guided
7:52
Square starting from this square and
7:55
ending to this circle so we will click
8:00
okay and we will switch to the flat
8:11
my pad and subtractive feature is my end
8:14
feature so you can see that material has
8:17
been removed now I Will Show You by
8:23
section so I will move to the view and
8:26
click on this persistence section cut
8:32
uh select the let's say y
8:36
AIS not y it is from the
8:45

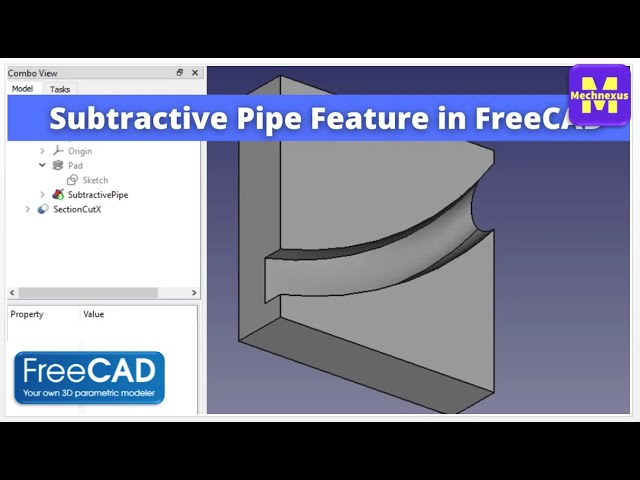

flip so you can see that uh sections of
8:49
a material remove portion I click on
8:53
close I will hide this body so you can
8:56
see that uh it is a perfectly removing
8:59
the material from Square to the circle
9:07
Ark so this is how to use the
9:10
subtractive pipe feature in freeat so
9:13
this is all about this tutorial thank
9:15
you for watching and thank you for your
