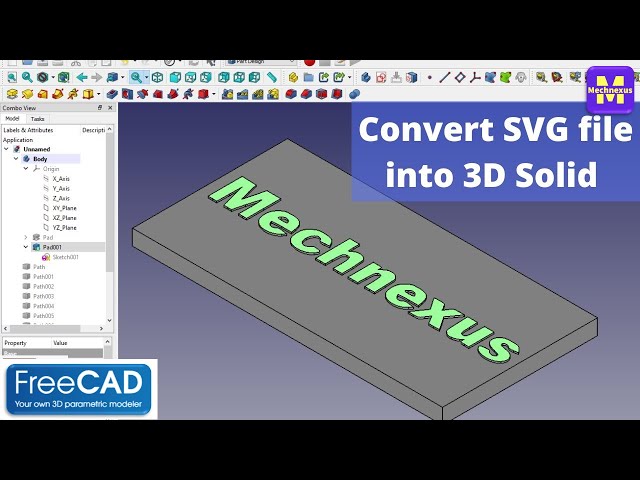

Convert SVG File into 3D Solid | FreeCAD Tutorial | FreeCAD 3D Printing | Mechnexus |
299 views
Jul 2, 2025
#FreeCAD #FreeCADtutorial #freecadtutorialfor3dprinting In this Tutorial I have explained How to Convert SVG file into 3D Solid. ▶️ Visit my website for more info on FreeCAD-: https://mechnexus.com/ ▶️ Get my FreeCAD Crash Course for beginner-: https://www.udemy.com/course/freecad-course-for-beginner/?referralCode=3BA9B526A12F96295D44 ▶️ Download Source File of Tutorial-: https://mechnexus.com/model-locating-v-block-in-freecad/ ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus Your kind support will help to grow this channel. Even if it's just enough to buy me a coffee every little helps and this will be repaid in full through my sharing of knowledge. ▶️ Disclaimer & Copyright
View Video Transcript
0:00
friends welcome to frequent tutorial and
0:01
in this tutorial we will learn how to
0:03
convert svg file
0:05
into the 3d solid as you can see that i
0:08
have
0:10
used my channel name as a svg file and i
0:14
have successfully converted into the 3d
0:16
solid
0:17
it is look like a embossing
0:20
and
0:21
i have not did anything in this stage i
0:24
have just converted my svg file into the
0:27
3d solid with the help of a tool
0:30
available in a freecad
0:33
so we will learn from the scratch how to
0:35
convert svg file into the 3d solids so
0:38
before starting this tutorial if you
0:41
have not subscribed my channel then
0:42
please subscribe my channel and
0:45
keep supporting me by sharing my video
0:48
and liking my video
0:50
and if you like
0:52
my method of teaching then you can
0:54
support me i have a qualified donation
0:56
page
0:58
its link is given in the video
1:00
descriptions
1:01
so never forget to visit it
1:04
so let's start our tutorial so i am
1:07
closing this file
1:09
and i will create a new file so before
1:12
starting i would like to explain you the
1:15
difference about a svg image file and a
1:18
normal image file
1:20
svg files are the scalable vector
1:23
graphics
1:24
the difference between these two is
1:27
is quite obvious
1:29
first i will open a normal png file
1:33
so if i open it
1:35
my normal png file and if i zoom it so
1:38
you can observe that its edges are
1:41
getting blur its quality is reducing
1:45
at the outside you can see that more you
1:47
zoom the more reduction in a quality
1:53
but this thing does not happen with the
1:55
s
1:56
svg file so
1:58
here is the svg files
2:01
of my channel name so
2:03
if i zoom it
2:05
if i zoom it and you can see that its
2:08
quality is not
2:10
reducing
2:12
its sharp is it having the very sharp
2:14
edges as we have observed in a
2:17
normal
2:19
png or jpg file
2:21
so you can clearly observe the
2:23
difference
2:24
between a svg file and a
2:28
normal image file
2:31
so now
2:34
we have a blank part
2:36
and
2:37
first we will
2:40
set our workbench as a part design
2:42
workbench
2:44
and we will
2:46
create a body here
2:49
you can also select this part but this
2:51
part work as a container
2:53
but i would prefer to go with body
2:55
and if you press the space bar then you
2:58
can visible your planes
3:00
so i will select this xy plane to
3:04
make a plate so i will select this and
3:07
you can also if you switch to the
3:09
taskbar you will get the
3:13
upcoming
3:14
things you which you have to do for
3:16
example if you have selected the part
3:17
then task will automatically set you to
3:19
create the sketch
3:20
so i will
3:22
i will follow the taskbar and do the
3:24
same
3:25
and now
3:27
these planes are looking very weird so i
3:29
will click on my origin and press the
3:32
space bar
3:33
tab on my keypad and i will hide it
3:36
now i will draw a rectangle of 100 by 50
3:42
so i will give this as 100
3:46
and vertical as a 50
3:53
now i will close my sketch
3:56
i will close it
4:00
and
4:01
i will make my plate
4:03
5 mm
4:06
and i will say ok
4:09
now
4:10
i will import my svg file
4:12
to import the svg file
4:16
go to the file
4:17
and click on import
4:20
and here's the my svg file
4:22
and i will say okay then our popup will
4:25
come
4:26
either you want to import as a drawing
4:28
or as svg so i will select svg and i
4:31
will say yes
4:34
so if i rotate my part then my svg has
4:37
been imported here
4:42
if i see from the front plane so i have
4:45
did the extrusion at upper side so what
4:48
i will do
4:49
i will change the direction of my
4:52
extrusion so it will come on the surface
4:56
okay
4:57
so
4:59
but the problem is that the svg we have
5:02
imported
5:03
is
5:04
going outside of our plate
5:07
so we will scale this so to scale this
5:13
we will switch to the draft workbench
5:16
and
5:17
here
5:19
if you are facing any problem with grid
5:20
then you can easily off the grid
5:27
and
5:28
i will move my toolbar here
5:31
okay
5:32
so
5:34
in a draft workbench you will see here
5:37
one options
5:39
known as a scale
5:42
so these these are the
5:44
individual entities
5:46
which has been free cad
5:50
converted from the svg file so
5:52
here is the path one part two part three
5:54
par part four path five six like that
5:59
so
6:00
we will go on the scale
6:04
and we will select all our entities here
6:12
and now we will enter here our inter
6:14
point
6:15
and we will select one point
6:27
i would say
6:28
0.8
6:31
0.8 yes point eight is looks very good
6:35
so we have
6:36
from
6:37
one to one scale we have reduced to the
6:40
point two
6:41
and we will say okay
6:44
so the here is a
6:46
our new one part 011
6:49
rest of the things we will select and
6:52
press the space bar we will hide it
6:55
now
6:57
we will move it
6:59
so select our path here which has been
7:03
converted
7:05
into a
7:06
single block now
7:08
so we will select move and we will
7:11
select a point
7:12
and
7:14
we will approximately place on the
7:17
center here
7:19
so now you can see that our svg
7:22
converted
7:24
entity is now the center of the plate
7:27
but still
7:29
if i if i select this and i go to the
7:32
part design workbench and if i try to
7:35
extrude it i will get the error because
7:38
it is not a sketch still
7:44
because freecad not recognizing it as a
7:47
sketch so we will again switch to the
7:50
draft workbench
7:53
and in draft workbench
7:55
we will select this our
7:57
whole
7:58
entity
8:00
previously it was unmerged now it has
8:02
been merged so we will click on it and
8:05
we will convert into the sketch and we
8:09
no longer need this so we will press
8:12
this
8:13
select it and press space bar and we
8:15
will hide it
8:17
so now
8:18
it is the sketch
8:23
but if we again go to the part design
8:25
workbench and if we try to extrude
8:29
so it will not
8:31
extrude it because
8:36
because our sketch is outside of the
8:38
body
8:40
it is the not the part of the body so in
8:42
free cad
8:44
there is a very simple method to do this
8:46
you just drop this select the sketch and
8:49
drop on the body so now you will see
8:52
that the sketch is now the part of this
8:54
body means sketch is children and our
8:56
body is parent previously this sketch
8:59
was outside of the body
9:02
now we can easily extrude it so now we
9:06
will select our sketch and we will use
9:08
the pad command
9:10
and
9:11
it will take some time depends upon the
9:13
complexity of your svg file
9:16
so now you can see that my converted
9:19
sketch has been extruded so i will give
9:22
it some dimension of 0.5 mm
9:26
and i will say ok
9:31
now i can give some
9:34
color
9:36
so what i will do i will go to my pad
9:38
and set colors
9:40
and i will select the faces
9:48
and i will give some color
9:52
so i will give this yellow
9:56
so you can see that how
9:59
we have successfully converted our svg
10:02
file into the 3d solid
10:05
in freecad this feature is very useful
10:08
to create the name plate of the machines
10:11
or
10:12
but those graphics may take time depend
10:15
upon the complexity of your svg files so
10:17
this is all about this tutorial and if
10:20
you like this tutorial then please like
10:22
subscribe and share my video
10:24
and
10:25
if you like my method of teaching so you
10:28
can support me on coffee donation page
10:30
link is given in the video descriptions
10:33
i will come with more useful tutorial on
10:36
free cad thank you for watching and
10:38
thank you for your valuable time
