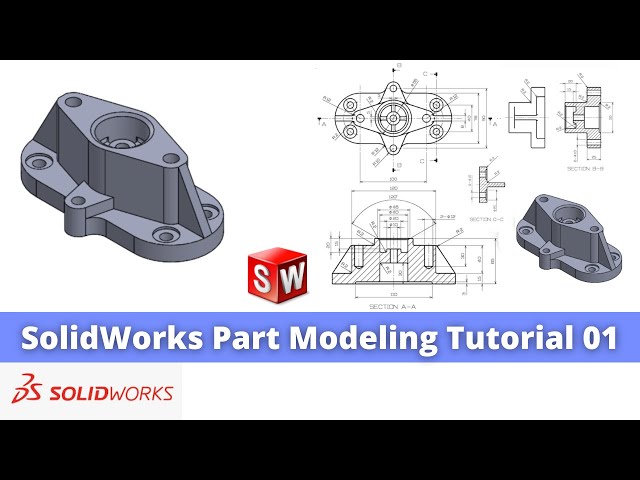

SolidWorks Part Modeling Tutorial 01 | SolidWorks Tutorial | SolidWorks Part Modeling |
Aug 28, 2024
#SolidWorks #solidworksmodeling #solidworkstutorial In this video I have explained How to Model Part in SolidWorks. ▶️ Download This Tutorial Source File From my Ko-Fi Store-: https://ko-fi.com/s/d8a110f255 ▶️ Visit my website for more info-: https://mechnexus.com/ ▶️ The Complete SolidWorks Course : From Zero to Expert!-: https://www.udemy.com/course/solidworks-complete-course-zero-to-expert/?referralCode=B30458218EA1375DDB6E ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus 👉 Indian User can Support My Work Using my UPI ID: amar.patel456@ybl & amar.patel456@axl All donations will be used to purchase equipment to improve my productivity and increase the quality of the content that I produce. Your kind support will help to grow this channel. Even if it's just enough to buy me a coffee every little helps and this will be repaid in full through my sharing of knowledge.
View Video Transcript
0:00
Hello friends welcome to Solid Works tutorial and in this tutorial we will uh model this uh solid works part modeling
0:07
tutorial 01 and uh as you can see that I have already modeled it with respect to
0:14
this drawing and I will show you from the scratch how you can do the same in solid works so I will close this file
0:22
and create a new file you can also visit my website Mac nexus.com and you can
0:29
visit this solid works tutorials tab where I have written so many tutorials
0:35
on solid works where you can follow the stepbystep guide to model the
0:42
parts if you like my method of teaching then you can also support me on kofi.com
0:48
you can buy me a cup of coffee your small support will help these channels
0:54
to grow and it will motivate me to create more awesome content on solid
0:59
work so let's come back to our tutorial so here I have created a new
1:07
file and with respect to our drawing we will uh select this top plane and click
1:13
on the sketch and uh we will uh select this slot tool and
1:23
uh create a slot
1:30
and now we will give the dimension so from Center to Center is of
1:37
100 mm and now from uh
1:46
Center this is off a 50 so it is already constrain now we will uh merge the slot
1:54
Center Point with the origin Point click on coincidence
2:01
and now we will uh give the
2:08
dimension from this to this is of uh
2:15
76 if you see our drawing here so it is a
2:25
76 now we will uh create a two
2:34
circles one here and one here and uh select smart Dimension and from this to
2:43
this Dimension is of 90 mm and uh from origin it is of
2:54
uh 45 and and uh diameter is of
3:06
20 and select this and this and add the equal and now we will select this and
3:14
this and add a vertical relation similarly this and this and add a
3:19
vertical relation now we will uh select a line tool and uh
3:27
create a line which will be tangent to our Circle
3:34
select line tool and uh select
3:40
line add it
3:48
similarly now we will uh remove the unnecessary geometry
4:20
and now we will uh select smart Dimension
4:25
and from this to this we will provide
4:31
76 / 2
4:36
now we will constrain this Dimension so for this uh we will Define one of the
4:43
dimension which is of 40 mm click on okay now our sketch is fully
4:49
constrained we will come out of it press control 7 now select the sketch
4:55
click on exclude and we will exclude it to the distance of 15
5:03
mm now click on okay
5:08
now we will uh provide the fillet at this Four Corners at a value of R12 so
5:17
we will select the fet and give here the value R12 and
5:22
select this H this
5:28
H this AG and uh this one and we will click on
5:36
okay now we will uh create this profile so for this we will select the phase and
5:42
click on sketch and we will make it normal now we will uh create
5:51
uh three
5:58
circles in know one is of 55 so give it a value
6:07
55 and uh outer one is off Dia
6:16
24 and select this and this and made it
6:24
equal and now we will uh draw the tangent line
6:33
select this and this and uh add the tangent select this and this and uh add
6:40
a tangent now select the line and uh again
6:46
create a line on the other Sides Now select uh this and this and add a
6:56
tangent and select this and this and add the
7:02
tangent and now we will use the trim tool so trim
7:12
it and now we will uh again uh create a
7:19
line now select this and this and add a
7:26
tangent select this and this and and uh add a tangent similarly on the other
7:34
side select this and this and add a
7:44
tangency add a tangent now we will use the
7:51
trim first we will uh remove the outer unnecessary
7:57
geometry and now we will remove the inner one this and this and now we will close
8:08
it and we will uh extrude it to the distance of 50
8:15
mm press crl 7 select the sketch click on
8:20
extrude and add the value of a 50
8:26
mm and now we will uh create this
8:31
boss which you can see here on the both the side so we will select the face and
8:38
uh click on the sketch now move to the
8:44
top and uh set our orientation now we will use on the
8:50
convert entities and convert it and uh we will also project this ages
8:57
so click on convert entities by pressing the control key and select
9:02
all three edges and from here we will select a line
9:09
tool we will draw the two line on left hand side and right hand side and now we
9:16
will select this and this and add a
9:22
tangent and add a tangent now we will use the trim tool to trim the
9:29
unnecessary geometry our uh sketch is fully constrained we will come out of it and
9:37
create a Extrusion of 10 mm select the sketch and cck the
9:44
Extrusion of 10 mm click on
9:51
okay and now we will mirror it on the other side so we will uh select the mirror
9:59
tool tool and from here we will select the mirror plane which is the mid
10:04
plane and here is a boss exude 4 is selected and we will click on
10:12
okay now press uh control 7 for isometric and now we will create this
10:19
rib so for this we will select this phase and click on the sketch we will rotate our model and make
10:27
it normal and now now we will select this age and click on convert entities select
10:33
this and click on convert and
10:38
here we will uh create a a
10:45
rectangle and we will click on convert entities
10:50
and now we will uh delete this uh vertical line and now we will uh use the
10:59
trim tool and uh we will trim the unnecessary
11:06
geometry and now this is of 8 mm so we will select this and this and uh provide
11:15
the value 8 mm and it would be symmetry so here it will be Center it will be 4
11:25
mm so our uh profile is fully constrained we will come out of it
11:30
select the sketch click on extrude select the profile select the
11:37
reverse and from here select up to surface click on
11:42
okay now we will uh create a cut so for this
11:48
we will uh select the face
11:53
and create a sketch select it and create create a
11:59
sketch and now we will use the line tool and we will create a rough
12:11
profile and uh we will uh switch to the front view and we will make it
12:19
vertical and uh this Dimension we provide approximate let's give it 45
12:29
and uh we will close it and we will use the cut
12:37
tool and uh we will say it through all
12:42
say okay or we will Define the condition up
12:49
to face so select up to surface and select this opposite surface click on
12:55
okay now we will mirror it so we will go to
13:00
the mirror and from here we will select the mirror
13:06
plane and here is a cut and we will also select this extrude and click on okay so our rib is
13:14
got mirror on the other side and
13:19
now we can see here the cut at a bottom
13:25
so we will uh select this bottom face and and uh click on the
13:32
sketch and uh we will make it normal and now we will select a
13:38
rectangle tool select a smart Dimension and
13:45
uh give it a value of 110 which you can see here and select
13:53
this to this 110 IDE by 2
14:00
and uh similarly this is of
14:09
55 and uh and this will be 55 /
14:17
2 now click on
14:22
close select the sketch click on exclude Cod and uh provide the depth of a 3 mm
14:33
now click on okay and now here we will uh provide the
14:39
fillet of R2 so select the
14:49
fillet and from here give the value
14:54
R2 select our four corners
15:00
and uh select this H select this
15:11
H select this and this
15:18
corner now click on okay now press uhr
15:25
7 now we can see the here the
15:31
cut so we will select the face and uh
15:36
click on the sketch and we will make this bottom phase normal and select a
15:44
circle so this is of a diameter
15:56
40 and this will be the cut of
16:03
uh 27 mm because from if you see it it
16:08
is of 30 so now we will come out of the
16:15
sketch select the sketch click on exude and provide this uh
16:23
27 click on okay now we will provide the fillet of
16:30
R2 so we will select this age and this age and select the
16:37
fillet and give the value R2
16:43
now press control 7 we will uh select this phase and uh
16:51
create a sketch and we will create here the two
16:57
circles inner one is of a 20 and outer one is a
17:04
40 select smart Dimension inner one is of uh
17:12
20 outer one is of for
17:22
40 and now we will come out of the sketch
17:30
select the sketch click on exclude cut and provide the depth of a 20
17:38
mm click on
17:44
okay now we will select this pH and uh click
17:49
on the sketch and click on the convert entities come out of the
17:54
sketch and uh remove the material of a 15 mm so
18:00
click on extrude Cut and give it a 15 mm
18:05
click on okay now we will uh remove the material
18:13
at this portion so for this we will uh select the phase and uh click on the sketch and
18:21
now we will make this normal so here we will select this inner
18:28
diameter and outer diameter and click on the convert entities and uh we will uh
18:37
select line tool and draw the vertical line and select a line tool and draw the
18:45
horizontal line and now we will Define the
18:51
dimension from origin to this is of 2.5
19:03
and this is off
19:09
2.5 and now use the trim tool to trim
19:20
it and now we will uh close
19:26
it select the skage C click on extrude Cut and uh set the end condition through
19:36
all and click on
19:41
okay and now we will uh provide the fillet of R2
19:48
on the Four Corners so select the fillet value is R2 and now select this
19:56
age this ede this and
20:05
this not the face but the age and click on
20:13
okay and now we will polar pattern it so from here we will select the circular
20:20
pattern and from here we will uh select this extrude Cod and this
20:27
fillet and we will go to the axis and we will
20:32
select this cace and keep on the equal spacing 360 /
20:42
4 and now we will uh create this profile this
20:49
uh look like a chamfer so for this we will select this front plane and select
20:55
the sketch and we will select this outer diameter and click on convert
21:00
entities and select this and make it for the
21:05
construction and from here we will make it normal uh and now uh from here we will
21:15
switch to the wireframe and uh we will select a line
21:21
tool create a triangular profile and from the origin we will uh
21:29
create a construction line and click it and click it for the
21:37
construction and now from this construction to this is of
21:46
60° because this is the 120
21:54
and from this point to this point is of for
22:01
23 because diameter is a 40
22:09
six now click on okay
22:15
and switch to the Shaded View and now we will use the Revol cut select Revol cut
22:23
select this AIS and click on okay
22:30
now we will uh provide the fillet this and this edges so select the
22:37
fet tool select
22:45
this select this select
22:51
this select this select this
23:01
this this and click on
23:09
okay and now we will uh create a through hole
23:14
here so we will select the face and uh click on the sketch select a circle
23:21
create a circle and provide the diameter of uh 10 mm
23:34
now we will uh close it select the sketch click on extrude
23:42
COD and from here say it true all say
23:49
okay now to cross check we will uh take a
23:57
sections click on okay so you can see that uh our this
24:03
section view is matching and here in the drawing here
24:08
hatching is not shown but here hatching will come because this uh section is
24:13
passing through the
24:20
rib now we will uh come out of the sections
24:26
and we will uh create the these two holes so for this we will select the
24:31
phas and uh click on the sketch we will switch to the top
24:38
view and click on the convert entities select this and uh this and
24:47
uh and make it construction select the
24:54
circle and create a two Circle so this is the pl hole that's why I'm making
24:59
with a cut you can use the whole visard tool now this is off
25:06
a diameter 10 select this and this and make it
25:21
equal now we will select it click on extrude cut
25:28
say through all say okay now we will make here the drill
25:36
hole which we can see in the sections so for this we will use the whole
25:44
Wizard and we will go to the position switch to the top view and in the type we will uh select a
25:52
drill hole and we will select reset custom sizing and we will go to the
25:57
position and here we will snip and we will get this
26:04
Center we will select here and we will get the center now we will go to the
26:10
drill and here is of a drill of 12
26:19
mm 12 and uh depth is of 30 which we can see
26:26
here and click on okay so here uh drill has been
26:33
placed and now we will uh create these two counter board
26:39
holes so for this we will select the face and uh click on the whole
26:47
Wizard and from here we will select this counter board and
26:54
uh we will activate here custom sizing
27:03
and in the custom sizing here we can see the drill
27:08
details outer one is of uh 20
27:16
mm drill hole is off a 10 mm which we can see here 10 and this will be give
27:25
R2 means our 2 mm depth and now we will go to the
27:34
position and uh we will place our drill hole position and now we will select smart
27:48
Dimension and here if you see here here is a 40 mm is given so we will select
27:55
smart Dimension from this Center to this Center I will provide
28:03
40 and uh from this to this we will provide the
28:14
20 and now the position of this uh counter
28:21
board here is a construction circle is shown but uh it has been not given so we
28:27
will uh provide the approximate value of 65
28:35
mm and now this point is constrain and now we
28:42
will select this and this and add a vertical relation and uh we will come out of the
28:49
sketch and now we will mirror this counter board on the other side so we
28:55
will select the mirror tool and and from here we will uh select this mirror plane
29:03

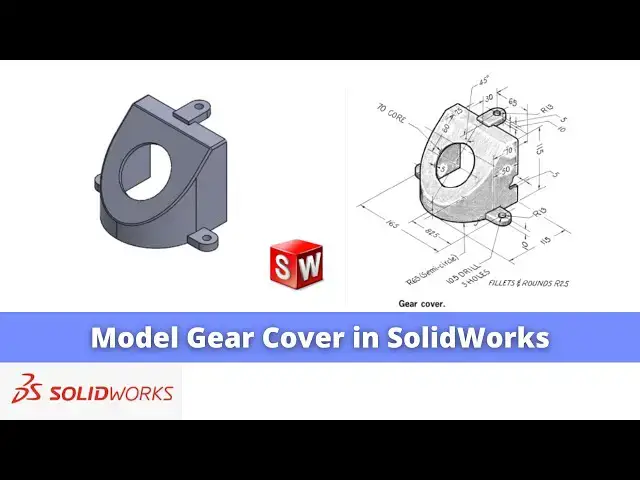

and click on okay so you can see that how we have
29:10
converted this uh isometric model and into the 3D model
29:18
in a solid works with respect to the drawing and uh this tutorial is for the
29:24
beginner user those who have just started learning the part modeling and this is a very interesting model to read
29:30
the drawing and uh create the features so this tutorial is for the beginner as
29:36
well as a intermediate user I hope you have enjoyed this tutorial and if you have enjoyed it then please like
29:42
subscribe and share my channel and also support me on coffee.com you can buy me
29:48
a cup of coffee link is given in a video description your small support will help
29:53
these channels to grow and it will motivate me to create more awesome content on solid works thank you for
30:01
watching and thank you for your valuable time
