Preparing Switch #1 (SW1) - Step 3 - The Ultimate DIY 3220-Point Breadboard

Name: Preparing Switch #1 (SW1) - Step 3 - The Ultimate DIY 3220-Point Breadboard | Open Video
Uploaded: 2024-10-11T12:09:07+00:00
Duration: 4 min 45 s

0:00
Okay, now we're on step three for switch number one for the DIY 3220 point breadboard project
0:08
For this step, we're going to take about a six-inch piece of green wire this time
0:20
So I'll do... Let's see. about six inches and then I'll cut it about there and then just as before we'll take one end
0:47
and strip the end of it about an eighth of an inch or so back just enough to
0:54
expose the wire I'll give it a few twists Now this green wire, we're going to want to attach it to
1:06

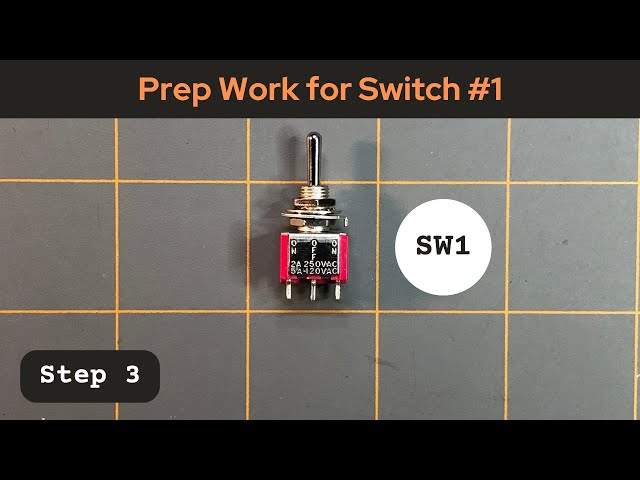

terminal number three of switch one So looking at the bottom side of our switch
1:17
we see that we've already got the wires connected from step one to terminal two
1:24
and then the wire from step two to terminal five. Now we wanna attach this new green wire we just cut
1:33
and we wanna attach it to Terminal 3 on switch 1. So I'm going to grab the helping hands again
1:50
And then I'll attach the switch. The switch or have the helping hands hold the switch for me
2:04
Again, we're going to be attaching that green wire to terminal number three on switch one
2:14
And just as before I going to ten the end of the wire and then ten terminal three That way it will attach to that point much easier
2:31
I'll move you out of the way
2:46
out of the way let's see let's see I'm going to come in vertical here
3:16
Okay, that's on. And again, we will take a piece of heat shrink tubing
3:28
And I going to use black this time I just need enough to cover up the area around the terminal and the wire that exposed
3:47
Again, that way we're protecting it from shorting out from other conductors in our circuit later
3:58
So now I need to take my heat gun and we'll heat up that tubing to shrink it down, making sure we're coming at it from all angles and all sides
4:18
Okay, that is on there. So now we have our green wire attached to terminal number 3 on switch 1
