Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04
learn how we can interl dimension in
0:07
solid works you can also visit my
0:10
website macn nexus.com and you can visit
0:14
this SolidWorks tutorials tab where I
0:17
have written so many tutorials on solid
0:22
works where you can follow the
0:24
stepbystep guide to model the
0:27
parts if you like my method of teaching
0:30
then you can also support me on kofi.com
0:33
you can buy me a cup of coffee your
0:37
small support will help these channels
0:39
to grow and it will motivate me to
0:42
create more awesome content on solid
0:44
works so let's come back to our
0:48
tutorial so here I have created a new
0:51
file and I will select this front plane
0:56
sketch and uh I will select the two
1:01
rectangle and I will give my
1:05
Dimensions I will click on spot
1:07
dimensions and uh give horizontal
1:11
Dimension and before that I will uh
1:31
and uh vertical height
1:42
now I will keep it uh symmetric with our
1:45
origin so I will select this line and
1:49
this origin points and uh I will give it
1:57
vertical I will give it
2:04
125 now I move my Dimensions so now our
2:16
now I will uh click on
2:19
extrude select the sketch and I will
2:27
mm so this is how we have a created with
2:30
simple plate and now we will go to the
2:41
800 and uh this 250 I will
2:57
uh our origin is not at the center and
3:01
if I come out of the sketch and if I on
3:05
my plane so you can clearly see that our
3:09
planes are offset because our origin is
3:13
here in a solid box we can Interlink the
3:18
dimensions easily so that when we change
3:22
this or order length and height then
3:27
this Dimension will be get updated with
3:29

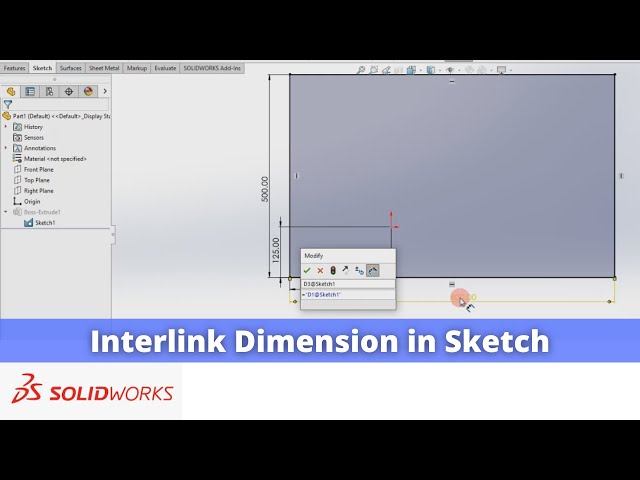

with respect to this two to do that in
3:32
solid works all you have to do it double
3:35
click on this Dimension and uh press
3:39
equal symbol and select this Dimension
3:43
so that uh this Dimensions value is
3:47
entered which is D1 atate sketch 1 and
3:52
give the Divide symbol by
3:57
two so you can see that
4:00
once we have Interlink the dimensions it
4:03
got changed similarly we will do for
4:09
Dimension we will double click on it
4:11
press the equal symbol and select these
4:15
dimensions and press divide symbol and
4:19
two which means that we have defined the
4:23
relations means my length is half of
4:27
this and my height is a half of this one
4:32
so whenever I change the orall length
4:34
for example if I make this 800
4:38
1,000 so you will see that uh this is
4:42
updated to 500 and if I made it again
4:48
250 then it will be get updated to the
4:53
125 you can Define any relation if you
4:56
double click on it if you divide it by
4:58
four times then it will be get divided
5:01
by four times so this is how you can
5:05
Interlink the dimension in solid works
5:08
and uh enhance your parametric
5:12
modeling so this is all about this
5:15
tutorial how to Interlink dimension in
5:17
solid works thank you for watching and
5:20
thank you for your valuable time
