Essential Sketcher Tool in SolidWorks | SolidWorks Tutorial | SolidWorks Part Modeling |
Apr 24, 2025
#SolidWorks #solidworksmodeling #solidworkstutorial In this video I have explained How to Reset SolidWorks Setting to default. ▶️ Download This Tutorial Source File From my Ko-Fi Store-: https://ko-fi.com/s/d8a110f255 ▶️ Visit my website for more info-: https://mechnexus.com/ ▶️ The Complete SolidWorks Course : From Zero to Expert!-: https://www.udemy.com/course/solidworks-complete-course-zero-to-expert/?referralCode=B30458218EA1375DDB6E ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus 👉 Indian User can Support My Work Using my UPI ID: amar.patel456@ybl & amar.patel456@axl All donations will be used to purchase equipment to improve my productivity and increase the quality of the content that I produce. Your kind support will help to grow this channel. Even if it's just enough to buy me a coffee every little helps and this will be repaid in full through my sharing of knowledge.
View Video Transcript
0:00
Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04
learn essential Sketcher Tools in solid
0:08
works so here I have a launched solid
0:10
works and I will create on a file and I
0:14
create a part click on
0:20
okay you can also visit my website macn
0:24
nexus.com and you can visit this solid
0:28
works tutorials tab where I have written
0:31
so many tutorials on solid works where
0:35
you can follow the stepbystep guide to
0:38
model the
0:40
parts if you like my method of teaching
0:42
then you can also support me on kofi.com
0:45
you can buy me a cup of coffee your
0:49
small support will help these channels
0:52
to grow and it will motivate me to
0:54
create more awesome content on solid
0:57
works so let's come back to our
1:02
tutorial now we have
1:06
a planes here at our left hand side
1:09
front top and right we will select this
1:13
front plane and uh click on the
1:18
sketch
1:21
now we will learn the essential Sketcher
1:24
tool so here we have the blank screen
1:28
and we will first just go with a
1:32
line so here we have a three type of a
1:35
line line Center Line and midpoint
1:38
Center Line so first we will click on
1:40
the line so once you click on the line
1:43
you will see the four
1:45
options as a sketch horizontal vertical
1:49
and angle if you select as sketch then
1:54
you can create a line as you
1:58
draw for example if I wanted to draw
2:01
something like
2:03
this right click and click on select so
2:06
we have draw as a sketch
2:10
now we will again click on the here
2:14
line and this time we will select on
2:18
horizontal so if we select on horizontal
2:22
then we can only draw the horizontal
2:24
line if you move your mouse to the
2:26
vertical
2:28
position so you can see that this line
2:31
will be
2:33
horizontal only either in a left hand
2:37
side or right hand side you cannot draw
2:44
vertically similarly we have the
2:46
verticals if we select on a verticals
2:49
then we can only draw the vertical lines
2:52
we cannot draw the horizontal line
2:54
either we can draw top or bottom
3:00
let's see the another options in a
3:05
line fourth one is a angle if we click
3:09
on it we can only draw the angular line
3:13
we we
3:19
can select one point at origin and we
3:22
can drop it
3:30
and you can see that we are not seeing
3:33
the horizontal constraint symbol if we
3:35
select the line and apply the horizontal
3:38
constraint then this line will become
3:40
the
3:43
horizontal and uh this is a center line
3:46
if we click on it and draw any
3:49
line then it will be come as a center
3:53
line as a dotted
3:57
chain and let's delete it
4:00
and uh third one is a midpoint
4:03
line and if we create a line then we
4:07
will get a
4:10
midpoint of our
4:12
line so this is the fourth type of line
4:15
tool available but from my side it is
4:19
recommended use as a sketch and apply
4:23
the
4:24
constraint if you use the as sketch and
4:28
create a line
4:36
then you can make it horizontal or
4:39
vertical for example I select this line
4:41
and click on the vertical then this week
4:43
will become vertical and if I delete
4:46
this constraint I select the line and if
4:50
I click on the horizontal then this line
4:52
will be the
4:58
horizontal so constraining feature we
5:00
will
5:01
discuss later once we start creating the
5:05
part sketch now next one is a rectangle
5:10
so in rectangle we have the multiple
5:13
options to create a rectangle first one
5:16
is a twoo corner
5:19
rectangle if we select one point and
5:22
drop the another point then we get a
5:25
rectangle
5:29
second one is a center
5:33
rectangle if you select this options
5:36
then you will get a point at a center of
5:40
this
5:46
rectangle third one is a three Corner
5:48
rectangle and three point Center
5:51
rectangle and fourth one is a
5:53
parallelogram if I select on last option
5:57
then I can create a parallelogram
6:01
so in this case this two line will be
6:03
parallel to each
6:09
other then Circle then we have the two
6:13
option to create a circle one is
6:16
the circle with a center point we can
6:20
select it and we can draw the
6:22
circle then here is a polygon just click
6:26
on the polygon number of sides which you
6:30
want for example
6:32
four
6:34
or five let's select the
6:44
four so this is the four
6:46
site 1 2 3
6:51
4 let's again click on it and click on
6:55
the six
7:00
now you will get the six
7:06
site and next one is a spy line poly
7:09
Line This is the use to draw the curve
7:14
with the control points if I select the
7:16
control points options then I can create
7:21
a spy line with the control points just
7:25
right click and click on select so these
7:27
are the control Point by which we can
7:31
create a spy Line This is used to draw
7:34
the surface Parts in solid
7:42
works and then
7:44
ellipse partial ellips Parabola and
7:48
conic let's let's select the
7:54
ellips so this is how you can draw the
7:57
ellipse and here you will get the
8:00
control
8:04

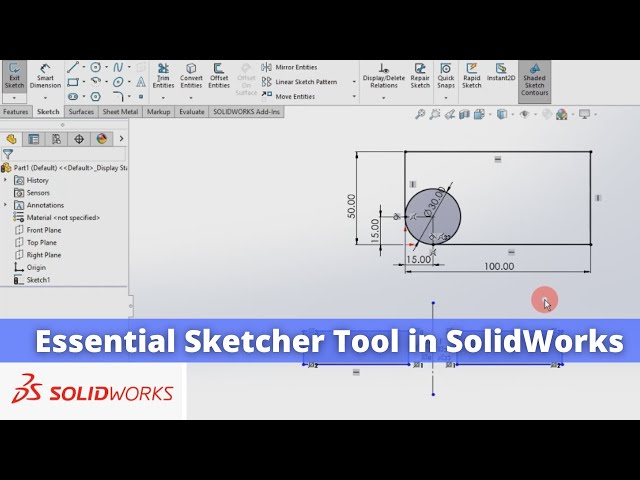

points let's talk about the constraining
8:07
in solid works and how to constrain the
8:10
sketch so in this case uh I will select
8:13
this uh 2 point rectangle options and I
8:17
create a simple rectangle now here if
8:22
you see that uh these two lines are
8:26
black horizontal and vertical and these
8:29
two lines are the blue because this is a
8:33
fix means it is fully defined but this
8:35
one is not defined so if you select the
8:38
line and click on the smart
8:43
Dimension then we
8:45
will give the dimensions so here my
8:48
Dimension are in a inch so I will go
8:51
here and select the
8:54
millimet and I will select my sketch and
8:57
click on the edit sketch
9:00
and here I will give my horizontal
9:02
Dimension
9:03
100 and I will give my vertical
9:06
Dimension 50 so select on a smart
9:10
Dimension and give it a
9:16
50 click on the
9:18
okay
9:20
now if you see this rectangle this is a
9:23
fully defined and its color got Chang
9:27
into the black
9:30
now you will also see the constraining
9:33
symbol this means these two lines on the
9:36
horizontal and these two lines are the
9:38
verticals and let's create one
9:46
circle like this and apply the tangency
9:51
relation let's move it now select this
9:56
line and this circle by pressing the
9:58
control key key then here you will see
10:01
the possible constraint options so here
10:04
I will select the tangent so you can see
10:07
that a tangent symbol is inserted here
10:11
similarly I will select this circle and
10:15
this line horizontal by pressing the
10:18
control key and we will apply the
10:20
tangent so now we have both the tangent
10:23
options showing here now but this circle
10:28
is a still still blue because we have
10:30
not defined the diameter so we will
10:33
select the smart dimensions and give the
10:37
diameter of 30
10:42
mm so this is how we have a created one
10:45
circle inside of this
10:49
now
10:52
let's see some other constraining
10:54
options
10:59
let's
11:01
now
11:05
create create one slot inside of
11:10
this so select the slot and here you
11:13
will see the multiple options of the
11:15
slots so we will create one
11:22
slot so here this line is a horizontal
11:30
and
11:31
let's delete this horizontal
11:35
constraint select the constrain and
11:38
select on delete so horizontal
11:40
constraint is
11:44
removed
11:45
now if we select on a slot and click on
11:49
display delete
11:52
relations then select all in this sketch
11:56
then you will see the all con strain
11:59
given to this
12:02
slot
12:04
so this is how you
12:07
can see
12:09
the
12:11
constraint given to the particular
12:14
entities for example if I select on this
12:16
circle and click on the display delete
12:19
relationship so you can see that this
12:22
circle having the three constraint
12:24
relations two tangent and one diameter
12:29
if I click on delete all then all the
12:32
constraint of this circle get
12:37
deleted
12:39
now let's see the trim options if we
12:43
expand it and we will click on the trim
12:46
entities then you will have the multiple
12:49
options of trimming like uh power trim
12:54
power trim is work like that once you
12:56
click on it you just
12:59
draw your mouse it will be get
13:03
trimmed let's contrl Zed again click on
13:07
the trim entities and Corner
13:10
trim for the corner trim we will select
13:14
line
13:15
tool draw one horizontal line and draw
13:20
one vertical
13:23
line and we will click on the trim
13:26
entities and we will select the corner
13:28
trim
13:29
select this line and this line so this
13:32
will be get trim and
13:38
joined
13:41
now we will delete this we will again go
13:45
with a trim
13:48
options and here we have a trim inside
13:52
and trim
13:54
outside if you have a two lines
13:57
verticals and you have draw the multiple
13:59
horizontal line then you can use these
14:02
two options and best option in a trim is
14:05
a trim to
14:06
closest if you select on it then you can
14:10
select the line which you want to trim
14:14
for example I want to trim this
14:16
horizontal line but not vertical then I
14:18
can directly trim it if I want to trim
14:21
vertical as well I can trim
14:26
it now you can see that once we have
14:29
deleted this two horizontal and vertical
14:32
line with trim options our sketch got
14:35
unconstrained because it does not have
14:38
the dimensional relation with our origin
14:41
so we will select this two Circle point
14:44
and origin point and click on the smart
14:47
Dimension or select this two and give
14:50
the dimension 15
14:53
horizontally and select origin point and
14:57
the circle points and give the
14:59
vertical
15:02
Dimensions so you can see
15:06
that this circle and this two lines are
15:08
the fully constrained we will also
15:10
provide the relation with this top
15:12
horizontal line with the origin which is
15:15
a 50
15:16
mm click on okay similarly we will also
15:20
provide this horizontal dimension of 100
15:24
mm so our sketch is fully constrained
15:30
now we have a convert entities options
15:35
which we will learn when we will do the
15:37
part modeling and here is a one more
15:40
tool which is offset tool for
15:47
example if I select
15:50
this if I draw a simple
15:53
rectangle to understand the offset tool
15:59
now our rectangle is selected and if you
16:02
click on the offset then you will have
16:06
the dimensions to Define your offset for
16:10
example I wanted to offset my rectangle
16:13
by 5
16:14
mm so you can see that uh a 5mm offset
16:18
rectangle is
16:22
created let's delete it and see other
16:26
options in offset
16:29
we will again select all rectangle means
16:33
horizontal and vertical line and
16:35
click click on the offset and here you
16:38
can reverse the directions so now if you
16:41
see that uh arrow is pointing outside if
16:45
I click on the reverse it will point to
16:48
the inside which means that uh this
16:51
rectangle will be offset by 5 mm
16:57
inside let's delete
17:01
it and now this uh mirror
17:05
entities that uh as you can see in this
17:09
image that uh you can draw a center line
17:13
and you can mirror it with respect to
17:15
the center line created let's see with
17:18
an
17:19
example
17:21
I create a
17:26
line and I make it a construction
17:31
and
17:33
I click on the rectangle here and I
17:36
create a rectangle and now I will select
17:40
this rectangle and click on the mirror
17:44
entities so here is a mirror about
17:47
options click on it and select this
17:51
line and click on okay so you can see
17:54
that uh we have mirror rectangle with
17:58
respect to this center
18:01
lines so this is all about essential
18:06
sketching tool in solid works we will go
18:10
much more in a depth when we will do the
18:12
part sketching in solid works thank you
18:16
for watching and thank you for your
18:18
valuable time
