0:00

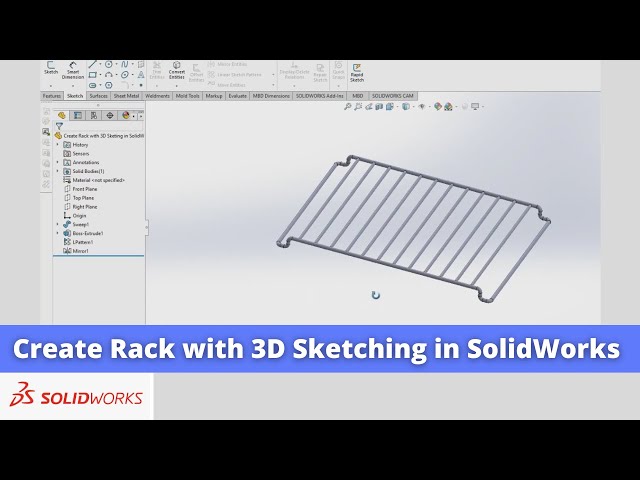

Hello friends welcome to Solid Works
0:02
tutorial and in this tutorial we will
0:04
learn how to create a rack with the help
0:07
of a 3D sketching in the fundamental of
0:10
a 3D sketching we have learned the basic
0:12
concept of a 3D sketch and now we will
0:16
create a rack with 3D sketching in solid
0:19
works as you can see that I have already
0:21
modeled it and I will close this file
0:25
and I will show you from the scratch how
0:31
so here I have created a new file and I
0:35
will simply go to the 3D sketch and I
0:38
will click on line once I click on the
0:41
line you can see that UCS has been
0:44
activated so first press Ctrl 7 to place
0:48
in isometric position of your UCS and
0:51
now click on the origin point and you
0:56
can see that uh once I move my line
1:03
imaginary lines around my
1:06
line and here I will create a
1:12
line and then you can see the UC so you
1:17
can compare with our uh Triad here so it
1:21
is in a y directions now I will move it
1:26
y and I will move in this directions you
1:31
can pressing the Tab Key you can uh
1:34
change the your UCS position you can see
1:41
changing now I will create a a line and
1:45
then now I want to draw in a z
1:49
directions as per my UCS but it is not
1:53
moving so press the T key
2:04
now I want in this directions so press
2:11
key then I want it now y
2:14
directions and then in a minus X
2:20
Direction so this is how we have created
2:22
the 3D sketch and now we will constrain
2:25
it so press the control 7 click on SP
2:30
Dimensions select this line and give
2:32
this line dimension of
2:35
135 and select this line and give the
2:38
dimension of a 15 select this line and
2:42
give the dimension of a
2:45
15 select this line and give the
2:51
240 and here we can use the equal
2:56
well or we can give the dimension but I
2:59
will prefer to to give the
3:01
dimension 15 and this one also
3:13
135 as we are going to create a rag with
3:16
the pipe so here is the sharp Corners so
3:19
we will give the fillet for this we will
3:22
select the fillet and give the size of 5
3:25
mm and select these two lines this line
3:28
and this line this one and this
3:36
this this and this one click on
3:43
okay now we will come out of the
3:46
sketch and uh click on the right plane
3:52
sketch and here we will create a
3:58
circle and we will give the dimension of
4:06
5mm now we will click on close sketch
4:10
icon press the control 7 now we have the
4:14
path and we have the profile so we will
4:17
go to the Futures Tab and click on
4:19
accept boss base and profile option we
4:23
will select our profile and in path we
4:26
will select this line
4:33
okay so you can see that we have uh
4:40
path now we select our front plane and
4:44
click on the sketch and we will make our
4:48
normal and now we will create a
4:56
circle of diameter 4 so we will give it
5:07
origin I will give the 11
5:12
mm and now I select the origin point and
5:16
our Circle point and give the horizontal
5:19
relation and I will come out of the
5:23
sketch and next feature is to extrude
5:28
the profile which we have I have created
5:31
extrude and click on this Arrow to
5:35
reverse the directions and here select
5:40
surface select this surface and click on
5:44
okay so we have connected this two
5:48
surface with the help of a
5:50
pipe now Under The View option on the
5:54
temporary AIS so once I on the temporary
5:58
AIS I can see the temporary
6:00
access of my round feature now we will
6:07
pattern and here in the direction I will
6:12
AIS and the distance I will give the
6:17
22 and number of quantity I want
6:23
six and here I will select the my
6:26
feature which I wanted to pattern so
7:14
now I will pattern this body for this I
7:17
will go to the view option and on the
7:19
temporary access so you can see that
7:22
temporary access are the
7:25
visible now I will go to the linear
7:31
and here in the directions I will select
7:34
AIS and distance I want
7:38
22 and number of instances I want
7:45
now I will select the feature I will go
7:49
to the my browser tree and click on this
7:53
boss and here you can see that in
7:57
preview now I will say okay
8:01
okay now I will off the temporary
8:09
access we have made the half portion of
8:12
our rack so we will mirror it so we will
8:15
go to the mirror options and mirror face
8:22
plane I will select this right
8:25
plane and features to mirror
8:37
select all this three feature which we
8:40
have created and click on okay so it got
8:44
mirror on the other sides so this is how
8:50
made the rack with the help of a 3D
8:54
sketching in solid works so this is all
8:57
about this tutorial how to to create 3D
9:03
sketch so this is how we have made the
9:06
Rack in solid works with the help of a
9:08
3D sketching this is all about this
9:11
tutorial thank you for watching and
9:13
thank you for your valuable time
