Hello friends welcome to Solid Works
0:01
tutorial and in this tutorial we will
0:03
learn 3D sketching with a plane as you
0:07

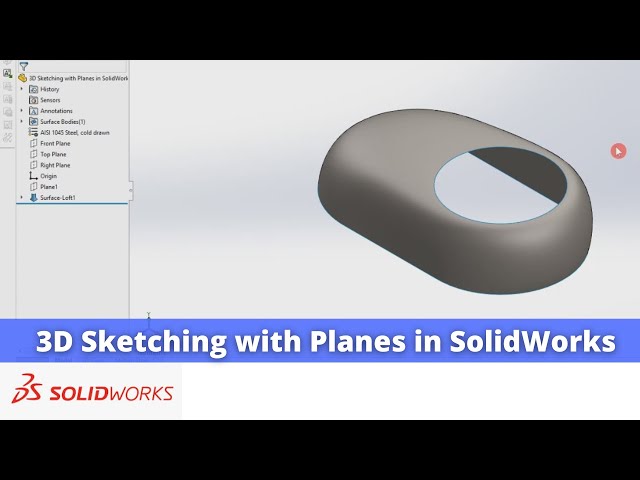

can see that I have created a Surface
0:09
body with the help of uh 3D sketching
0:12
and plane and I will show you from the
0:15
scratch how you can create such type of
0:17
a body in solid works so I will close
0:19
this file and I will create a new file
0:21
and I will show you from the scratch you
0:24
can also visit my website macn nexus.com
0:27
and you can visit the this solid works
0:31
tutorials tab where I have written so
0:34
many tutorials on solid works where you
0:38
can follow the stepbystep guide to model
0:42
parts if you like my method of teaching
0:45
then you can also support me on kofi.com
0:48
you can buy me a cup of coffee your
0:52
small support will help these channels
0:54
to grow and it will motivate me to
0:57
create more awesome content on solid
1:00
works so let's come back to our
1:05
tutorial so here I have created a new
1:07
file and I will select this top plane
1:21
rectangle and I will uh
1:32
and I will click on the
1:44
and so here I have a created a new file
1:46
and I will select the Top Lane and click
1:50
sketch and uh I will select the twoo
1:58
rectangle and now now I will uh select
2:15
uh construction and now I will select it
2:22
coincidence vertical line and similarly
2:25
I will make it coincidence
2:30
and now I will also make this two line
2:44
dimension so this to this is uh
2:50
75 and uh I will give
2:55
this half which is already symmetric
3:14
100 now I will uh select a
3:22
now click on the trim entities trim to
3:30
Tri it similarly I will select the
3:33
circle and create the circle and trim
3:38
the unnecessary geometry trim to
3:45
it and our sketch is fully
3:49
constrained now I will close my sketch
3:53
and press the control 7 for isometric
3:55
view now I will select the top plane go
3:58
to the reference ometry and click on the
4:01
plane and here I will create a plane at
4:10
okay now on this plane I will create a
4:17
sketch I will go to the top
4:21
view I will select the
4:24
circle and create a circle and give it a
4:35
and now here I will also draw the
4:41
line I will draw one more
4:47
line and I will select this two line and
4:54
construction and now I will come out of
4:56
the sketch press crl 7
5:08
uh again go to the our first
5:15
sketch click on the top view and we will
5:18
extend this construction
5:20
line on the both the side or similarly
5:24
we can uh instead of drawing a line we
5:27
can click on extend entities
5:39
now we will create a 3D sketch now so we
5:51
sketch click on the 3D
5:54
sketch and here we will select the Spy
5:58
line we we will select this point and
6:03
point and am out of it now we will
6:07
select this line and this line and make
6:14
tangent and we will create a straight
6:24
line and we will make it
6:28
construction and we will select this one
6:30
and this one and add the tangent
6:36
relation so you can see that uh we have
6:40
uh constrain it with respect to this
6:48
line now same way we will create here so
6:52
here first we will create a
6:57
line and we will make it
7:01
construction and we will select this
7:04
line and this line and make it
7:08
perpendicular now again select the Spy
7:15
point and right click click on the
7:18
select now select this one and this one
7:26
tangent select this one and this one and
7:32
tangent now we will again create a one
7:35
line which will be perpendicular to this
7:46
construction now select the Spy line
7:49
join this point and this point and right
7:56
select now select this one and this one
8:01
tangent say Okay similarly this one and
8:10
tangent now we will come out of the
8:15
sketch now we will create a lofted
8:18
surface where we will connect this
8:21
profile top and bottom and these three
8:25
spy lines which we have created will be
8:30
so for this go to the surface toolbar if
8:32
it is not then go to the tabs and click
8:36
on the surface to activate it click on
8:40
surface and here we will select this
8:42
profile and this bottom one so you can
8:46
see that this two profiles are the
8:48
connected but we will guide this two
8:50
profile on this guided curve so we will
8:53
select on guided curve
8:56
select this guided curve and click on
9:00
okay select this and click on
9:03
okay and click the third one and click
9:08
okay so you can see that these two
9:11
profile top and bottom are connected
9:13
with this three guided curve click on
9:18
okay so you can see that uh we have
9:20
created very beautiful surface with the
9:23
help of a 3D sketch and plane so this is
9:26
all about this tutorial how to use 3D
9:29
sketch and plane to create the surface
