1 Orifice Plate with 3 Flow Transmitters | Instrumentation basics

0:00

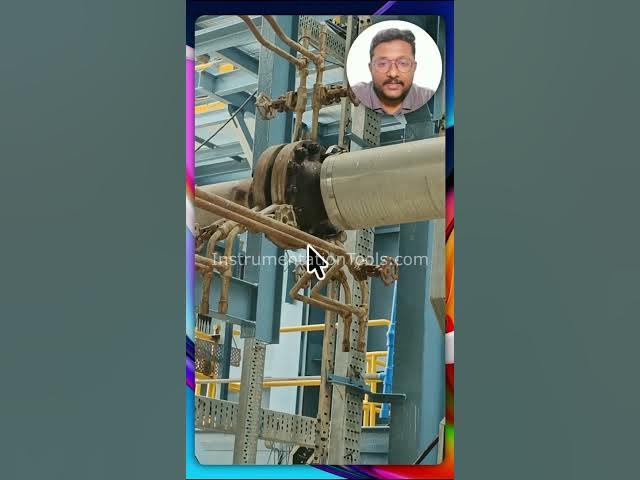

If you see here, this is a orifice
0:02
plate. We are measuring the flow using
0:06
orifice by creating differential
0:09
pressure and then using impulse lines
0:13
for measuring this DP. This is the basic
0:16
principle of a RFI based flow
0:19
transmitter. These are the flow
0:21
transmitters installed here at the
0:24
bottom.
0:25
This is the back side. You can see these
0:28
are the impulse lines coming from the
0:30
RFI plate and to the transmitter.
0:34
We have three different flow
0:37
transmitters installed here on this
0:40
single Rifice plate. Generally we use
0:44
three flow transmitters uh when we have
0:47
two out of three voting system such that
0:51
these three flow transmitters measure
0:55
the same flow rate and based on the two
0:59
outputs we will activate the interlock.
1:02
You can see the Rifi plate clearly here.
1:06
On the top we have one tapping point
1:09
set. That means one HP tapping point and
1:13
one LP tapping point. At the same time
1:16
at the bottom at both sides on the left
1:20
side and on the right side we have again
1:23
two different tapping point sets. Each
1:26
tapping point have one isolation valve
1:29
is provided so that if you want to do
1:31
any maintenance. You can isolate the
1:35
impulse line here. There is no need to
1:37
disturb other two flow transmitters. In
1:41
this case we have three tapping point
1:43
sets. That means complete six tapping
1:45
points means per each transmitter we
1:48
have one HP tapping point and one LP
1:51
tapping point.
1:54
Each transmitter measures the same flow
1:56
rate because uh each of these flow
2:00
transmitters receives the same DP
2:03
differential pressure created by the
2:06
orifice plate.
2:08
Let me know where you are using this
2:11
type of setup in your industry. Comment
2:14
now if you have any questions share with
2:17
us through the comment section.
2:21
Thank you. I will meet you in the next
2:23
video.
2:27
