hello friends welcome to free cat tutorial and this tutorial is about mirror
0:05
tool and in this tutorial we will learn importance of order of the features while
0:13
using the mirror tool when using the mirror tool in a free cat then selections
0:19
of features is very important so we will see in this tutorial you can also visit
0:28
my website macnexus.com where I write articles and tutorials on free cad you
0:34
can download my tutorial source file from here tutorial source file page and
0:40
you can also support me by buying a cup of coffee on coffee.com your small
0:49
support will help these channels to grow and it will motivate me to create more
0:54
awesome content on free cad i thanks to all my supporter those who have supported me by buying
1:02
a cup of coffee so keep supporting and it will help me to grow this channel and it will motivate
1:12
me to create more awesome and useful tutorials on free cad so let's come back to our tutorial
1:19
and this is the free CAD 1.0 RC 2 release and if you have not switched to the free CAD version 1.0
1:32
then switch it because it has so many good features for sketching part modeling etc so if you
1:44
are using the windows then I have already made a videos on my channel when
1:51
the free CAD 1.0 is out you can check this video how you can run free get 1.0
2:00
on windows and if we are using the Mac Linux then search for the suitable
2:07
tutorial on YouTube how you can run it so let's start our tutorial so here in
2:15
this part if you see here this is the a simple box and here are the two flat
2:24
faces with a hole and we want to mirror these two on this other side on this
2:35
face so let's do it so first let's select this feature and this feature and
2:46
click on the mirror and here I will select reference and select mirror tool
2:54
and click on ok so here first you have to activate the body here which I have
3:02
already activated so now if you see here we have did the mirror without any error
3:09
the problem is that the this hole is not transformed here the reason behind it most people do and they get stuck in that I have added the mirror but why this features or some other features not got mirror so there is a
3:31

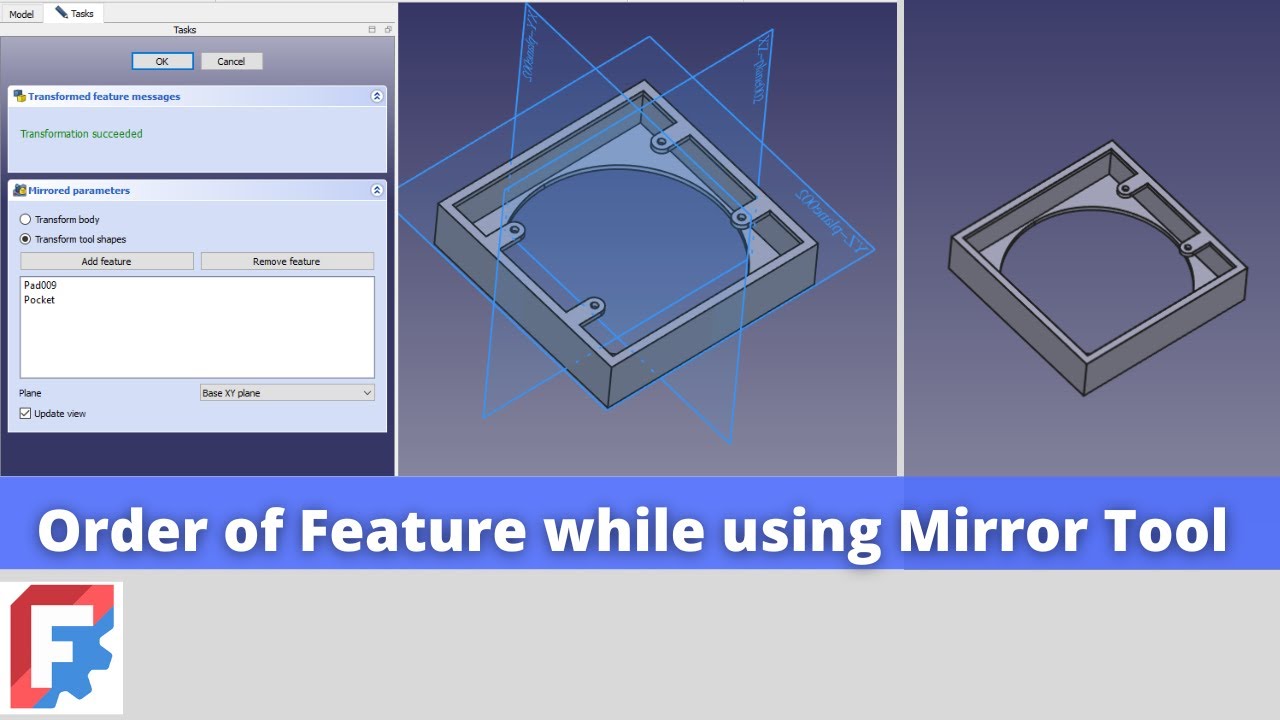

problem in your selections so if we edit our mirror features so we can see that
3:40
we have first selected the pocket and then selected the pad which means that
3:48
this pad is got overlapped on this pocket which means that hole is here
3:55
already but we have selected the wrong order so there are the two ways to fix
4:05
it first is that when selecting the features then select the features from
4:15
top to down here what I have a date is I selected this pocket and by pressing the
4:26
control key and then I selected the pad that's why it happens when I did the
4:34
mirror and here so this is the wrong order of the selections now we will do
4:45
the right order of the selections so first we will select this pad and then
4:51
this pocket and click on the mirror and select the reference and select the mirror now it is a perfect now this is the one way to fix it but let see our
5:09
previous example where we have a selected this pocket first and in this
5:13
pad and click on the mirror and select the reference and click on ok so now
5:24
without deleting this mirror we can fix it what we have to do is go to the edit
5:31
mirror and here we will select and drop down so we have a reorder here we have selected the pad
5:47
and place above the pocket which means that here we are adding the material and with the pocket we
5:53
are removing the material and now our mirror is got fixed so this is the very
6:00
small tips where most of the beginner get confused they have a did the mirror
6:06
but feature is not reflecting so this is the very small tips and importance of
6:14
order of a selections while using the mirror tool in freecat I hope you have
6:20
enjoyed this tutorial and you will apply this trick to your modeling of a part so
6:26
this is all about this tutorial thank you for watching and thank you for your
