0:00

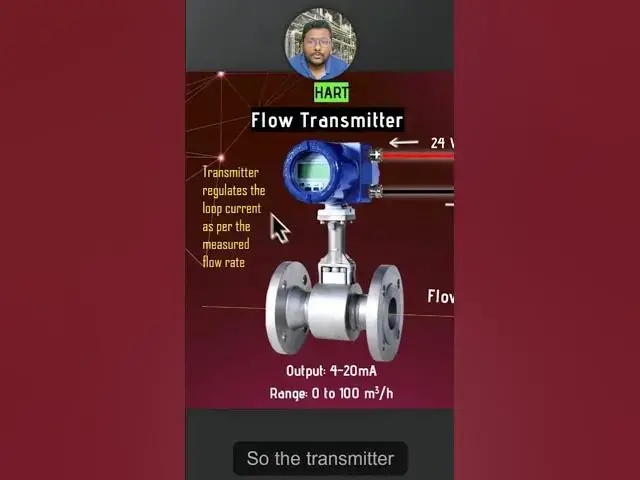

We have a flow transmitter and it is
0:02
heartbased smart flow transmitter. It is
0:06
configured with 0 to 100 m cube per hour
0:10
range. It supports output 4 to 20 millia
0:14
basin signal. We have a DCS system
0:17
distributed control system. Now this DCS
0:21
system is connected with this instrument
0:23
using two wires. This is the positive
0:27
wire and this is the negative. DCS
0:30
provides 24 volts DC power supply to the
0:34
failed instrument. This flow transmitter
0:37
measures the flow in a pipeline. Let's
0:41
say for example the flow is 0 m cube per
0:45
hour. There is no flow at all. So the
0:49
transmitter regulates the loop current
0:52
accordingly as per the measured flow
0:56
rate. What is the signal range? 4 to 20
0:59
milliamp signal. The four represents
1:02
lower range value. The 20 represents
1:06
upper range value. Right now the flow is
1:09
zero. Then this flow transmitter
1:12
regulates the loop current to the 4
1:17
See the flow transmitter sending 4
1:22
The DCS measures this loop current and
1:26
then displays to the operator. So on the
1:30
operator computer it is displaying 0 m
1:32
cube per hour. So this is the basic
1:35
concept for a 4 to 20 millia based
1:39
instrument which is configured in a DCS
1:43
system. Let's say the flow increased to
1:47
25 m cube per hour. Again the
1:51
transmitter measures this flow rate and
1:55
updates the loop current accordingly.
1:58
Now the transmitter sending 8 miampere
2:02
to the DCS system. The DCS receives this
2:05
8 milliampere and the DCS is already
2:09
configured with the flow transmitter
2:11
details. For example, the transmitter's
2:14
range is 0 to 100 m cube per hour and
2:18
its equivalent signal is 4 to 20
2:20
miampere signal. Accordingly, the DCS
2:24
converts this measured milliampere into
2:26
the equivalent flow rate and then
2:29
displays onto the computer graphics.
2:33
Say the flow is increased to 50 m cube
2:37
per hour. Again transmitter sends 12
2:40
milliampere signal to the DCS system.
2:42
The DCS converts this 12 milliampere
2:45
into equivalent flow rate and displays
2:48
50 m cube per hour in the computer
