Place 16 AutoCAD Columns at Once with YQArch ZZBZ

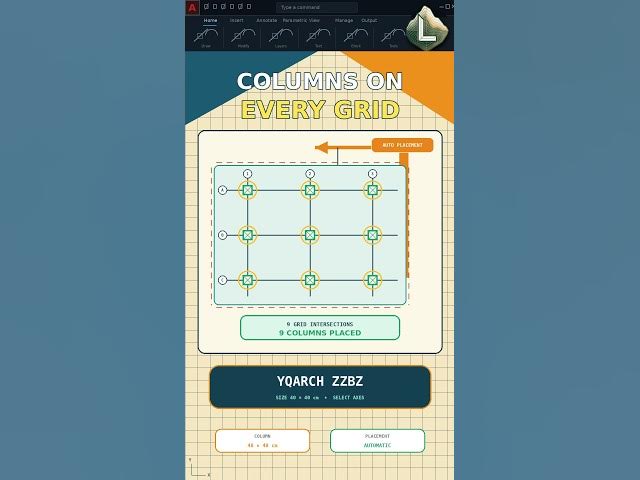

Need to place AutoCAD columns at every grid intersection without inserting them one by one? In this YQArch workflow, the structural grid is first created with the ZXW command using centimeter-based axis spacing. X-axis spacing: 400 cm → 400 cm → 500 cm Y-axis spacing: 300 cm → 300 cm → 600 cm The completed grid is duplicated to compare two column-placement methods. Manual method: Use YQArch ZZR and place a column separately at each grid intersection. Automated method: Use YQArch ZZBZ, apply the required column settings, select all grid axes, and place columns across the complete grid automatically. Grid result: 4 vertical axes 4 horizontal axes 16 intersections 16 columns Command workflow: ZXW → Enter Grid Spacing → Copy the Grid Manual: ZZR → Place Columns One by One Automated: ZZBZ → Set Column Properties → Select All Grid Axes → Enter This is a YQArch plugin workflow, not a native AutoCAD command. The interface, column settings, fill options, and shortcut commands may vary depending on the installed YQArch version and language configuration. YQArch official information and download page: http://yqarch.cn/yqarch.asp This video uses: AutoCAD 2021 Drawing Unit: Centimeters YQArch Plugin Always verify the number of detected intersections, column dimensions, fill state, axis layers, and drawing units before using the result in a structural or architectural project. Subscribe to CAD LAND for practical AutoCAD and YQArch automation workflows. #AutoCAD #YQArch #ZZBZ #AutoCADColumns #StructuralGrid #CADLand
