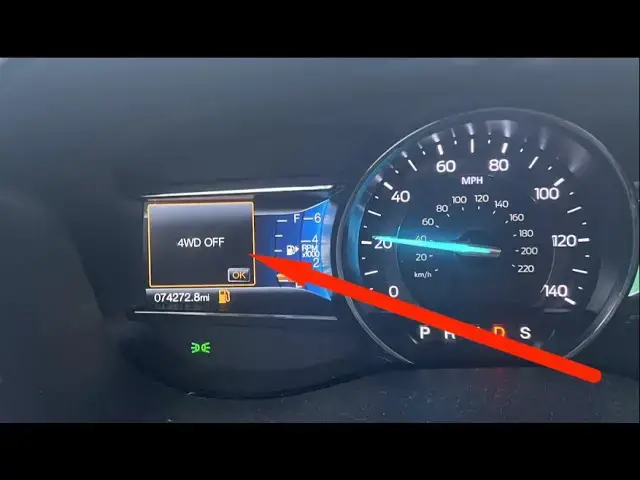

Hey, is your Ford Escape flashing that
0:01
FordWD system off warning on the dash?
0:04
Usually, it's something simple like a
0:06
low battery or a dirty wheel speed
0:08
sensor, and you can troubleshoot it
0:09
yourself at home. Ignoring this could
0:12
mess up your car's drivetrain over time,
0:14
costing you over $1,000 in major repairs
0:16
down the road. Okay, so let's dive right
0:19
in. First thing, grab your car's battery
0:21
tester or multimeter. Most folks have
0:23
one lying around. Check the voltage on
0:25
your vehicle's battery. It should read
0:27
at least 12.6 6 volts when the engine's
0:29
off. If it's lower, that battery is
0:31
probably on its last legs and causing
0:33
the warning during startup checks. Well,
0:36
um, just replace it with a fresh one
0:38
from your local auto parts store. Costs
0:40
about 70 to 100 bucks. That alone fixes
0:42
a ton of these intermittent Ford
0:44
glitches and escapes. All right, then.
0:47
Next, plug in an OBD2 scanner to your
0:49
car's diagnostic port under the dash.
0:51
You know, the one that reads trouble
0:52
codes from your vehicle's computer. If
0:54
you don't have one, grab a basic model.
0:56
links in the description below. Scan for
0:59
codes related to the AWD system or ABS.
1:02
Stuff like wheel speed sensor faults
1:04
show up as C codes often. Honestly, if
1:06
you see something like C003A or similar,
1:10
that's pointing to a rear wheel speed
1:11
sensor issue on your Escape's axle.
1:14
Those sensors monitor how fast each
1:16
wheel spins for traction control and
1:18
all-wheel drive. The thing is, dirt,
1:20
debris, or even a loose wire can throw
1:22
them off. Pop the wheel off safely. Jack
1:25
up your car first and inspect the sensor
1:27
on the hub assembly. Clean it with some
1:29
brake cleaner spray if it's gked up.
1:31
Check the wiring harness for any brakes
1:33
or corrosion, too. A quick visual does
1:35
the trick. If it's damaged, swap in a
1:38
new sensor. They're about $50 and bolt
1:40
right on with basic tools. I mean, while
1:42
you're at it, peek at the fuses in your
1:44
car's fuse box under the hood. Look for
1:47
the one labeled AWD or four-wheel drive.
1:51
A blown fuse can shut the system down
1:53
easy. pull it out, check if it's fried,
1:56
and replace if needed. Super cheap fix.
1:59
For newer Escapes, like 2020 models,
2:01
sometimes it's the AWD module itself
2:04
acting up due to a bad ground
2:06
connection. Anyway, if your scan shows
2:08
module codes, you might add an extra
2:10
ground wire from the module case to the
2:12
chassis, but only if you're comfy with
2:14
wiring. That's a bit more advanced, so
2:17
test everything else first. Okay, so
2:20
after any fix, clear the codes with your
2:22
scanner and take your escape for a short
2:24
drive. The warning should stay off if
2:26
you nailed the problem. If it pops back,
2:29
might be time for a shop to check the
2:30
rear differential or PTU. That's the
2:33
power transfer unit in your car's
2:34
drivetrain. But most times it's not that
2:37
serious. You know, these escapes are
2:39
solid, but little electrical gremlins
2:40
sneak in. Hey, if this helped your Ford
2:43
Escape, give it a thumbs up and
2:45
subscribe to Car Justify for more DIY
2:47
tips. Drop a comment below. What year is
2:50
your escape? Catch you next time.
