PLC Jog Function Safety & Smart Logic Unveiled!

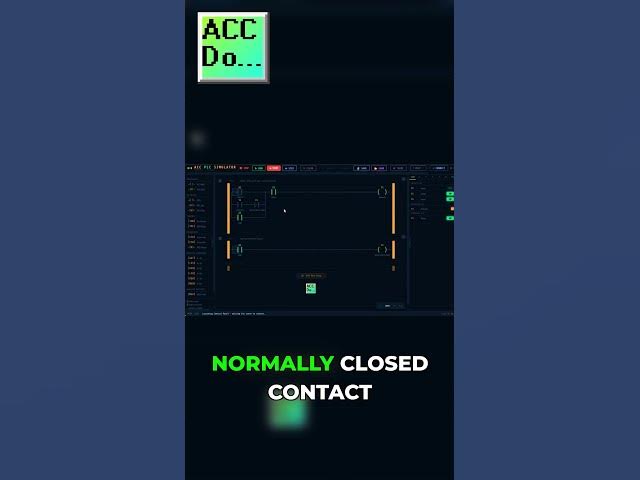

Master jog function safety smart on the PLC. Step-by-step tutorial with real-world examples. This video breaks down how a jog button (X3) works in a PLC circuit, demonstrating its function with clear examples. We look at how pressing the jog button energizes a third branch to start the motor, and how this also affects the C1 contact, blocking the seal-in path. This is a practical example of plc programming and troubleshooting using ladder logic and it will help you understand how a motor starter circuit works. 📖 FULL WRITTEN TUTORIAL + DOWNLOADS https://accautomation.ca/how-to-use-the-acc-plc-simulator-control-panel-scene-tutorial/ ⏱️ TIMESTAMPS 0:00 - Introduction 0:04 - circuit. Whenyou press theblue jog 0:09 - things atonce. In ring0, the third 0:14 - motor runs. But in rung1X3 also 0:20 - Back in rung0, the ceilingbranch has a 0:26 - is true, thatcontact opensthe seal and 0:32 - But the momentyou releaseit, X3 goes 0:39 - Wrap Up 📚 WHAT YOU'LL LEARN ✅ PLC Jog Function Safety & Smart Logic Unveiled! on the PLC ✅ Practical, hands-on approach ✅ Real-world tips from manufacturing experience
