UML - OOA the noun phrase approach

object-oriented analysis the noun phrase

approach it would be a very interesting

topic so let's let us discuss this one

with further detailing the developers

having less exposure with the

application domain can make use of these

three-stage process to extract candidate

classes so it is a very vital question

for the freshers for the developers who

are not having a good exposure on a

certain domain in the application in

which they the domain in which the

application is going to get developed

that how to get the classes at what are

the classes are to be there and what

will be their respective methods and

attributes are to be included in a

certain class so that's why this

candidate classes how to get this

candidate classes is a big questions for

certain developers so first one is that

so here we are having three stage

approach the first one concise problem

definition so define the product as

briefly and concisely as possible that

means we should define the software

product or the software problem whatever

it is the problem statement should be

very much concise and must be given

briefly and preferably in a single

statement if it is possible next one

informal strategy the constraints

specified informally must be taken into

account so what are the different

constraints we have mentioned informally

that should be taken into our account

formalize the strategy that is identify

the nouns in the informal strategy

exclude those that lie outside the

problem boundary so here we are

considering the nouns and those nouns

which are outside of the problem

boundary should be excluded of the

requirement gathering is added and

formalized to identify that candidate

classes if this conception is not

cleared up to this particular discussion

so let us proceed more the guidelines

for selecting tentative classes in the

given application are

such four nouns pronouns and noun

phrases in the use cases so that is the

search for nouns pronouns and noun

phrases in the use cases so what are the

use case use concern nothing but the

functional recommend in the software in

the system nouns and noun phrases become

the objects and attributes verbs and

phrases become the operations and

associations positive phrases indicate

that noun should be attribute rather

than the objects so these are the

respective herschel cell formalities you

should maintain that is a nouns and noun

phrases become the objects and

attributes attributes of the class

attributes of the object and then pause

and power phrases become the operations

and associations operations means

methods and associations and this

positive phrases indicate that noun

should be attributes rather than the

objects so some classes are either

implicit or taken from general knowledge

all classes must make sense in the

application domain and avert computed

implementation classes and delayed them

to the design stage so that means it

indicates that we should explain we

should gather all these classes all this

candidate classes in such a way that

there should not be any redundancy and

it should cover all the aspects of our

design carefully choose and define class

names this class names and class name

and nomenclature should be done very

precisely and carefully so that from the

name event we should get the idea of

what is the purpose of the class so this

is the way to have our methods how to

have our attributes in the class to have

our class names and the respective

association between classes the

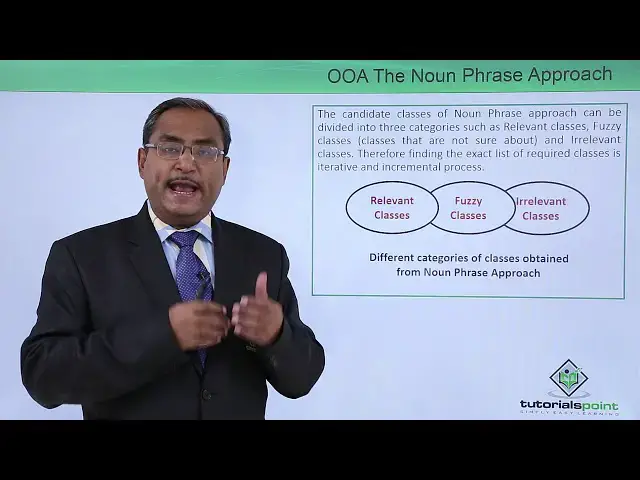

candidate classes of noun phrase

approach can be divided into three

categories such as really

classes Fuzzy's classes that is the

classes that are not sure about and the

Idul event classes that means they can

be excluded and they can be deleted from

the system therefore finding the exact

list of required classes is iterative

and incremental process so it is

iterative means inclusion of this

classes will be iterative where we are

going to revise and we are going to

retune our problem statement again and

again so that we should read our problem

statement we should read our problem

definition again and again so that these

classes whether it should be treated as

a relevant class or say fuzzy class or

irrelevant class so they are to be

categorized in a suitable way so that we

are going to make our system ready with

the relevant classes only and those

classes should have a proper name so

that from the class name event that

nomenclature should be done in such

interesting way that from the class name

event you can get the purpose of the

class so in case of redundant classes

what you should do the classes which

express the some information same

information must be avoided use the same

words to define class that is being used

by the user of the system that means

whenever you are finding that some

classes are there which are having the

same kind of functionalities so those

classes are to be are to be eliminated

adjectives classes the classes which

behave differently when the object is

represented by the noun and bewbs

differently when the adjectives are

applied to it so they are known as the

adjectives classes so let me repeat the

definition once again for your better

understanding the classes which behave

differently when the object is

represented by the noun and behaves

differently when the adjectives applied

to it that means whenever we are having

this adjective classes so whenever it is

differently behaving when it will be

treated as a noun and BA

currently when the adjectives are

applied to it I think for the better

understanding will be going for the case

studies which are there in our in the

last portion of our tutorial we're

having multiple case studies where we

have discussed and there we have used

this noun phrase filtering and how to

get the classes out of them we have

discussed that one with a real-life case

study there

please watch those videos also to have a

grip over this concept attribute classes

means the noun phrase that is the client

status is not separate class but it is

an attribute of the client class so it

indicates that let us suppose that is

one noun phrase as an example we are

having this client status so against the

client status we cannot create in a

separate class we should not create in a

separate class it will be the attribute

of a class so that is known as the

attribute classes so here we are having

this adjective classes we're having this

redundant classes so we have defined the

definition of three classes we're having

this now going for the EDL event classes

the class that is not having any purpose

is known as irrelevant class and for

each candidate class the statement of

purpose must be clearly defined and if

it is not possible eliminate the

candidate class so that means for the

relevant classes that means which are

not very much linked to this with the

system some nouns you might be finding

in the problem statement which are not

very much related to the system so those

those particular classes should not be

formed because they are the irrelevant

classes weight classes the classes that

are out of scope within the boundaries

of the problem statement are known as

the weight classes so that means we are

having some nouns where this nouns are

not related with the problem and they

are outside of the boundaries of the of

the domain so that those classes are not

to be are not to be constructed because

they are known as the vague classes so

relevant classes were having we're

having fuzzy classes and we are having

EDD living classes so now let us go for

this diagram for the baited

understanding so problem statement which

will be consisting of set of

requirements first set of candy

classes are to be formed review

irrelevant classes and review redundant

classes and then review attributes and

then review adjectives so in this way we

are going to have the identifying the

classes using noun phrase approach so in

this diagram we have shown you that what

are the different steps for this non

phrase approach so now a simplified

steps non phrase approach can also be

also be shown using this diagram that is

a requirement statement so exact nouns

we are going to found find and then

tentative object classes and exact nouns

will produce the object classes from

this respective noun phrase approach so

in this particular session we have

discussed that how to form classes how

to get the methods in a classes how to

get the attributes in a classes and

water to be eliminated what are to be

combined and water to be treated as a

outside of the boundary of the domain on

which we are making our system ready so

they are not to be considered so in this

way we are going to get our primary

classes the respective attributes and

that respective methods and operations

so it is a very tricky one and obviously

going through the case study only you

can explain it further so please work

please watch all the case studies

whatever have been discussed in this

tutorial thanks for watching this video
