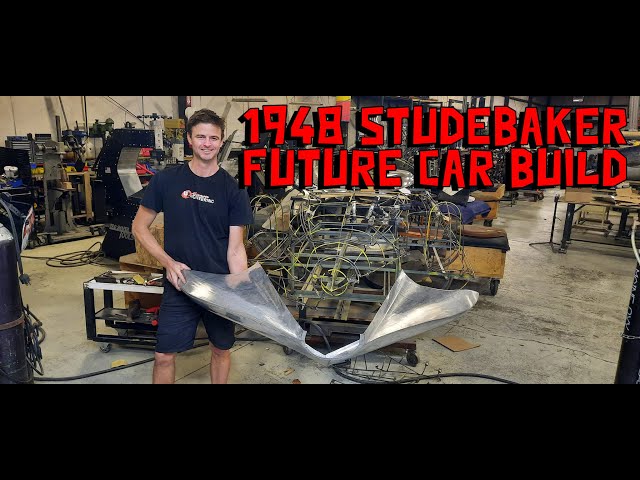

1948 Studebaker Future Car Build
Andrew from New Zealand has been at the shop for 3 weeks and has been working on the 1948 Studebaker Future Car designed by Virgil Exner. Andrew worked on the front nose section using aluminum. He made 4 panels and then TIG welded the section together. When he finished welding, he planished the weld using a slapper and dolly.
Show More Show Less View Video Transcript
0:00
hi it's Ray from Pro Schaefer workshop
0:02
and we haven't been on for a while but
0:05
we're back at least for this video we've
0:08
been really busy so we built this 48
0:12
Studebaker Future car designed by Virgil
0:16
exner now you say who's a Virgil
0:18
accident Virgil accident was responsible
0:21
for all the Chrysler gear show cars gear
0:25
built them Virgil Exeter and his team of
0:27
designers designed them they made dozens
0:30
of them that's a Virgil designed this in
0:33
1948 and it was uh first unveiled the
0:37
drawing which is only a I think a
0:40
left-hand three-quarter side front view
0:43
at the uh Academy of Automotive
0:47
Engineers meeting in 1948. so I had seen
0:52
this picture on Facebook and I said oh
0:55
my God that's so great we've got to make
0:57
it so I think it was about four years
0:59
ago so we did the full-scale drawings
1:02
with our drawing board with the the
1:05
adjustable magnet system and the drawing
1:09
is very rudimentary there's no facility
1:12
for the wheels the front wheels the turn
1:14
or anything it's just a concept drawing
1:17
not a build drawing of any type so I had
1:21
to scale it and there was no design for
1:25
the rear of the body so I had to design
1:26
the rear of the of the body well we'll
1:29
give you a little peek of that too
1:32
a lot of people don't understand why
1:35
wire versus the Wood Station Buck if you
1:37
go in any of the forums you're going to
1:39
see Wood Station Buck Wood Station Buck
1:41
Wood Station Buck which are easy to make
1:44
but super difficult to work with and
1:47
once you work with the wire form you
1:49
will see the advantages of working with
1:52
the wire form so
1:54
this year
1:56
uh I decided that we're going to put
1:58
this car on the front burner for the
2:02
students I'm going to let the students
2:04
build it all we have built over the last
2:06
couple years almost the whole surface of
2:09
this car using 20 gauge steel panels and
2:14
now I decided that well I don't want a
2:16
steel body and I was using those only as
2:19
learning exercises for the students
2:21
never never to actually be put together
2:23
or anything if I said uh we've got to go
2:26
with aluminum body on it I trust the
2:28
students enough now to use the aluminum
2:30
and if they make a mistake I've learned
2:33
through the years that I can correct
2:35
these mistakes or show them the students
2:37
how to correct the mistakes which is a
2:39
great lesson in itself how to fix
2:42
mistakes because you always make a lot
2:45
of mistakes so this is Andrew from
2:49
actually born in Canada but as I think a
2:53
two-year-old you moved to two-year-old
2:55
he moved to New Zealand and he lives in
2:58
Nelson New Zealand a town in the
3:01
southern island you said I think yeah
3:02
southern island it's about uh we looked
3:05
it up as like 53 000 people live in
3:07
Nelson I had never heard of Nelson
3:09
before but a lot of New Zealand to see
3:13
greater Economic Opportunity in
3:16
Australia and I didn't know you don't
3:18
need a work permit or anything if you're
3:20
a New Zealander you can go to work in
3:21
Australia and vice versa so he found a
3:25
job 20 years ago yeah 10 years ago in in
3:29
Perth and working in the mining industry
3:33
and prior to that you had done a lot of
3:34
welding in New Zealand yeah yeah so he's
3:37
got about 20 years of welding and
3:39
fabricating under his belt now
3:40
fabricating means taking thicker pieces
3:43
of metal and they've stick welded them
3:45
together and Mig welded them together
3:46
but actual sheet metal Automotive sheet
3:50
metal very little on none right yeah and
3:53
you do have a little English wheel
3:55
similar to like a Harbor Freight English
3:57
wheel yeah for a short period yeah and
3:59
you played around with it you really
4:01
didn't understand it yeah I was kind of
4:03
going backwards a bit and yeah making a
4:05
lot of mistakes so he's done really well
4:08
in the uh the mining industry and he's
4:10
moving back to New Zealand and he's
4:12
looking to see what he's going to do
4:13
with his future he's only what 36 you
4:15
said 35 35 and
4:18
um he's got a brother that's actually a
4:20
star on Tick Tock who uh Kenny Kenny
4:24
Patton what's the name he goes on
4:27
patent machines okay yeah if you want to
4:30
look at his brother's videos he does
4:32
these eccentric videos using two-cycle
4:35
gas engines and uh so Andrew was um
4:40
intrigued with what the potential was
4:42
with working with the English wheel
4:44
and he thought it would be a good thing
4:47
to do is come over to the U.S and and
4:49
take a class from me and I asked him if
4:53
he would be interested in working on the
4:55
Studebaker because I want to get
4:57
something done on it now I had another
5:00
student make
5:01
this panel that's going to go right in
5:04
here as you see there's no wire form
5:06
right there because you can you lift
5:09
that up
5:10
we Andrew has made these panels
5:14
and this is my system that I developed
5:16
where you can make these joints for the
5:18
wire form and they bolt right together
5:21
so this was all welded together but when
5:25
you make the panels and you want to take
5:27
the panel off it's impossible because
5:29
it's mechanically locked on with flanges
5:31
so the only way you can do it is destroy
5:35
the wire form but if you use these
5:37
little joints which are simple little
5:39
you know we weld up a couple Square nuts
5:42
and we get the threads that way so we
5:44
don't have to thread anything then we
5:45
got a little piece of Steel here with
5:47
two holes and it joins with its its
5:50
brother over here you put a quarter
5:52
twenty bolt in it and boom the whole
5:54
thing goes right back perfectly and that
5:56
allows you by removing that you can take
5:59
off the panel that he made Andrew was
6:03
faced when he first came here with this
6:05
panel was already done by another
6:06
student and the panel below it was done
6:09
by another student but this one was it
6:13
really needed to be remade so he had to
6:15
remake that one he had to make this one
6:17
and this one and the one that was below
6:20
here he pretty much had to redo the
6:22
thing to get it totally symmetrical and
6:26
uh good quality on the surface
6:29
I said here's what Andrew did and it's
6:32
as good as it gets this is world-class
6:34
quality some of the best shape is in the
6:37
world would struggle on this panel now
6:40
it's taken Andrew a lot of time it's
6:42
been what about two or three weeks
6:43
you've been here three weeks and uh
6:47
he made a few mistakes but
6:50
not that many and he learned how to
6:52
correct them and he's a real
6:55
perfectionist and he's an excellent TIG
6:58
welder so he hadn't done much aluminum
7:00
welding at all prior to this but he
7:03
picked it up real quick
7:05
and he's got this all welded together
7:07
there's a little bit of planishing to be
7:10
done this was welded last night and this
7:13
still needs to be planished I don't
7:14
think you'll be able to finish it today
7:16
he's leaving tomorrow this is the last
7:18
day here so let's put this on and we'll
7:21
show you what it looks like ta-da
7:23
[Music]
7:25
is that cool now have you ever seen a
7:28
car that looks like that now we can add
7:31
some of the other little we got a copper
7:33
nose cone
7:35
and the little funnel piece that it goes
7:37
on the front
7:38
so this is going to pop in here this
7:40
needs a little bit of adjustment another
7:42
student made that
7:46
and then this copper nose cone this has
7:49
got to be trimmed down yet and stuff
7:53
almost lost it
7:56
me I've already dropped it once and the
8:00
point get all bummed up I'm gonna
8:01
probably make another one on this I made
8:03
this cone probably about four years ago
8:06
so let's take that out just in case but
8:08
you got an idea of what it looks like
8:10
and uh
8:11
it's just an amazing design now we've
8:15
got a couple other panels that'll have
8:18
to be made here these covers for the
8:21
wheels have been done but they need a
8:23
little tune-up and this panel here is
8:26
not that hard to do the hood panel has
8:30
been done so we're going to have the
8:31
front of this done probably in a couple
8:33
months or less
8:34
and it's just going to be an awesome
8:38
looking vehicle
8:40
all right so here's the back end the
8:43
Canadian that came in his name is Martin
8:45
Miller and he did an unbelievable job on
8:48
his first time he ever shaped sheet
8:50
metal too this is 0.63 aluminum uh he
8:54
didn't do the welding he wasn't
8:55
proficient enough in the welding I did
8:57
the welding but all that shaping was
8:59
done by Martin and all the shaping on
9:03
the front was done by Andrew
9:04
a lot of people think oh yeah well Ray
9:07
probably does the whole thing and then
9:08
takes the picture you know no that's not
9:10
the case this is totally student built
9:13
and that's the way I want it so that
9:16
it's a testimony to
9:20
um if the students listen to what my
9:22
instructions are and they follow him to
9:25
a t you'll get an absolute amazing
9:28
results this craft is is a really
9:31
complicated craft if you're coming in at
9:35
from the angle you're going to self
9:36
learn the whole thing it can take you
9:38
years and years and years to self-learn
9:41
but if somebody tells you where all the
9:44
minds are in the Minefield you can walk
9:47
through that field without fear of being
9:49
blown up and this this back end and both
9:53
the front end I think a testimony to
9:55
what I'm saying is true okay so here we
9:59
are back at the front end and uh I just
10:02
wanted to thank Andrew for doing such a
10:05
unbelievably good job and maybe he'll
10:08
come back some other day
10:10
and uh I just want to say goodbye and
10:13
thanks to all the people that keep
10:15
building my channel we're up to 63 000
10:17
subscribers Andrew do you have anything
10:19
to say for final word uh
10:23
no no
10:25
he's he's a better shaper than he is a
10:28
Spoke person
10:30
very very humble so thanks thanks for
10:33
the great job and uh thanks for watching
10:36
Everybody we're going to have a lot more
10:37
installments on this uh 48th Studebaker
10:40
future cop by Virgil exit it's Rachel
10:42
lean from Child Massachusetts thank you
#Hobbies & Leisure
