0:00
What's up my friends? Today we're back and we're talking about wiring a sprinkler system
0:03
Now if you want to know why the heck we're talking about sprinklers, I've got a video you got to go check out. It's the whole story
0:09
And it's a good story. But today we're going to show you the wiring that we're doing
0:13
So this is a little bit more tutorial style. I've got to start out by talking a little bit about sort of the philosophy here
0:18
What I've done is I have run valves to a whole bunch of different sections of this huge garden
0:23
But because I put the valves all around I had to run wires to each individual one. Now normally you do have to run wires to all the valves but
0:30
in a lot of like little backyards and suburban neighborhoods they'll put all the valves in one box
0:34
But I've run sprinkler wire everywhere. You can see I did it while we ran the sprinkler pipe
0:40
So that's all in and I have pipe running to all the valve boxes. Today I want to walk you through kind of the setup and why we put the valve boxes where we did
0:49
But also I'm going to walk you through how to wire up one of those and then show you our cool setup that we have here that is a self-contained unit
0:57
It powers itself and powers the whole brains of the whole system
1:02
So that'll be coming here in this video as well. So for this system right now we have nine valves
1:07
We put a valve out here. This one feeds all of the trees and it's going to be number one
1:11
But as we move kind of clockwise around the garden there's a valve over here and another one over here and it's just
1:18
going to move sort of clockwise and then go down that line. And we're going to go in that order with our valve numbering so that it's really easy
1:24
as we hook up all the wires and then later when we need to program it
1:28
to know exactly which valve goes with which number. Almost can't make that easier to wire. You just shove them in from the bottom
1:36
Doesn't get much better than that. Okay so then I've got my control box
1:41
This is on the outside of this unit here because well it's in an enclosed box
1:45
that's literally made for being able to be outside. All of my wires from all the valves are all coming into this one box
1:52
The white ones just go here where the white goes and the color ones just plug in to the associated number
1:59
So yellow was valve number one so I've got it in spot number one
2:03
And when it's time to program the unit station number one will be whichever wire whichever valve goes to whichever wire
2:11
So station number one for me will be that valve that waters the trees
2:15
And like I said before we're going to kind of work our way clockwise around the garden
2:19
So in the future I actually have a few more spots and I let the wire run all the way down there so I could add future valves
2:26
I'll just keep that same pattern so it's always easy to remember which valve goes to which
2:30
because honestly like nobody remembers this stuff. All right so here was the other problem that I had when I started dreaming up doing this for my dad
2:38
And that is that we don't have power run all the way out here and I didn't want to run a trench all the way from the house and put it in a new circuit just
2:45
to be able to get water to a sprinkler system. So instead I went the lazy route that actually gives us another benefit
2:53

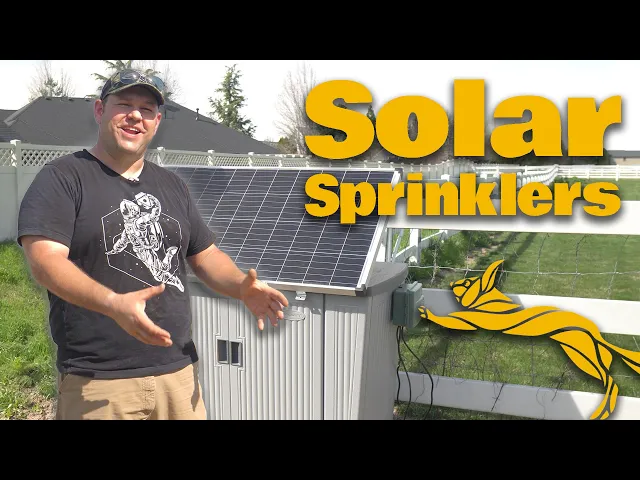

I came up with this entirely like self-contained self-powered unit. It's run by a single 100 watt solar panel which is gonna be more than enough power
3:03
And this panel if we come inside the box and it's the reason for the box here
3:08
this panel runs through a little charge controller and that charges this battery
3:14
I actually had an extra car battery for my Suburban and this is gonna hold plenty of power
3:20
So even if it needs to run at night even if it needs to run when it's been cloudy for a week
3:25
it's got more than enough power. And then coming off the battery it runs to this inverter
3:29
This is just like the kind of inverter you would put like in your car to be able to power it off of like the DC power in your car
3:36
But this is taking the DC power from a 12 volt battery and giving me this 110 volt outlet
3:43
So I can actually take just a regular plug and plug it in here and turn it on
3:47
and it's going to power our sprinkler system from all the way out here
3:52
Now the benefits of this are as you can tell one I didn't have to run power all the way from the house
3:59
But two it's an off-grid system that's not dependent on the utilities which I love right
4:05
Self-reliance is all about not having to depend on everybody else. So now we can run our system that depends on the irrigation district
4:11
without having to depend on the power company. But as we talked about in another video we don't even have to depend on the irrigation district
4:20
Make sure you check out that other video to see how we did that too
