BONUS Cigar Tube Circuit Tester Design - Demonstration
2K views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Make a Cigar Tube Circuit Tester". This video is a demonstration of the the Bonus Cigar Tube Circuit Tester design. You may find all the details on this project and its original design at the following link below. Video for Blog Page: "Make a Cigar Tube Circuit Tester" Page URL: https://motbots.com/make-a-cigar-tube-circuit-tester/ Description: This is a supplemental video for a post made on our website. Website: https://motbots.com #motbots #motivatedrobotics #learnelectronics #circuittester #howto #diy
BONUS Cigar Tube Circuit Tester Design - Breadboard Prototyp...
1K views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Make a Cigar Tube Circuit Tester". This video shows and demonstrates the breadboard prototype circuit for the bonus cigar tube circuit tester design. You may find all the details on this project and its original design at the following link below. Video for Blog Page: "Make a Cigar Tube Circuit Tester" Page URL: https://motbots.com/make-a-cigar-tube-circuit-tester/ Description: This is a supplemental video for a post made on our website. Website: https://motbots.com #motbots #motivatedrobotics #learnelectronics #circuittester #howto #diy #prototype

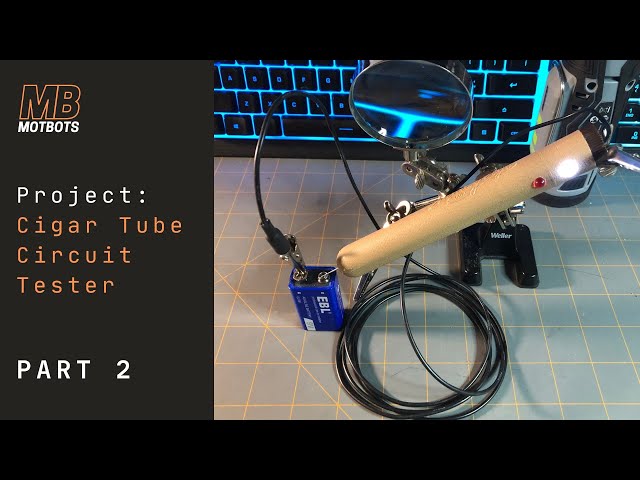

Make a Cigar Tube Circuit Tester - Part 2
1K views · Oct 11, 2024 motbots.com
This is the second video in a two part series of videos that shows you how to make your very own circuit tester. In this video we'll finish up our Cigar Tube Circuit Tester and connect the alligator clip to the black wire probe, insert our paper clip probe and circuit into the cigar tube handle, and then test to make sure our circuit tester works. Get out your components (parts list on website and below) and your solder iron, because we're going to build ourselves a circuit tester! Video for Blog Page: "Make a Cigar Tube Circuit Tester" Project Page and Schematics: https://motbots.com/make-a-cigar-tube-circuit-tester Description: This is video 1 of 2 for the Cigar Tube Circuit Tester Website: https://motbots.com PARTS LIST: 2x 1N4001 Diodes: https://amzn.to/4d9VkRJ 2x 1200 Ohm Resistors: https://amzn.to/3ytuq89 1x White 5mm Diffused LED: https://amzn.to/4dcUK5C 1x Red 5mm Diffused LED: https://amzn.to/4cbabde 1x Alligator Clip: https://amzn.to/3Yu7jVE 1x 2" Paper Clip: https://amzn.to/4chVGUQ 3 feet 18 Gauge Black Stranded Wire: https://amzn.to/3yhGQ32 1x Cigar Tube LINK TO SCHEMATIC: https://motbots.com/make-a-cigar-tube-circuit-tester/#Video_Build_of_The_Circuit_on_a_PCB_Board WHAT IS A DIODE? https://motbots.com/leds/#What_Is_a_Diode FUNDAMENTALS OF ELECTRONICS: LEDs https://motbots.com/leds/ EARNINGS DISCLAIMER: Motbots may earn an affiliate commission if you purchase something through recommended links. #motbots #motivatedrobotics #cigar #cigartube #circuit #circuittester #electronicsproject #soldering #commissionearned
Cigar Tube Circuit Tester - Troubleshooting Your Breadboard ...
519 views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Make a Cigar Tube Circuit Tester". The purpose of this video is to help the individual trying to troubleshoot their breadboard prototype circuit for the Cigar Tube Circuit Tester. One reason why you might be having issues with getting your breadboard circuit to work correctly is because of low power from your power source, such as a battery. This video helps guide you to check your battery source and how to fix your issue. Video for Blog Page: "Make a Cigar Tube Circuit Tester" Page URL: https://motbots.com/make-a-cigar-tube-circuit-tester/ Description: This is a supplemental video for a post made on our website. Website: https://motbots.com #motbots #motivatedrobotics #learnelectronics #circuittester #howto #diy
Make a Cigar Tube Circuit Tester - Part 1
2K views · Oct 11, 2024 motbots.com
This is the first video in a two part series of videos that shows you how to make your very own circuit tester. In this video we'll go from the breadboard prototype detailed on the website (link below) to the PCB board, to make a permanent circuit for our Cigar Tube Circuit Tester. Get out your components (parts list on website and below) and your solder iron, because we're going to build ourselves a circuit tester! Video for Blog Page: "Make a Cigar Tube Circuit Tester" Project Page and Schematics: https://motbots.com/make-a-cigar-tube-circuit-tester Description: This is video 1 of 2 for the Cigar Tube Circuit Tester Website: https://motbots.com PARTS LIST: 2x 1N4001 Diodes: https://amzn.to/4d9VkRJ 2x 1200 Ohm Resistors: https://amzn.to/3ytuq89 1x White 5mm Diffused LED: https://amzn.to/4dcUK5C 1x Red 5mm Diffused LED: https://amzn.to/4cbabde 1x Alligator Clip: https://amzn.to/3Yu7jVE 1x 2" Paper Clip: https://amzn.to/4chVGUQ 3 feet 18 Gauge Black Stranded Wire: https://amzn.to/3yhGQ32 1x Cigar Tube LINK TO SCHEMATIC: https://motbots.com/make-a-cigar-tube-circuit-tester/#Video_Build_of_The_Circuit_on_a_PCB_Board WHAT IS A DIODE? https://motbots.com/leds/#What_Is_a_Diode FUNDAMENTALS OF ELECTRONICS: LEDs https://motbots.com/leds/ EARNINGS DISCLAIMER: Motbots may earn an affiliate commission if you purchase something through recommended links. #motbots #motivatedrobotics #cigar #cigartube #circuit #circuittester #electronicsproject #soldering #commissionearned
Cigar Tube Circuit Tester - Breadboard Prototype Test
756 views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Make a Cigar Tube Circuit Tester". This video shows a demonstration of the working breadboard prototype circuit that was made from the Cigar Tube Circuit Tester schematic provided on motbots.com for this particular project. Video for Blog Page: "Make a Cigar Tube Circuit Tester" Page URL: https://motbots.com/make-a-cigar-tube-circuit-tester/ Description: This is a supplemental video for a post made on our website. Website: https://motbots.com #motbots #motivatedrobotics #learnelectronics #circuittester #howto #diy
Circuit Tester Comparisons - Minimum Voltage Testing
99 views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Make a Cigar Tube Circuit Tester". The purpose of this video is to show a comparison between a typical store bought circuit tester and the cigar tube circuit tester that we've made in our "Make a Cigar Tube Circuit Tester" video series and step-by-step instructions at motbots.com. The testing between the two circuit testers is to see what their minimum voltage readings are. Each are rated for test voltages of between 6V and 24V, but the test in the video shows if it is possible to go in the sub-six-volts range. Video for Blog Page: "Make a Cigar Tube Circuit Tester" Page URL: https://motbots.com/make-a-cigar-tube-circuit-tester/ Description: This is a supplemental video for a post made on our website. Website: https://motbots.com #motbots #motivatedrobotics #learnelectronics #circuittester #howto #diy
Cigar Tube Circuit Tester Demonstration - Switching Polariti...
186 views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Make a Cigar Tube Circuit Tester". This video is meant to demonstrate the cigar tube circuit tester one can learn to make at motbots.com. The way this circuit tester works in the video demonstration is by attaching the alligator clip probe to the negative terminal of a 9V battery. You then touch the paper clip probe at the end of the cigar tube handle to the positive terminal of the battery and then the white LED within the circuit tester's handle lights up, indicating a negative ground reading. Switch the probes around and the red LED lights up, indicating a positive ground reading. Video for Blog Page: "Make a Cigar Tube Circuit Tester" Page URL: https://motbots.com/make-a-cigar-tube-circuit-tester/ Description: This is a supplemental video for a post made on our website. Website: https://motbots.com #motbots #motivatedrobotics #learnelectronics #circuittester #howto #diy
Circuit Tester Demonstration - Switching Polarities
575 views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Make a Cigar Tube Circuit Tester". This video is meant to demonstrate a typical circuit tester one can buy online or in a store. The way the particular circuit tester works in the video is by attaching the alligator clip probe to a negative point or grounding point of a circuit, in the demonstration in the video a 9V battery is used, so the alligator clamp is clamped to its negative terminal. You then touch the pointed probe at the end of the handle to a point in a circuit that has a voltage potential, or in the case of the demonstration in the video, the pointed probe end of the handle of the tool touches the positive terminal of the battery and then the LED within the circuit tester's handle lights up when a voltage potential is detected or is across the two probes of the tool, closing a circuit through the tool. It's also demonstrated that the polarities of the the probes can be exchanged within a circuit to still give a reading from the LED within the tool's handle. Automotive Circuit Tester: https://amzn.to/4fBu8Ni Video for Blog Page: "Make a Cigar Tube Circuit Tester" Page URL: https://motbots.com/make-a-cigar-tube-circuit-tester/ Description: This is a supplemental video for a post made on our website. Website: https://motbots.com EARNINGS DISCLAIMER: Motbots may earn an affiliate commission if you purchase something through recommended links. #motbots #motivatedrobotics #learnelectronics #circuittester #howto #diy #commissionearned
Circuit Tester Demonstration
3K views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Make a Cigar Tube Circuit Tester". This video is meant to demonstrate a typical circuit tester one can buy online or in a store. The way the particular circuit tester works in the video is by attaching the alligator clip probe to a negative point or grounding point of a circuit, in the demonstration in the video a 9V battery is used, so the alligator clamp is clamped to its negative terminal. You then touch the pointed probe at the end of the handle to a point in a circuit that has a voltage potential, or in the case of the demonstration in the video, the pointed probe end of the handle of the tool touches the positive terminal of the battery and then the LED within the circuit tester's handle lights up when a voltage potential is detected or is across the two probes of the tool, closing a circuit through the tool. Automotive Circuit Tester: https://amzn.to/4fBu8Ni Video for Blog Page: "Make a Cigar Tube Circuit Tester" Page URL: https://motbots.com/make-a-cigar-tube-circuit-tester/ Description: This is a supplemental video for a post made on our website. Website: https://motbots.com EARNINGS DISCLAIMER: Motbots may earn an affiliate commission if you purchase something through recommended links. OTHER CONTENT CREATOR VIDEOS ON CIRCUIT TESTERS: How to Use an Automotive Test Light - Quick and Easy (JoeCanDoIt): https://www.youtube.com/watch?v=bmCGgDtCAYA How To Use An Automotive Circuit Tester Pen (Bill of All Trades): https://www.youtube.com/watch?v=UYbqB1lwu50 How To Find Electrical Shorts (Scotty Kilmer): https://www.youtube.com/watch?v=pjXt7_gusgM How to Use an LED Test Light (4DIYers): https://www.youtube.com/shorts/JS3fJ9PbkHE ] #motbots #motivatedrobotics #learnelectronics #circuittester #howto #diy #commissionearned
