0:00
Hello friends Welcome To freeat tutorial
0:02
and in this tutorial we will learn
0:04

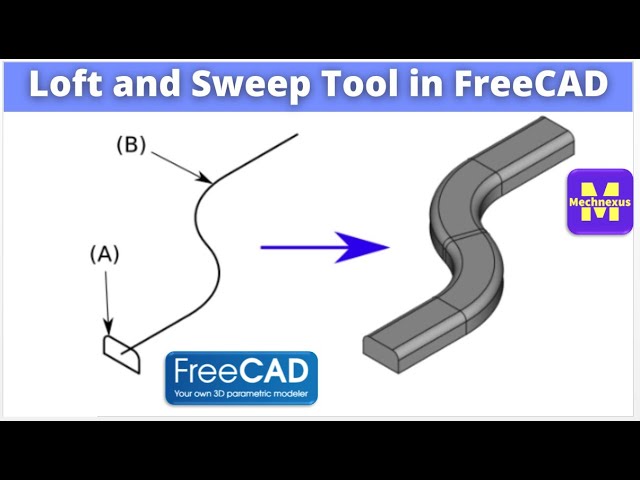

basics of a loft and sweep tool in
0:06

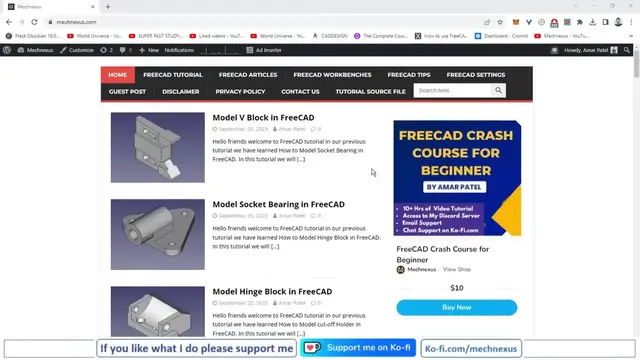

freeat you can also visit my website
0:09
Mech nexus.com where I write articles
0:12
and tutorials on freeat you can also
0:15
download my tutorial Source Prime from
0:17
the here you can also support my work by
0:21
buying my free cat crash course for bner
0:24
it is a very basic level course for the
0:27
beginner user where a beginner user can
0:32
Cad and you can also support my work on
0:35
coffee.com you can buy me a cup of
0:38
coffee you will get my website link and
0:41
my Kofi donation page Link in a video
0:46
description so we will switch to the
0:49
part design workbench and we will create
0:52
a body and we will on our origin
1:00
and uh we will select this XY plane and
1:31
we will select this exit plane and
1:42
path we will draw very rough path and
1:46
then we will constrain it with the
1:53
dimension I off the origin
1:57
plane now I give the dimensions
2:18
160 and this angle let's say
2:23
130 this point to this point let's
2:31
60 uh this we will keep
2:39
100 and this one we will keep
2:43
100 and now we will come out of the
2:55
sketch so this is the basic profile
3:04
increase this height or we will Mak very
3:09
appropriate Let's see we make it
3:19
60 so here uh we have a our profile and
3:25
this is the path now we will insert the
3:28
DAT temp plan so we will click on the
3:33
plane and from here we will select this
3:40
point so Point has been selected so now
3:43
this uh data plane is a
3:47
parallel we will select this
3:50
H and from here we will click on normal
3:53
to H so you can see that a normal to H
3:58
plane has created now we will select
4:02
okay now we will select our dat temp
4:10
sketch now we will draw a
4:15
circle and uh let's say it is a
4:21
15 or we can say 20 now we will close
4:27
it so our bottom diameter
4:32
let's say our bottom diameter was a 50
4:35
so we will make it uh
4:43
35 okay now we will close it now we will
4:47
see the Loft and sweep in a
4:53
freead now we will uh click on the addit
5:00
and from here we will select our
5:03
profile so this is the sketch one means
5:07
first sketch now we will say okay now
5:14
here part two Swip along if you select
5:17
on object and if you select this path so
5:22
that this profile is following this path
5:32
can push our path to go from this
5:37
profile to do that we will delete
5:40
it and we will on our
5:43
sketch now we will again go to the
5:47
addtive pipe and click on the
5:51
sketch and now from here orientation
5:56
method sorry in our transform mode we
6:00
multisection and here on the
6:01
multisection we can add our second
6:04
section which is the this
6:07
one and path to Swip along if we click
6:12
on this then you can see that it has
6:16
been following on our second
6:22
profile so this is the very basic
6:25
tutorial how to use the swep path in
6:30
in fact it is very easy to customize it
6:40
path here if I add some fillet here then
6:45
it will looks good so I will go to the
6:49
fillet and I will add some
7:04
Dimension we will const later so you can
7:07
see that it has been updated so this is
7:09
the very basic tutorial about how to use
7:17
freead and uh if I wanted to just use
7:21
the Loft then I can delete it and I will
7:26
sketch and I will off this dat temp
7:29
plate if I select this profile and this
7:31
profile and if I click on the Loft so it
7:36
will be Loft without this path so I will
7:40
say okay so we have seen the swep tool
7:45
and Loft tool in the same tutorial so
7:48
this is all about this tutorial
